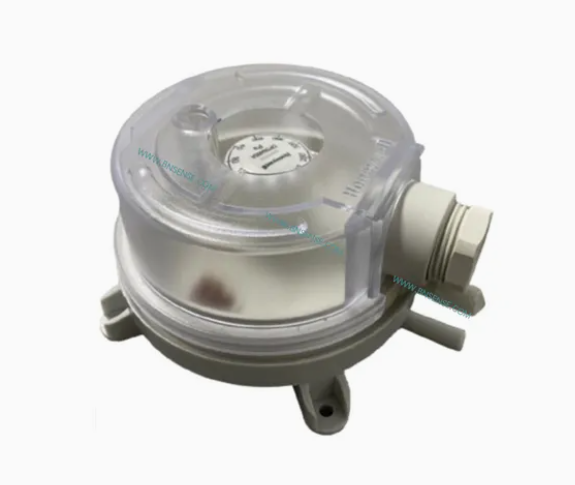

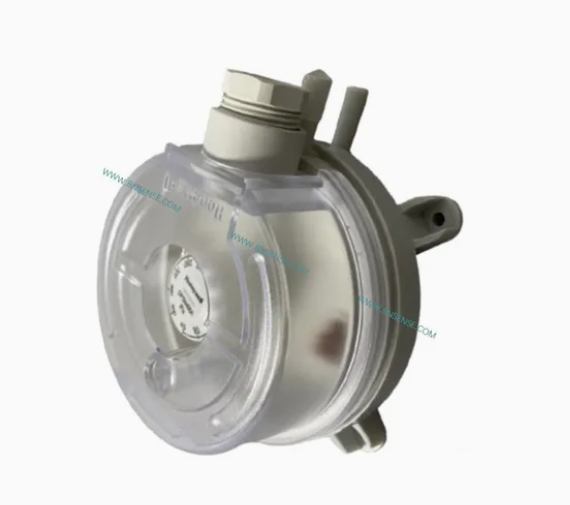

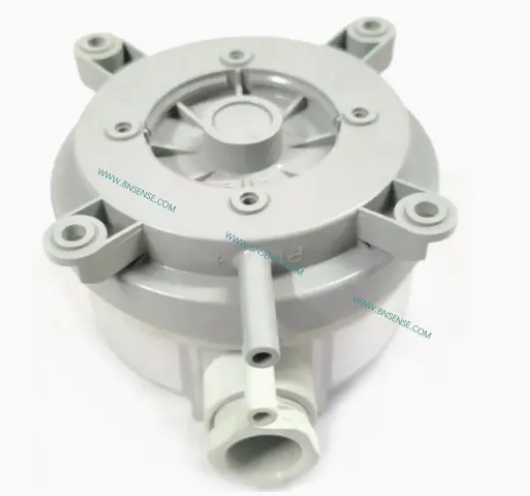

DPSN2500A
Product Description
The Honeywell DPSN Series Air Differential Pressure Switch can be used to monitor the status of filters, fans, and air flow in air ducts. A knob is included on the top of the pressure switch so the pressure value of the application under monitoring can be set within the range as such accuracy will be enhanced.
Special Features
• Various ranges available
• Long life cycle
• Easy to installSpecifications
| Max. allowable working pressure (MAWP) | 10000Pa |
| Accuracy | ≤15% |
| Pressure medium | Air, non-flammable gases, non-corrosive gases |

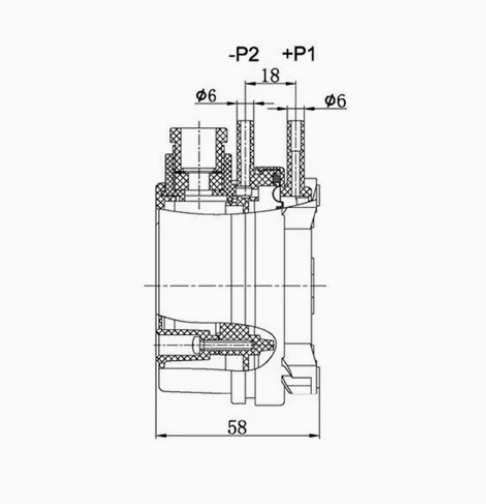

| Pressure connections | 2× plastic tubes, outside diameter: 6.0 mm |
| Switching capacity | 1.5A, (0.4A)/250VAC |
| Mechanical lifecycle | >1 million cycles |
| Allowable working temp. | -20°C to +85°C |
| Storage temp. | -40°C to +85°C |
| Electrical connections | AMP connectors or screw terminals |
| Membrane material | Silicone |
| Conduit entry | CM-M20 x 1.5 |
| Protection class | IP54 |
| Certificates | CE |
| Included accessories | 2× Plastic tube, 5× Screw, 2m PVC pressure hose, L-shaped mounting bracket Order Information |
| SKU | DifferentialPressure Range | Switching PressureDifference(Hysteresis) | |
| DPSN200A | 20-200Pa | 10Pa | |
| DPSN400A | 40-400Pa | 20Pa | |
| DPSN1000A | 200-1000Pa | 100Pa | |
| DPSN2500A | 500-2500Pa | 150Pa | |
