C7915A1010/U

Product Description

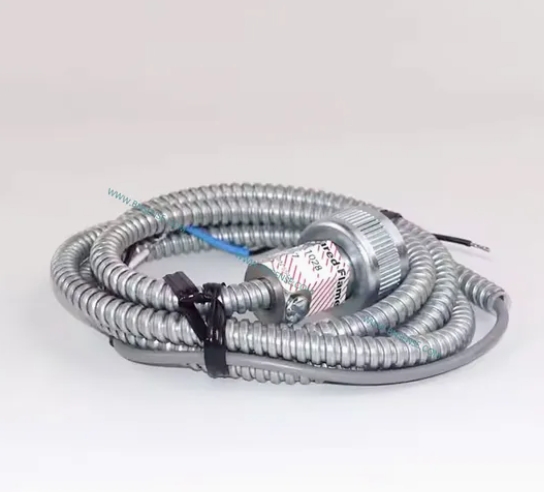

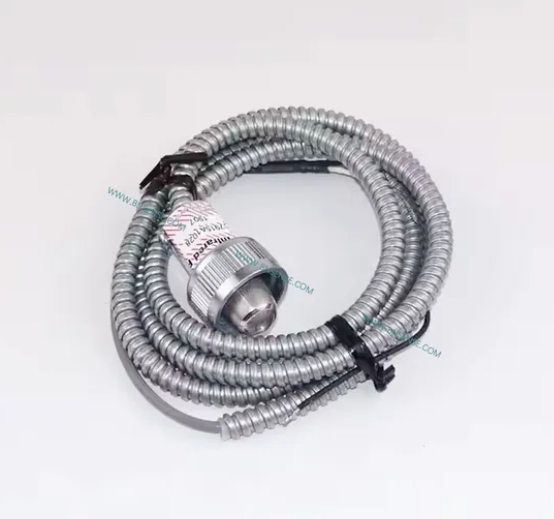

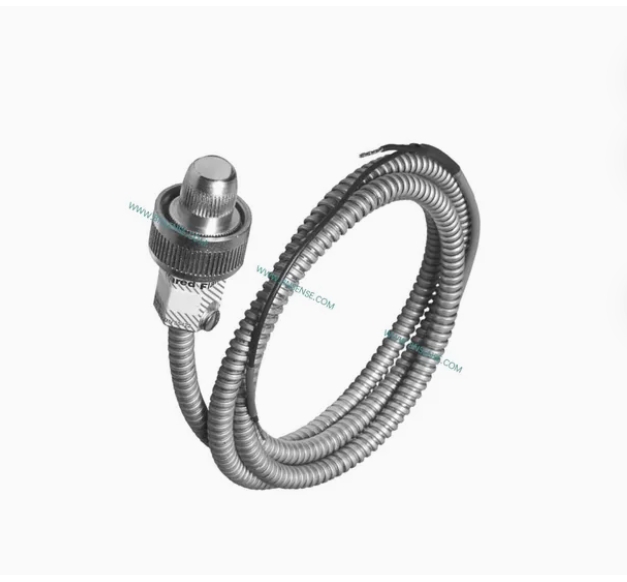

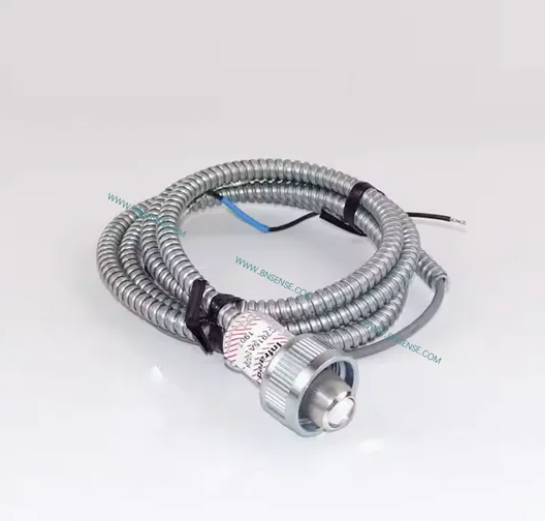

The C7915A Flame Detector includes a lead sulfide photocell that is sensitive to the infrared radiation emitted by the combustion of fuels such as natural gas, oil, and coal.
Features & Benefits:

• Particularly suitable for combination or dual-fuel applications.• When installed properly, can supervise the pilot flame and/ or the main burner flame.• Mounts easily on a standard 3/4 inch sight pipe.• The infrared sensor plugs into an electrical socket in the C7915A assembly and is field replaceable.• The lead sulfide photocell's sensitivity to infrared radiation is compatible with a wide range of flame supervisory applications.• Flexible metal cable protects and electrically shields the detector coaxial cables.• Accessories available include a heat block, seal-off adapter, reducer bushing, and orifice plate.• Immune to x-ray testing.

STANDARD MODELS

MODELS: See Table 6 for flame safeguard controls and associated amplifiers.

DETECTOR RESPONSE: Responds to infrared radiation with wavelengths between 0.75 and 1.0 micron.

LEAD SULFIDE PHOTOCELL: Photo conductor resistance decreases as incident radiant energy increases.

AMBIENT TEMPERATURE RATING: -40°F to 125°F (-40°C to 52°C) maximum at the lead sulfide photocell.

MOUNTING:

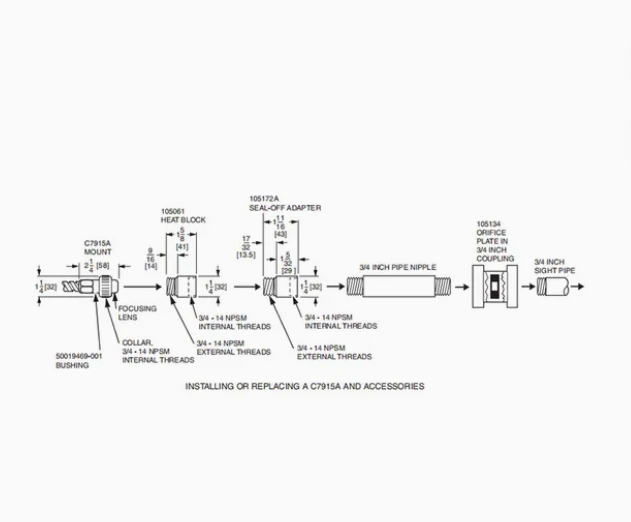

C7915A Mount-knurled collar with 3/4-14 NPSM internal threads for mounting on a standard 3/4 in. pipe (see Fig. 1). 32007255-001 Lead Sulfide Photocell-two leads for inserting into socket in C7915A

a With 0.125 in. (3.175 mm) diameter hexagonal orifice to reduce the detector field of view.

b To insulate the detector from sight pipe temperatures higher than -40°F-125°F (-40°C-52°C) and up to 250°F (121°C).

c To mount the detector on a 1/2 in. sight pipe, specifically to replace Fireye™ lead sulfide infrared flame detectors.

WIRING CONNECTIONS

Nominal 48 in. (1.22 m) coaxial cables-rated for 194°F (90°C); terminated-one blue and one white. Coaxial cables enclosed in flexible metal cable-3/8 in. (9.6 mm) maximum outer diameter.

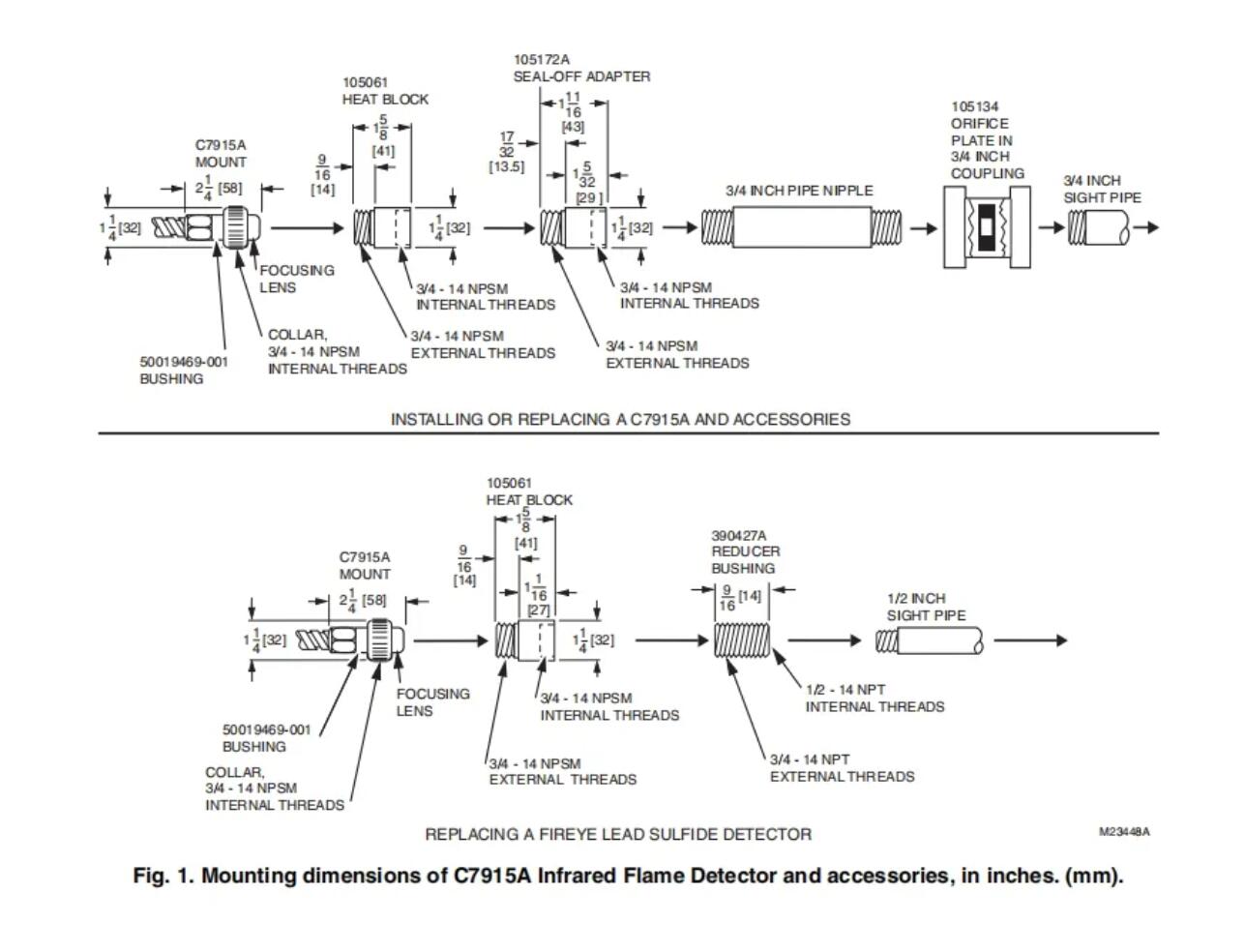

DIMENSIONS: See Fig. 1.

SIL 3 CAPABLE:

The C7915 when used with a R7852B Ampli-check amplifier in Relay Module EC7810A, 20A, 30A, 40L, 50A; RM7800[E,G,L,M], 30A, 38[A,B,C], 40[E,G,L,M] 50A, 90[A,B,C,D], 97[A,C], 98A is SIL 3 Capable in a properly designed Safety Instrumented System. See form number 65-0312 for Certificate Agreement.

APPROVALS:

Underwriters Laboratories Inc. listed: File No. MP268.Canadian Standards Association certified: Master file LR- 95329-1.

Factory Mutual approved.

Swiss Re (formerly Industrial Risk Insurers): acceptable.

IMPORTANT:

Caution, stickers, form 96-610, are included with the C7915A. Underwriters Laboratories Inc. requires that this sticker be placed on any junction box in which C7915A coaxial cables are connected. The sticker prohibits routing any other wiring through the junction box.

REPLACEMENT PARTS:

32007255-001 Lead Sulfide Photocell 50019469-001 Bushing with Focusing Lens 105061 Heat Block to insulate the detector from sight pipe temperatures higher than 125°F (52°C) and up to 250°F

(121°C).

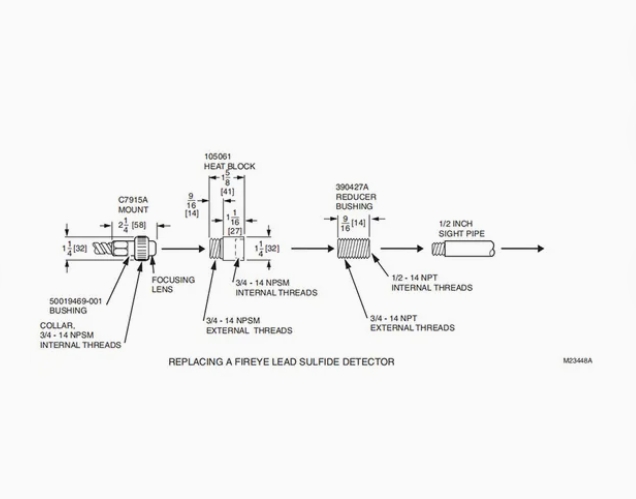

390427A Reducer Bushing, to mount the detector on a 1/2 in. sight pipe; specifically to replace Fireye™ lead sulfide infrared flame detectors.

ACCESSORIES:

105172A Seal-Off Adapter; with glass window to prevent hot gases from reaching the lead sulfide photocell. 118367A Swivel Mount; provides adjustable positioning of the

C7915A.

Hookup Cable-R1298020; 2-wire, heat- and moisture-resistant, No. 20 AWG, Teflon (TFE) insulated; rated up to

400°F (204°C) for continuous duty; tested for operation up to 600 volts and breakdown up to 7500 volts.
