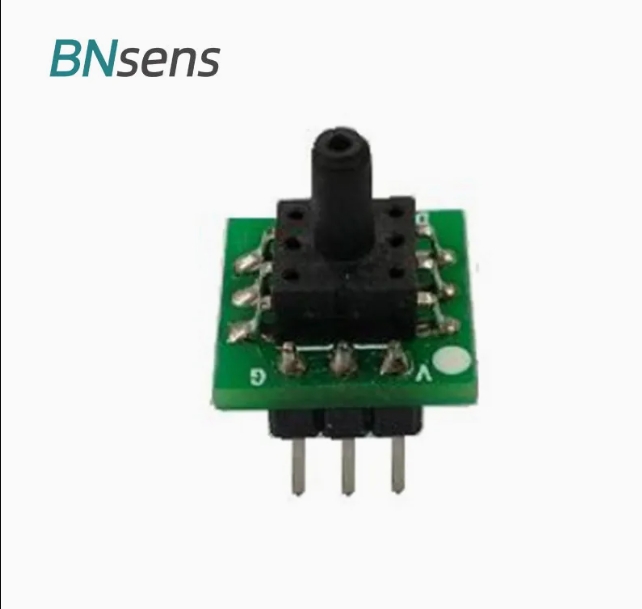

BLWP9xxxGD board mount pressure sensor
DESCRIPTION ：

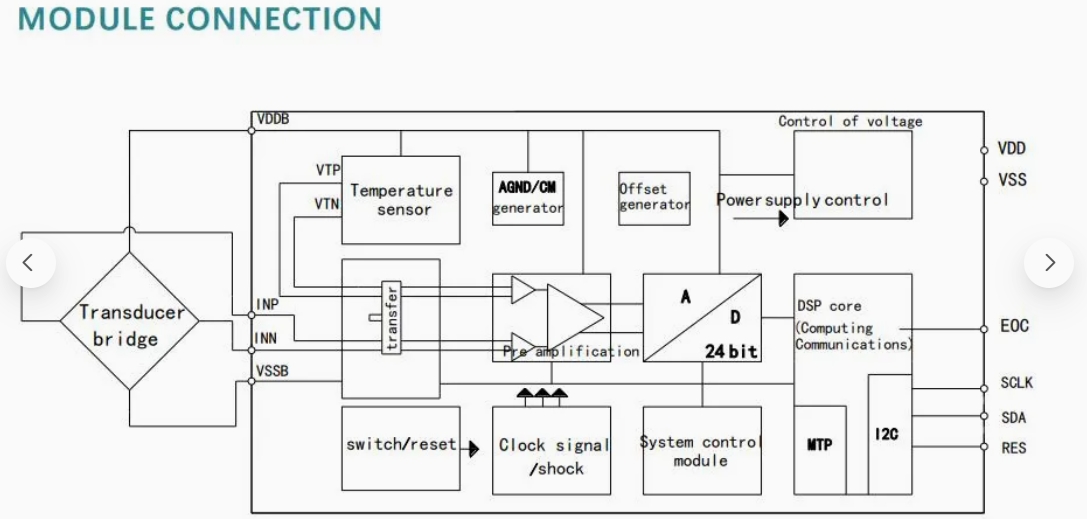

BLWP9xxxGD is a new type of pressure transmitter module, which can provide both temperature and pressure output. The module integrates high performance sensitive pressure sensor and special processing circuit on the same PCB board, with high precision and high reliability. The sensor processing circuit is integrated in the internal noise reduction module to achieve strong anti-interference ability of the sensor performance;
At the same time, the sensor integrates the high precision temperature sensor, and adopts the unique algorithm to realize the temperature compensation of the sensor.
CHARACTERISTICS ：
1、Measuring range: -100kPa~0kPa, -40kPa~0kPa, -10kPa~0kPa，0kPa~10kPa, 0kPa~40kPa, 0kPa~100kPa, 0kPa~500kPa, etc (gauge pressure, range can be customized)
2、High accuracy
3、Modular digital output pressure sensor
4、High stability
5、Good consistency
PREFORMANCE ：
| Parameter | Minimum | Typical | Maximum | Unit | Note |
| Supply voltage | 1.68 | 3.3 | 3.6 | Vdc | |
| Working curren | 1 | mA | |||
| Current of sleep | 20 | nA | |||
| ADC | 24 | bit | |||
| Accuracy (25℃) | ±1 | ±1.5 | %FS | ||
| Accuracy (0℃~50℃) | ±2.5 | %FS | |||
| Response time | 5 | 30 | ms | ||
| Stability of | -1 | 1 | %FS /yr | ||
| Operating temperature | -40 | +125 | ℃ | ||
| Accuracy (1) | 1 | ℃ |
(1) Detection accuracy of ambient temperature when the sensor is in a constant temperature field;

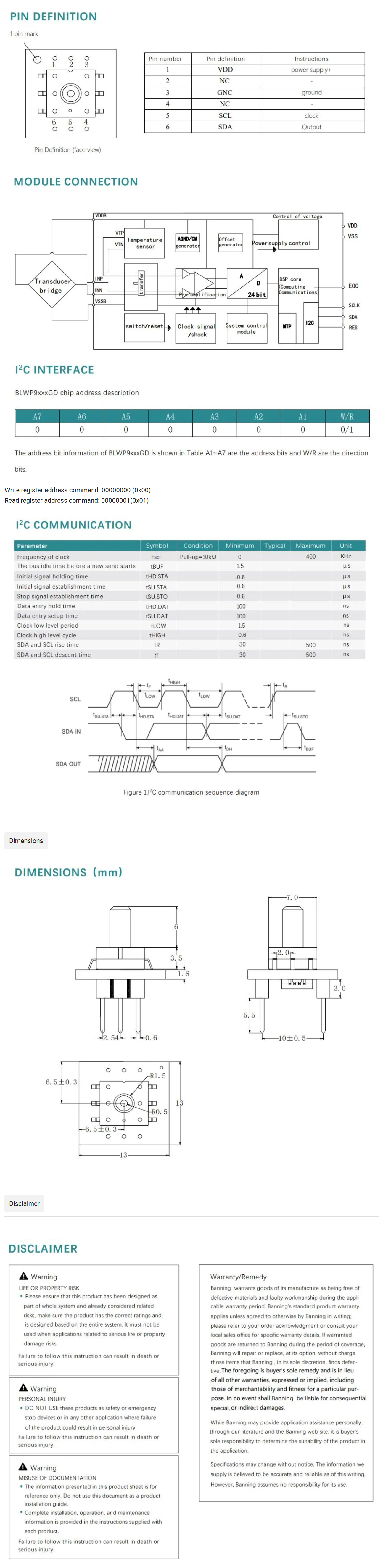

BLWP9xxxGD board mount pressure sensor reference↓
