BLWLP5xxxXD board mount pressure sensor
Details
DESCRIPTION：
BLWLP5xxxXD series integrated low pressure and high precision pressure sensor, the high performance MEMS pressure sensitive chip and special conditioning chip are packaged in the structure of dual gas nozzle SOP14, the two gas path structure of the pressure reference each other, reduce the impact of the environment on the output.
BLWLP5xxxXD adopts unique algorithm to realize multi-order temperature compensation for the sensor, and output in the form of digital IIC. Gauge pressure or differential pressure intake products are available.
CHARACTERISTICS ：
- Measuring range: -1kPa~1kPa, -2.5kPa~2.5kPa, -5.5kPa~
- 5.5kPa, -10kPa~10kPa, -40 kPa~40kPa, etc
- Pressure type: gauge pressure, differential pressure
- Output form: IIC
- High accuracy
- Calibrated compensation
PREFORMANCE ：
| Parameter | Minimum | Typical | Maximum | Unit | Note |
| Supply voltage | 1.8 | 3.3 | 3.6 | Vdc | |
| Working curren | 1 | mA | |||
| Current of sleep | 20 | nA | |||
| ADC | 24 | bit | |||
| Accuracy | ±1 | %FS | |||
| Response time | 5 | 30 | ms | ||
| Temperature of compensation | -20 | 80 | ℃ | ||
| Operating temperature | -40 | 85 | ℃ | ||
| Storage temperature | -40 | 120 | ℃ | ||
| Temperature output interval | -40 | 85 | ℃ | ||
| Temperature accuracy | 1 | ℃ | @-20~80℃ |

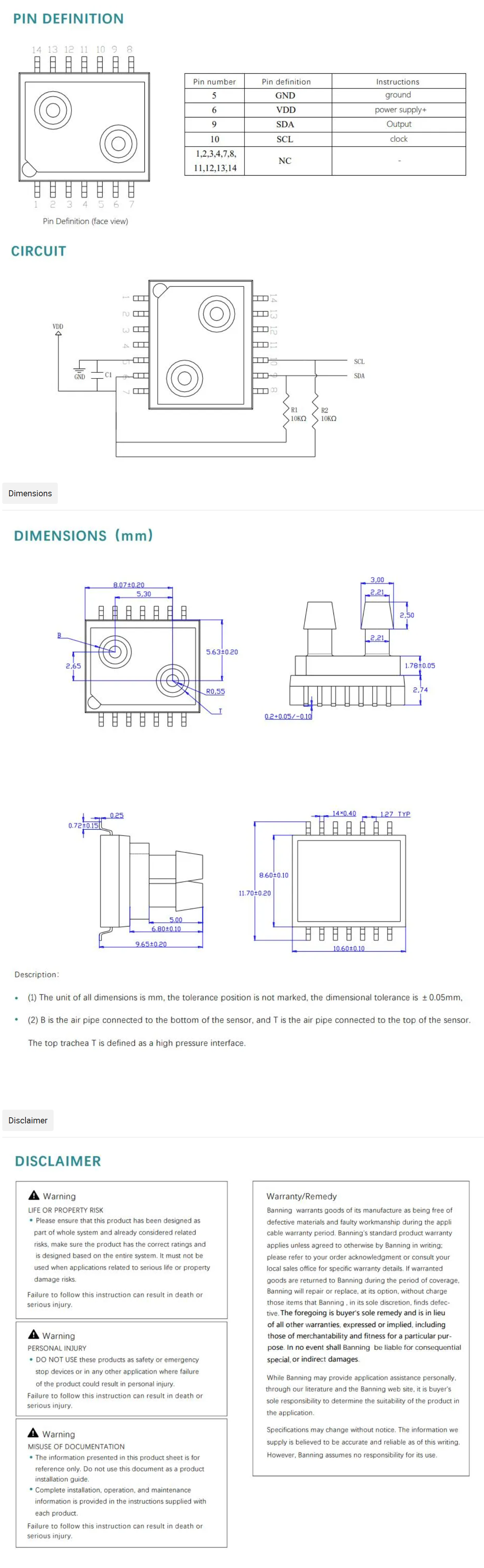

BLWLP5xxxXD board mount pressure sensor reference↓
