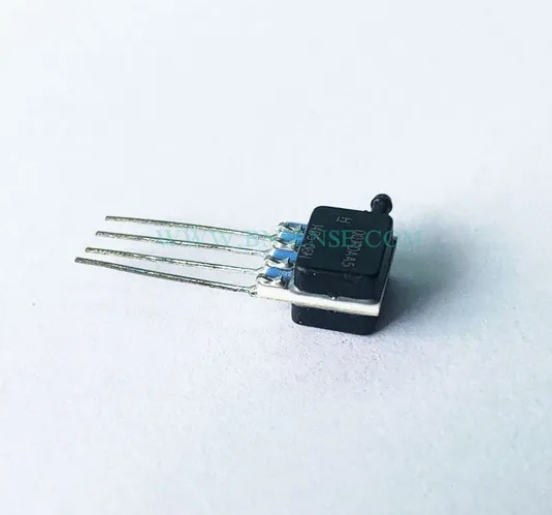

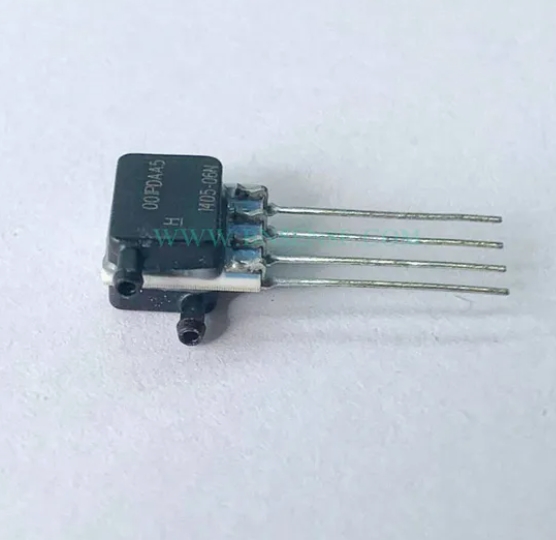

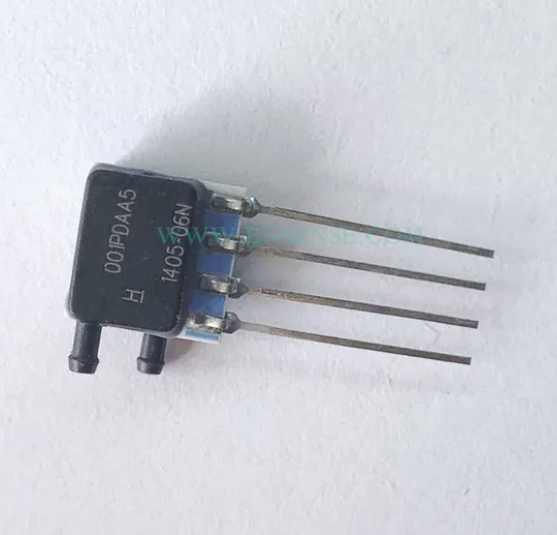

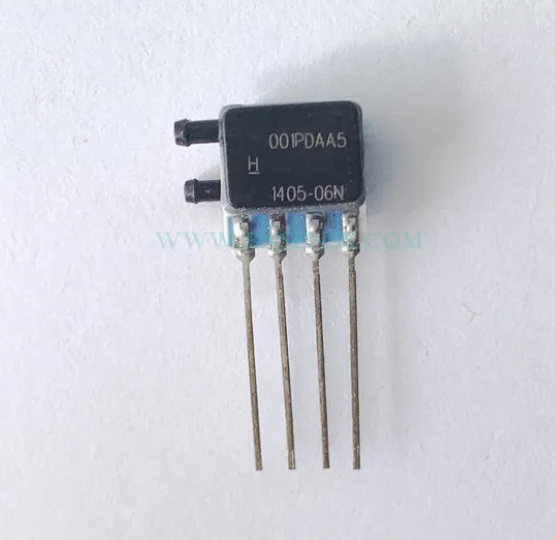

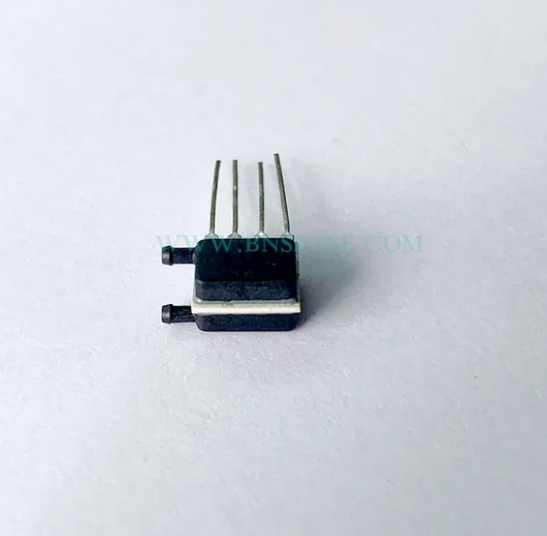

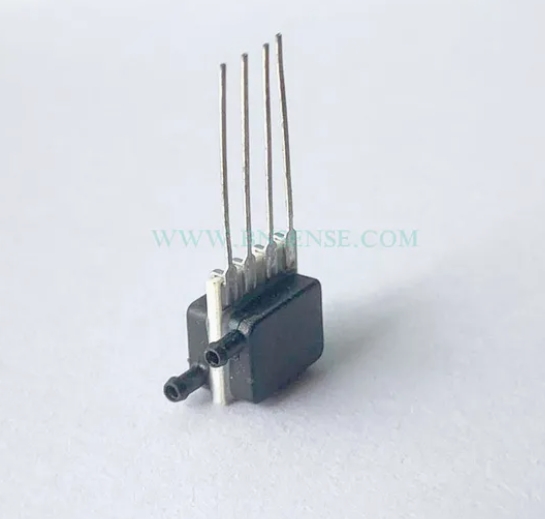

SSCSRRN001PDAA5
Product Description
The TruStability® Standard Accuracy Silicon Ceramic (SSC) Series is a piezoresistive silicon pressure sensor offering a
ratiometric analog output for reading pressure over the specified full scale pressure span and temperature range. The SSC Series is fully calibrated and temperature compensated for sensor offset, sensitivity, temperature effects, and non-linearity using an on-board Application Specific Integrated Circuit (ASIC). Calibrated output values for pressure are updated at approximately 1 kHz.
The SSC Series is calibrated over the temperature range of -20 °C to 85 °C [-4 °F to 185 °F]. The sensor is characterized
for operation from a single power supply of either 3.3 Vdc or 5.0 Vdc.
| Model NO. | SSCSRRN001PDAA5 |
| Pressure Type | Differential |
| Package | SIP (Single Inline Pin) |
| Operating Pressure | ±1 psi |
| Supply Voltage | 5.0 Vdc |
| Operating Temperature Range | -40°C to +85°C |
| Trademark | Honeywell |
| Certification | CE |
| Product Category | Board Mount Pressure Sensors |
| Pressure Port | Dual radial barbed ports, same side |
| Accuracy | 0.25 %FSS BFSL |
| Output Type | Analog voltage |
| Transport Package | Carton |
| Origin | China |

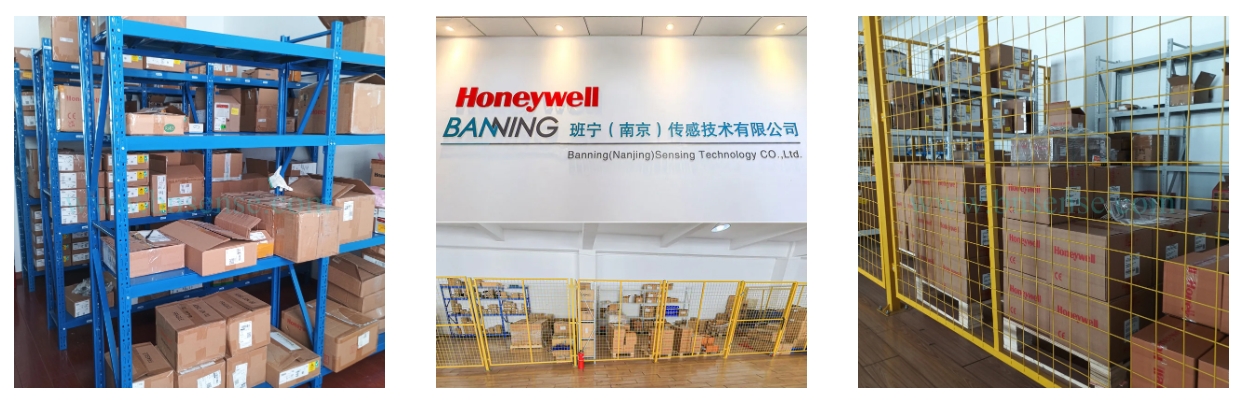

BNSENSE Co., Ltd., located in the core area of pukou new district. Banning is a high-tech enterprise specializing in the development, manufacture and trade of sensor products. A group of excellent domestic technical experts who are excellent in automation, electronic, machinery, computer and many other fields is gathered here. All staffs have college degree or above, using the international first-class management standard and 6 sigma quality system. Main products are pressure, liquid level, flow, current, switches, etc. Company's customers are throughout the country, some products have been exported to Japan, South Korean, Southeast Asia and other countries. BNSENSE Co., Ltd is also an official authorized disitributor of Honeywell in China.
