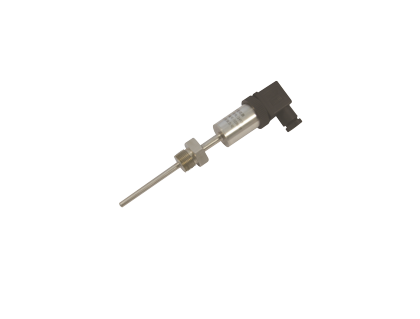

T202 Temperature Transmitter

T202 integrated temperature transmitter is used to measure the temperature of the measured medium by the characteristic that the resistance value of platinum resistance changes with the temperature and presents a certain function relationship.The product is composed of temperature sensor, compensation circuit and conversion circuit, which has the advantages of stable performance, high sensitivity and strong reliability.The product adopts all-welded structure and high-strength shell, which is widely used in the automatic temperature measurement and control system of petroleum machinery, chemical machinery, pump and compressor, electric power, boiler and natural gas.

Features:

1. Stainless steel high strength shell structure, impact resistance, high pressure resistance

2. High precision, high stability and strong anti-interference ability

3. A variety of connections, a variety of output signals

4. Easy installation, long-term stable work

4. Quick response

6. It can be customized according to customer requirements

Electrical parameters

Scale range-50℃~100℃
Power supply24V
Output signal4~20mA
Accuracylevel 0.5
Sensitive elementPt100
Insulation resistance100MΩ/250VDC
Long-term stability≤0.2%FS/year
Thermal response time≤30s
DiameterΦ8mm(Special requirements are negotiable)
Enclosure protectionIP65
Work environment(1)ambient temperature:-40℃~85℃
(2)relative   humidity:0~95%RH
(3)mechanical   vibration:f≤55HZ,amplitude<0.15mm
(4)consumed   power:<0.5W
