2106B1200
Product Description

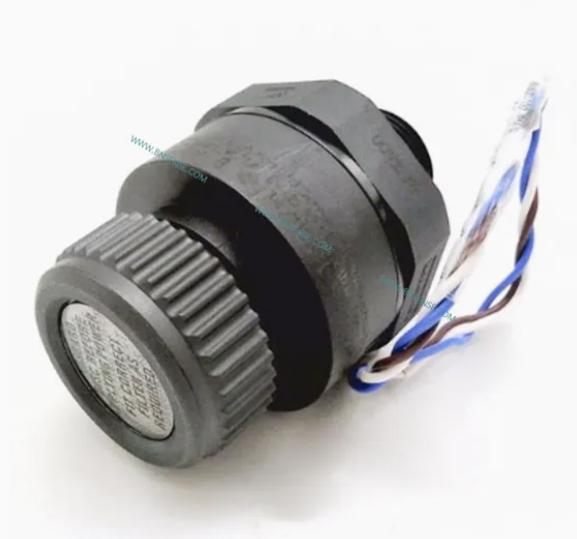

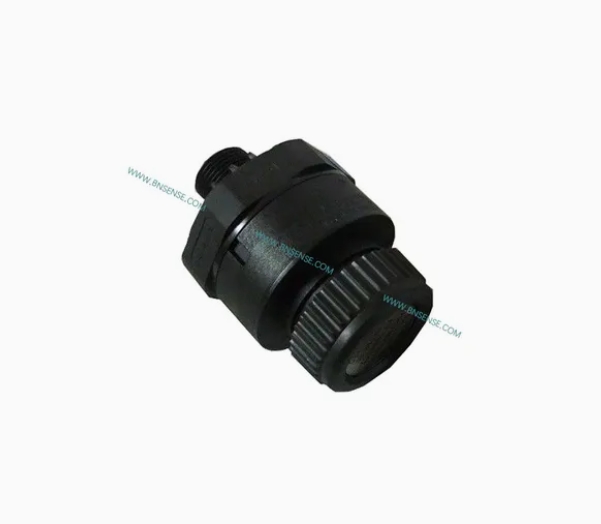

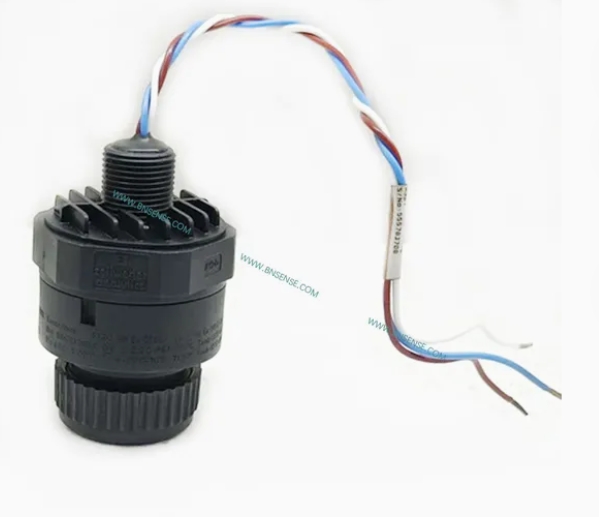

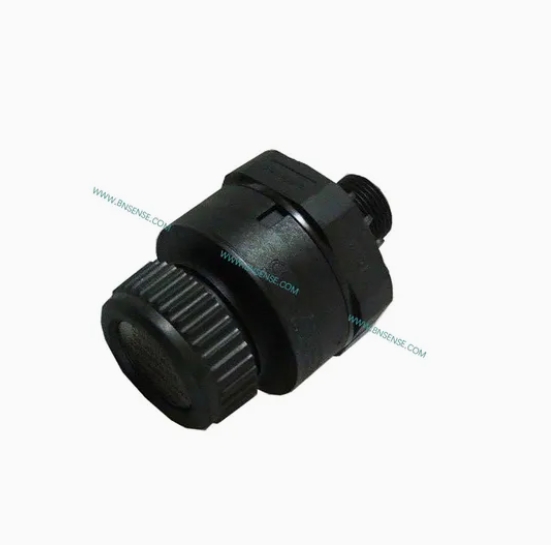

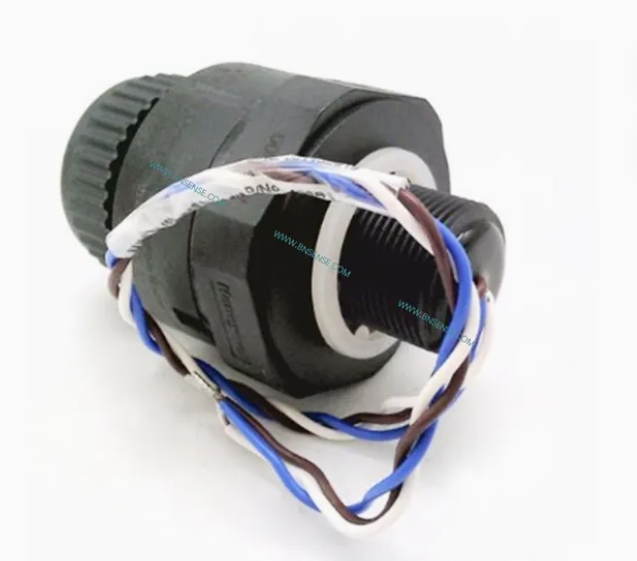

Sensepoint Gas DetectorThe Sensepoint range of Flammable, Toxic and Oxygen Gas Detectors offer users a high quality, low cost solution to their industrial gas monitoring needs.The Sensepoint range of Flammable, Toxic and Oxygen Gas Detectors offer users a high quality, low cost solution to their industrial gas monitoring needs. Installation in potentially explosive atmospheres is made by the use of a suitable Ex d or Ex e approved junction box. The industry standard outputs from Sensepoint are connected to either a choice of Honeywell Analytics controllers or 3rd party DCS/ PLC systems. Both flammable and toxic versions are certified to the latest ATEX/ IECEx safety and performance standards.

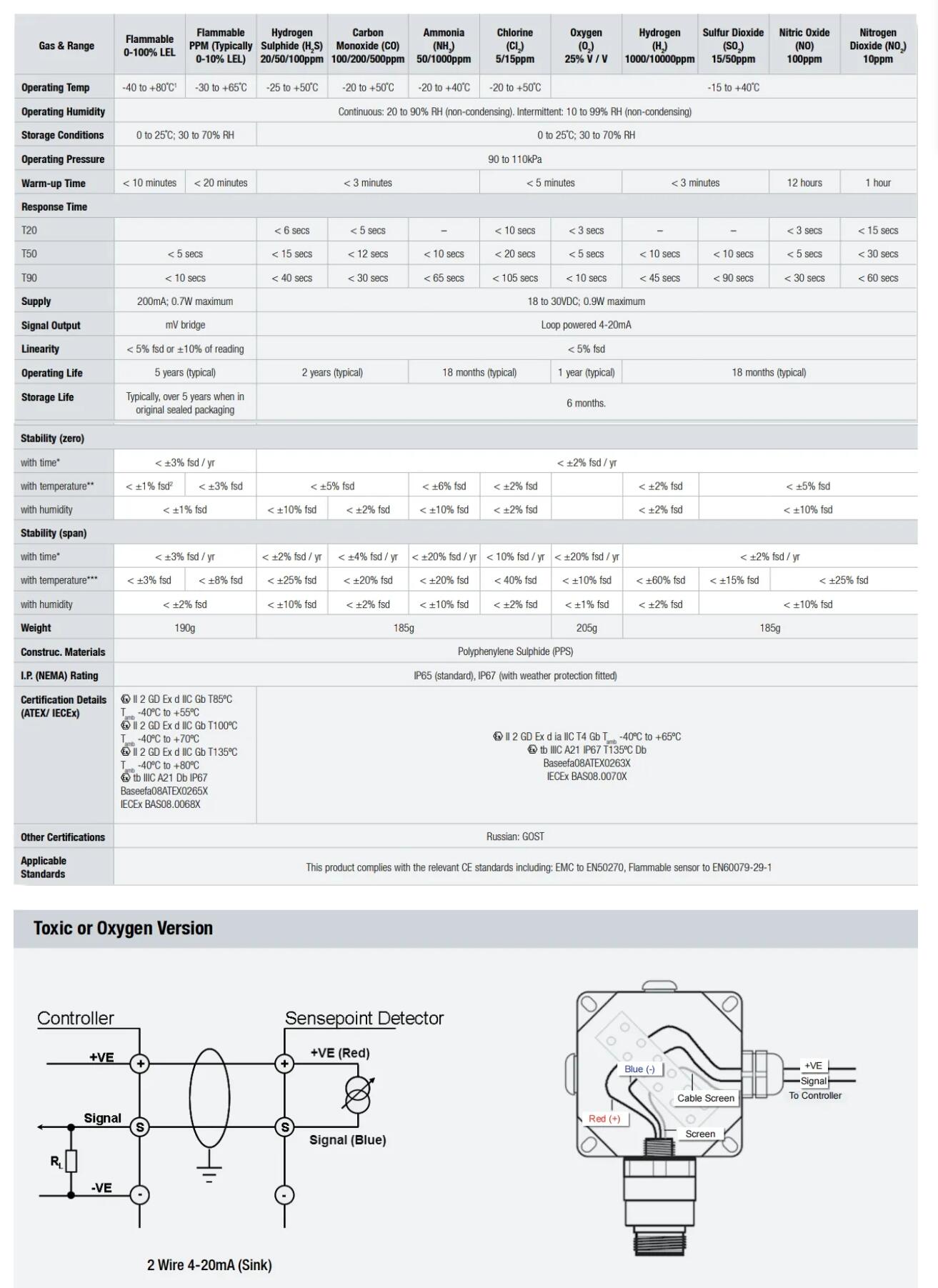

The flammable detector is available in either % LEL or PPM detection range versions and provides an industry standard mV bridge output. Typical life expectancy is greater than 5 years, after which the detector is simply replaced with a new one. The toxic detectors are supplied pre calibrated for easy installation and provide an industry standard 2 wire 4-20mA loop output. User connections are Ex d, while front end Intrinsic Safety (IS) design allows for easy exchange of the replaceable sensor while powered. IS design also removes the need for a sinter enabling very fast speed of response and detection of 'sticky' gases such as Chlorine and Ammonia.Features & Benefits:
- Flammable, Toxic and Oxygen versions available
- High performance, low cost
- Suitable for new and retro fit applications
- SurecellTM electrochemical sensors
- Poison resistant catalytic bead
- Fast and reliable
- Typical 2 to 5 years operational life
- IP65/67 for use in harsh environmentsCertifications:
- ATEX/IECEx Certified
Ordering InformationAccessories
| 00780-A-0100 Term Hsg - Bartec DE1155 With Continuity Plate, 1 x 25mm - 3 x 20mm Entries - ATEX Approved | |
| 00780-A-0160 Right Angle Mounting Bracket For Ceiling Mounting | |
| 02000-A-1635 Series 2000 Weather Housing Use With Toxic Sensor | |
| 02000-A-1640 Series 2000 Weather Housing use With Flammable Sensor | |
| 02000-A-1642 Series 2000 Collecting Cone Use With Flammable Sensor | |
| 02000-A-1645 Series 2000 Calibration Flow Housing Assembly (Flamand Toxic) | |
| 02000-A-3120 Series 2000 Flow Housing Assembly Plastic | |
| 2106B1110 Catalytic Bridge To 4-20mA Converter | |
| 2106B2114 Toxic Calibration Kit including Calibration Cover, Removal Tool, Potentiometer Adjustment Tool | |
| 2106D2055 M36 / M40 Thread Adaptor | |
| 225-262-138 Cable Gland And Caps, 20mm, Nylon |
Spares
| 2106B1545 | O2 Electrochemical Cell Exchange Kit |
| 2106B1546 | SO2 Electrochemical Cell Exchange Kit |
| 2106B1547 | Cl2 Electrochemical Cell Exchange Kit |
| 2106B1548 | CO Electrochemical Cell Exchange Kit |
| 2106B1549 | H2S Electrochemical Cell Exchange Kit |
| 2106B1594 | NO Electrochemical Cell Exchange Kit |
| 2106B1595 | NH3 0-1000ppm Electrochemical Cell Exchange Kit |
| 2106B1596 | NH3 0-50ppm Electrochemical Cell Exchange Kit |
| 2106B1597 | H2 0-1000ppm Electrochemical Cell Exchange Kit |
| 2106B1598 | H2 0-10000ppm Electrochemical Exchange Kit |
| 2106B1599 | NO2 0-10ppm Electrochemical Exchange Kit |
Sensepoint Combustible

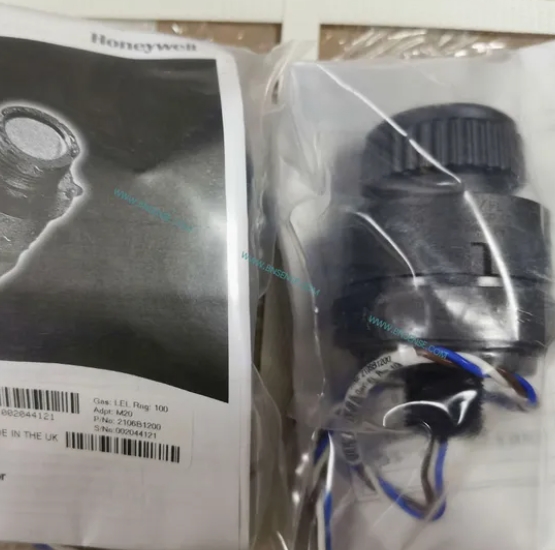

| 2106B1200 | Sensepoint 0-100% LEL Flammable Sensor M20 |
| 2106B1201 | Sensepoint 0-100% LEL Flammable Sensor M25 |
| 2106B1202 | Sensepoint 0-100% LEL Flammable Sensor M26 |
| 2106B1203 | Sensepoint 0-100% LEL Flammable Sensor M26 (VQ1AB pellistor) |
| 2106B1204 | Sensepoint 0-100% LEL Flammable Sensor ¾"NPT |
| 2106B1205 | Sensepoint ppm (0-10% LEL) Flammable Sensor M20 |
| 2106B1209 | Sensepoint ppm (0-10% LEL) Flammable Sensor ¾"NPT |
Sensepoint Toxic
| 2106B1400 | Sensepoint H2S 0-20 ppm Toxic Sensor M20 |
| 2106B1401 | Sensepoint H2S 0-50 ppm Toxic Sensor M20 |
| 2106B1402 | Sensepoint H2S 0-100 ppm Toxic Sensor M20 |
| 2106B1500 | Sensepoint H2S 0-20 ppm Toxic Sensor M25 |
| 2106B1501 | Sensepoint H2S 0-50 ppm Toxic Sensor M25 |
| 2106B1502 | Sensepoint H2S 0-100 ppm Toxic Sensor M25 |
| 2106B1700 | Sensepoint H2S 0-20 ppm Toxic Sensor ¾"NPT |
| 2106B1701 | Sensepoint H2S 0-50 ppm Toxic Sensor ¾"NPT |
| 2106B1702 | Sensepoint H2S 0-100 ppm Toxic Sensor ¾"NPT |
| 2106B1405 | Sensepoint CO 0-100 ppm Toxic Sensor M20 |
| 2106B1406 | Sensepoint CO 0-200 ppm Toxic Sensor M20 |
| 2106B1407 | Sensepoint CO 0-500 ppm Toxic Sensor M20 |
| 2106B1505 | Sensepoint CO 0-100 ppm Toxic Sensor M25 |
| 2106B1506 | Sensepoint CO 0-200 ppm Toxic Sensor M25 |
| 2106B1507 | Sensepoint CO 0-500 ppm Toxic Sensor M25 |
| 2106B1705 | Sensepoint CO 0-100 ppm Toxic Sensor ¾"NPT |
| 2106B1706 | Sensepoint CO 0-200 ppm Toxic Sensor ¾"NPT |
| 2106B1707 | Sensepoint CO 0-500 ppm Toxic Sensor ¾"NPT |
| 2106B1410 | Sensepoint Cl2 0-5 ppm Toxic Sensor M20 |
| 2106B1411 | Sensepoint Cl2 0-15 ppm Toxic Sensor M20 |
| 2106B1510 | Sensepoint Cl2 0-5 ppm Toxic Sensor M25 |
| 2106B1511 | Sensepoint Cl2 0-15 ppm Toxic Sensor M25 |
| 2106B1711 | Sensepoint Cl2 0-15 ppm Toxic Sensor ¾"NPT |
| 2106B1413 | Sensepoint NH3 0-50 ppm Toxic Sensor M20 |
| 2106B1414 | Sensepoint NH3 0-1000 ppm Toxic Sensor M20 |
| 2106B1415 | Sensepoint NH3 0-100 ppm Toxic Sensor M20 |
| 2106B1513 | Sensepoint NH3 0-50 ppm Toxic Sensor M25 |
| 2106B1514 | Sensepoint NH3 0-1000 ppm Toxic Sensor M25 |
| 2106B1515 | Sensepoint NH3 0-100 ppm Toxic Sensor M25 |
| 2106B1713 | Sensepoint NH3 0-50 ppm Toxic Sensor ¾"NPT |
| 2106B1714 | Sensepoint NH3 0-1000 ppm Toxic Sensor ¾"NPT |
| 2106B1715 | Sensepoint NH3 0-100 ppm Toxic Sensor ¾"NPT |
| 2106B1416 | Sensepoint H2 0-1000 ppm Toxic Sensor M20 |
| 2106B1417 | Sensepoint H2 0-10000 ppm Toxic Sensor M20 |
| 2106B1516 | Sensepoint H2 0-1000 ppm Toxic Sensor M25 |
| 2106B1517 | Sensepoint H2 0-10000 ppm Toxic Sensor M25 |
| 2106B1716 | Sensepoint H2 0-1000 ppm Toxic Sensor ¾"NPT |
| 2106B1717 | Sensepoint H2 0-10000 ppm Toxic Sensor ¾"NPT |
| 2106B1418 | Sensepoint NO 0-100 ppm Toxic Sensor M20 |
| 2106B1518 | Sensepoint NO 0-100 ppm Toxic Sensor M25 |
| 2106B1718 | Sensepoint NO 0-100 ppm Toxic Sensor ¾"NPT |
| 2106B1420 | Sensepoint SO2 0-15 ppm Toxic Sensor M20 |
| 2106B1421 | Sensepoint SO2 0-50 ppm Toxic Sensor M20 |
| 2106B1520 | Sensepoint SO2 0-15 ppm Toxic Sensor M25 |
| 2106B1521 | Sensepoint SO2 0-50 ppm Toxic Sensor M25 |
| 2106B1720 | Sensepoint SO2 0-15 ppm Toxic Sensor ¾"NPT |
| 2106B1721 | Sensepoint SO2 0-50 ppm Toxic Sensor ¾"NPT |
| 2106B1422 | Sensepoint NO2 0-10 ppm Toxic Sensor M20 |
| 2106B1522 | Sensepoint NO2 0-10 ppm Toxic Sensor M25 |
| 2106B1722 | Sensepoint NO2 0-10 ppm Toxic Sensor ¾"NPT |
| 2106B1430 | Sensepoint O2 25% V/V Toxic Sensor M20 |
| 2106B1530 | Sensepoint O2 25% V/V Toxic Sensor M25 |
| 2106B1730 | Sensepoint O2 25% V/V Toxic Sensor ¾"NPT |
