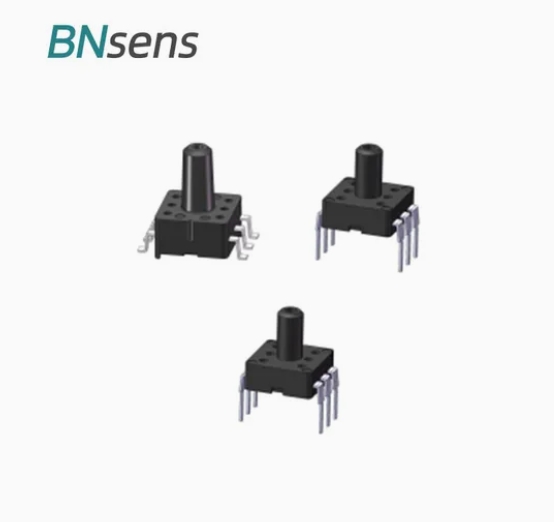

BLWP040 Pressure Sensor
Details

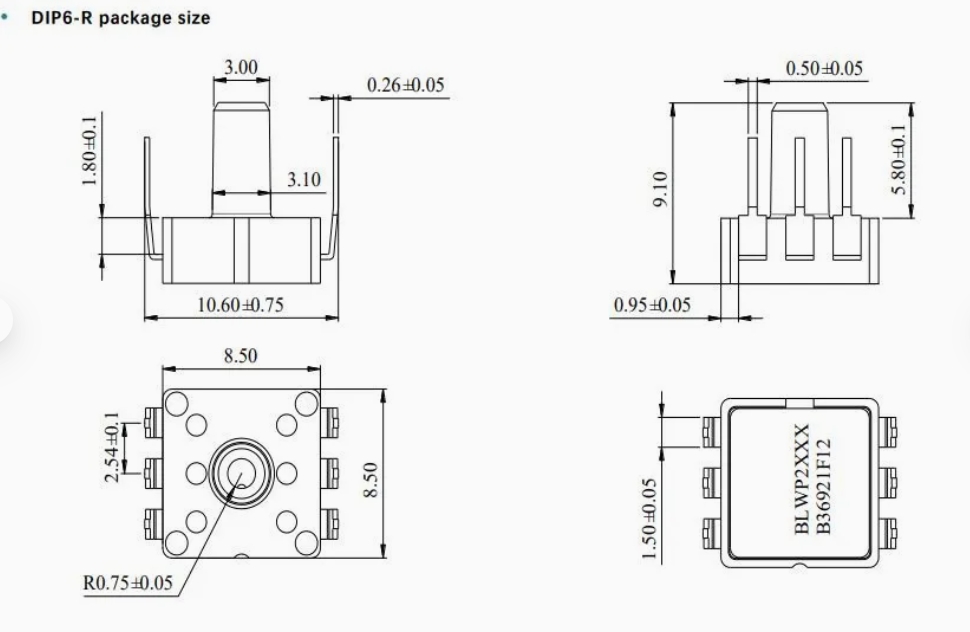

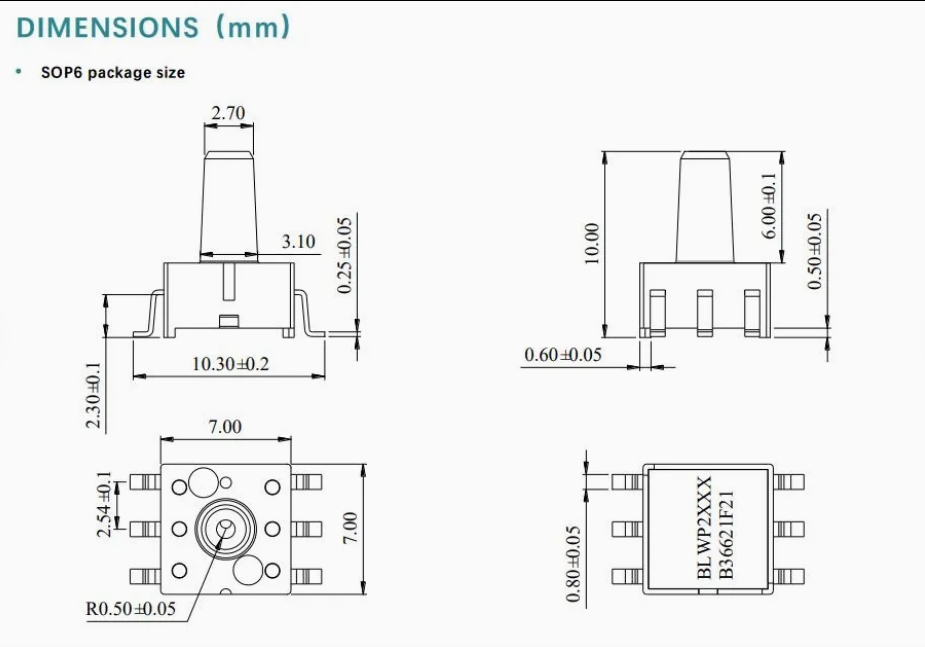

BLWP040 series pressure sensor is a MEMS pressure sensor with all-silicon structure. The external ambient temperature is -45℃~ 125℃, which can achieve accurate pressure measurement and show a good linear relationship with the output voltage. This series of pressure sensor adopts open loop detection, SOP6, DIP6 package, broaden the product application way.
CHARACTERISTICS ：Measuring range: 0~40kPa，-40~0kPa，-40~40kPa
Type of pressure: gauge pressure
High sensitivity
High reliability
High stability
Constant voltage source or constant current source
Low cost
PREFORMANCE ：
| Parameter | Minimum | Typical | Maximum | Unit | Note |
| Supply voltage | 5 | 10 | Vdc | ||
| Working curren | 1 | mAdc | |||
| Bridge arm resistance | 4.5 | 5 | 5.5 | kΩ | |
| Zero bias | -10 | 0 | +10 | mV | |
| Full scale output | 50 | 70 | 90 | mV | @100/200kpa |
| Non linearity | 0.1 | 0.2 | %FS | ||
| Zero output temperature coefficient TCO | -0.08 | -0.03 | 0.08 | %FS/℃ | Constant pressure mode |
| -0.08 | -0.04 | 0.08 | %FS/℃ | Constant current mode | |
| Full scale output temperature coefficient TCS | -0.27 | ±0.22 | -0.17 | %FS/℃ | Constant pressure mode |
| -0.03 | ±0.02 | 0.03 | %FS/℃ | Constant current mode | |
| Resistance temperature coefficient | 1500 | 2000 | 2500 | ppm/℃ | |
| Hysteresis | 0.05 | 0.1 | %FS | ||
| Operating temperature | -45 | 125 | ℃ | ||
| Temperature of storage | -55 | 150 | ℃ | ||
| Stability of | 0.2 | %FS/Y |
Note：Unless otherwise specified, all values in this table are tested at a voltage of 5Vdc and a temperature of 25±3℃
