IP67 industrial IoT gateway supporting RS232, RS485, Can communication, 4G/Wi-Fi/Lora/radio
Banning officially launched an IP67 industrial-grade IoT gateway. The gateway has powerful performance, the protection level is IP67, the working temperature is -30°C to +70°C, and it can withstand 25G, 11ms, 1 /2 sine wave shock in two directions per axis, anti-salt spray rating: ASTM B117-03, anti-vibration rating: machine durability, 10-2000Hz, 7.7GRMS, 8 hours per axis.
In terms of functionality:
1: Communication: This gateway supports communication ports with power output function, which can supply power to external sensors and peripherals
- Support 2 channels of RS232 (multiplexed) serial data communication, baud rate can be selected from 9600 to 115200
- Support 1 channel RS485 (multiplexed) serial data communication, the baud rate can be selected from 9600~115200
- Support 2 channels of CANBUS (1 channel dedicated, 1 channel multiplexed) data communication, the rate is optional 250kbps/500kbps
- Support standard NMEA0183 sentence output, optional common sentence format, output frequency optional 1~10Hz
- Powerful communication link support, strengthen network communication, support 4G/Wi-Fi/Lora/radio
- With independent DTU data transmission port, realize transparent transmission of custom format data
- Convenient and diverse Web function configuration, wireless WIFI connection settings
2: Positioning function (optional)

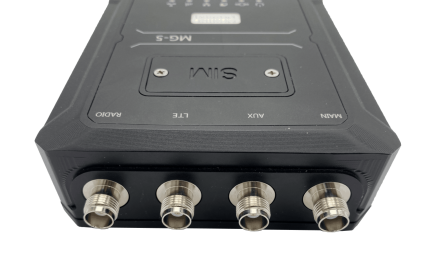

- 2-way TNC GNSS antenna signal interface (MAIN, AUX)
- 1-way LTE 4G mobile network signal interface (LTE)
- 1 LAN signal interface (RADIO)
- Standard WIFI Signal Interface Concealed Signal Antenna (Hidden)
- Dual Antenna System, the MG-5 mainframe includes a dual antenna system called HD2 capable of outputting two-dimensional attitude parameters of the baseline between two antennas mounted on the platform, namely heading and tilt.
- Ultra-high positioning accuracy and direction finding accuracy
The main market for our gateway is outdoor operation vehicles, outdoor construction equipment, factory automation equipment, municipal engineering, etc.
