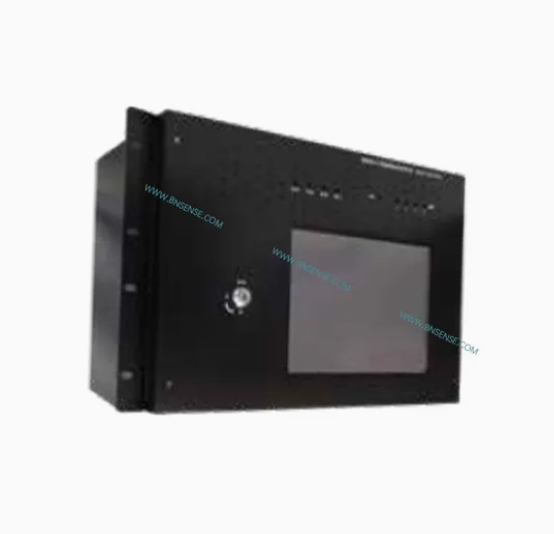

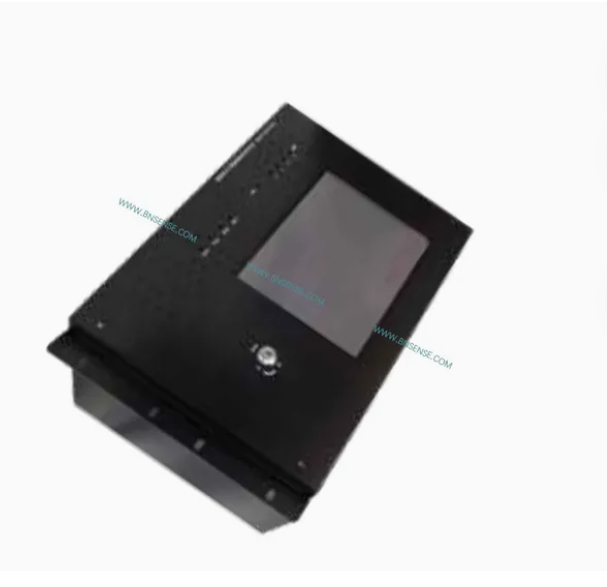

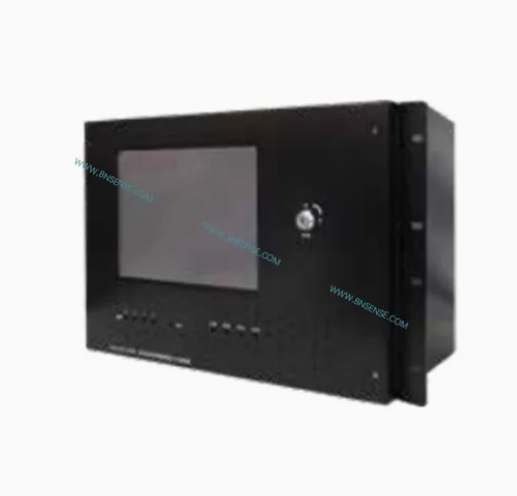

JTW-XCD-9600
Product Description
Distributed fiber optic linear temperature fire detectors consist of sensitive components and a signal processing unit connected to them. The sensitive component of the distributed fiber optic linear temperature fire detector is a temperature-sensitive optical fiber, which transmits the signal to the signal processing unit (distributed fiber optic temperature measurement host) through the temperature-sensitive optical fiber, which can achieve temperature measurement and positioning within a long distance.4 channels support up to 2.5km of optical fiber per channel; 2 channels support up to 5km of optical fiber per channel. The positioning accuracy and temperature resolution are high, and the performance is excellent.Complete alarm function: It has a series of alarm functions such as temperature threshold, temperature change rate and temperature peak, fiber break alarm, etc.It can be installed on the wall or in the cabinet.Implementation standards GB16280-2014, Q/XSSEL 019-2020, GB 3836.1-2010, GB3836.4- 2010, GB 3836.20-2010.FEATURE• Temperature measurement software: Software Copyright Certificate.• Optical fiber 15KV withstand voltage / mechanical strength / IP67 level, suitable for various harsh environments.• CE certification. • Possessing precision and sensitivity test reports, high positioning and temperature measurement accuracy.• Passed the laser safety level test.Parameters
| Detection Distance | 10km |
| Temperature measurement resolution | <0.8°C |
| Temperature measurement error | <1°C |
| Positioning error | <1m |
| Alarm response time | <3s |
| Fiber type | Multimode fiber, 62.5/125µm |
| Number of channels | 4 |
| Largest partition | 1000 |
| Number of relays | 20 |
| Alarm output | Dry contact or dedicated protocol |
| Network interface | RJ-45, Ethernet 10Mb/s |
| Other interfaces | RS232/485/USB/Optical Fiber |
| Power | 25W |
| Power Supply | 24VDC |
| Operating temperature | Detection unit: -40°C~50°C Host part: -10°C~50°C |
| Operating humidity | 0-95% No condensation |
| Dimensions | 430(L)*170(W)*390(H)mm |
| Weight | 10Kg |
| Explosion-proof level | Ex op is T6 Ga IIC |
