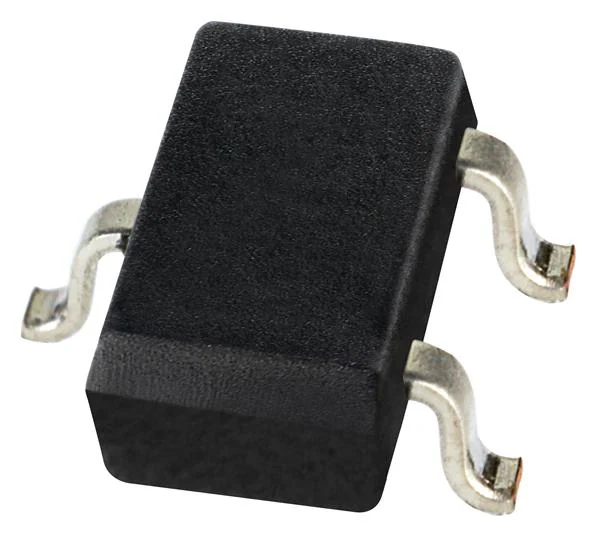

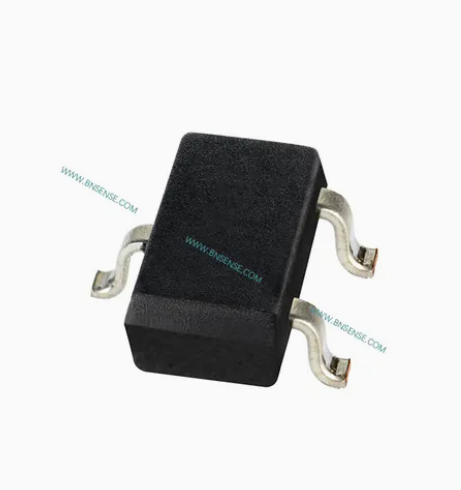

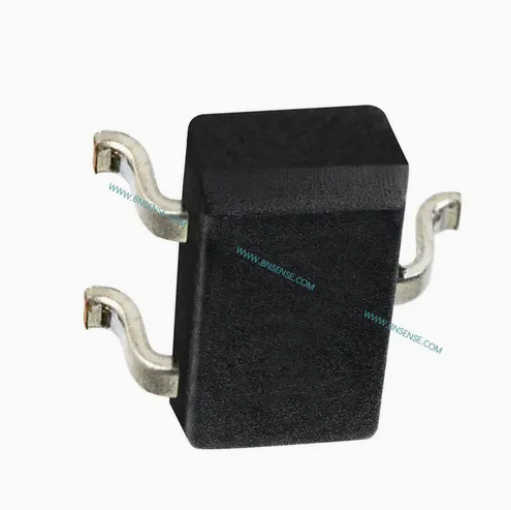

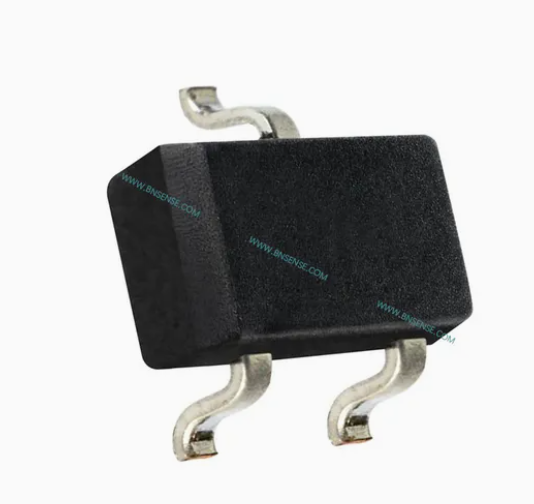

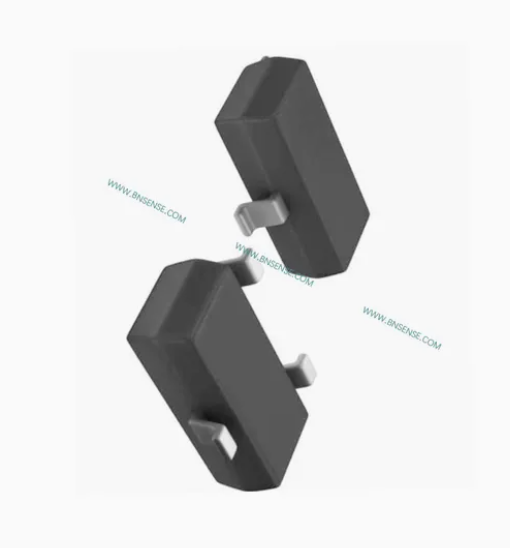

SS360PT
Inventory: 6000
$0.13Details
| Tech Specifications | |
| Description | Product Attribute |
| Manufacturer | Honeywell |
| Product Category | Board Mount Hall Effect / Magnetic Sensors |
| Type | Digital Hall Effect Sensor |
| Operating Supply Current | 3.5 mA |
| Maximum Output Current | 20 mA |
| Operating Point Min/Max | 5 G, 55 G |
| Release Point Min/Max (Brp) | - 55 G, - 5 G |
| Operating Supply Voltage | 24 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 125 C |
| Mounting Style | SMD/SMT |

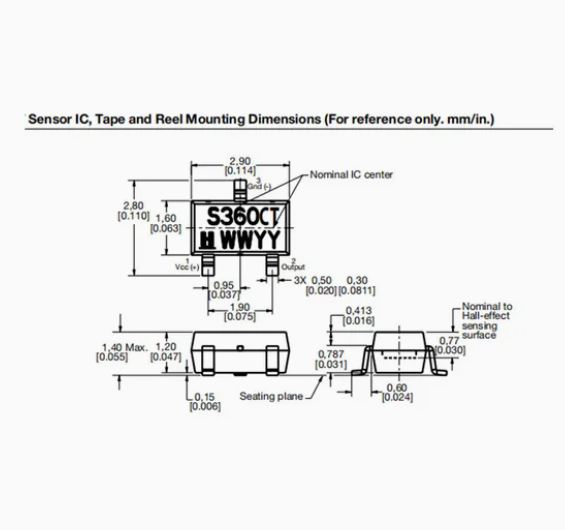

| Package / Case | SOT-23-3 |

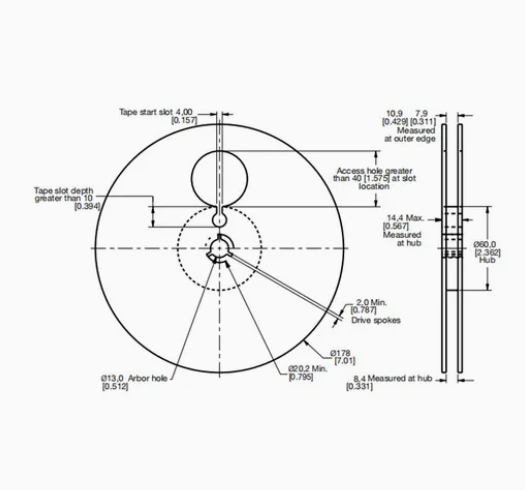

| Packaging | Reel |
| Output Voltage | 26 V |
| Product Type | Board Mount Hall Effect / Magnetic Sensors |
| Subcategory | Sensors |
| Supply Voltage - Max | 24 V |
| Supply Voltage - Min | 3 V |
