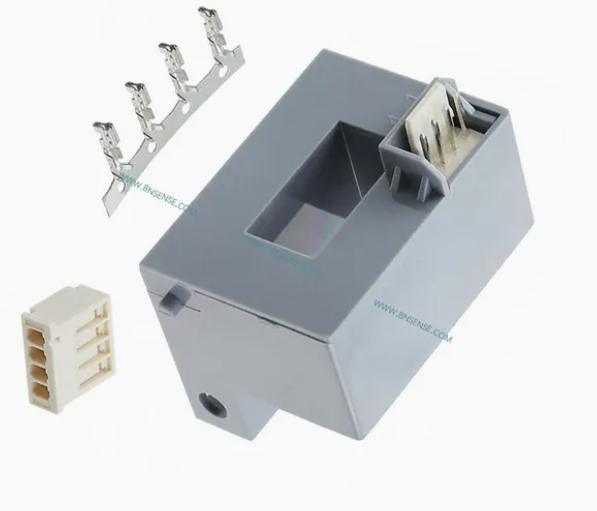

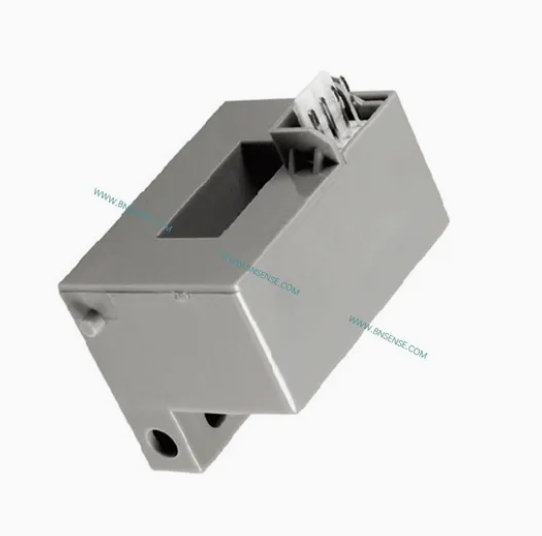

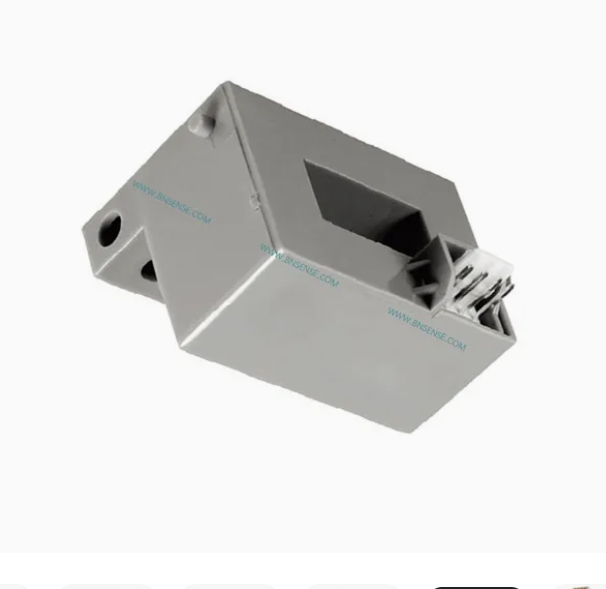

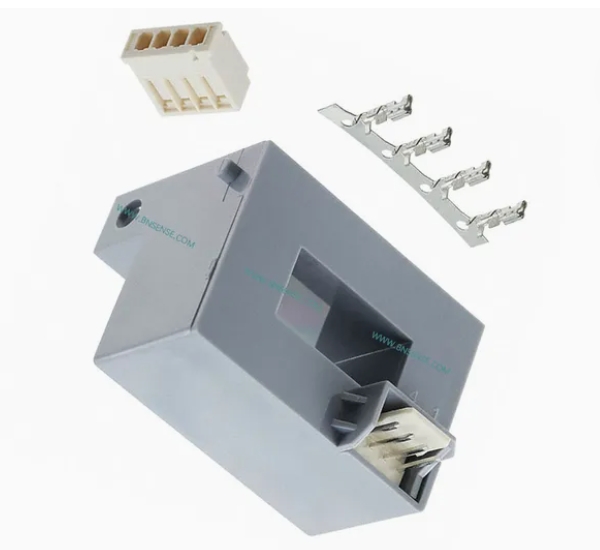

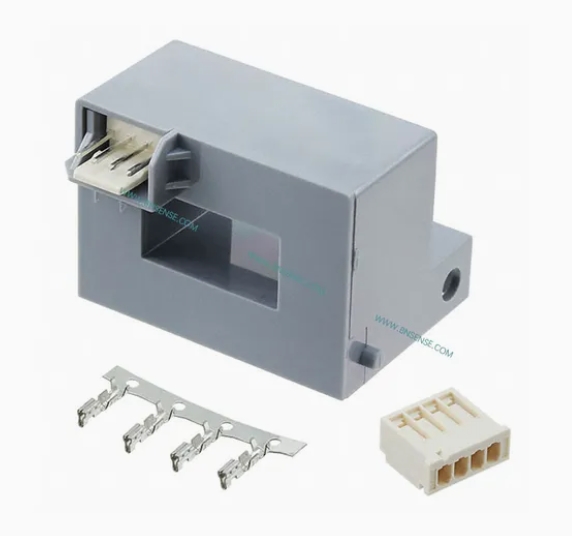

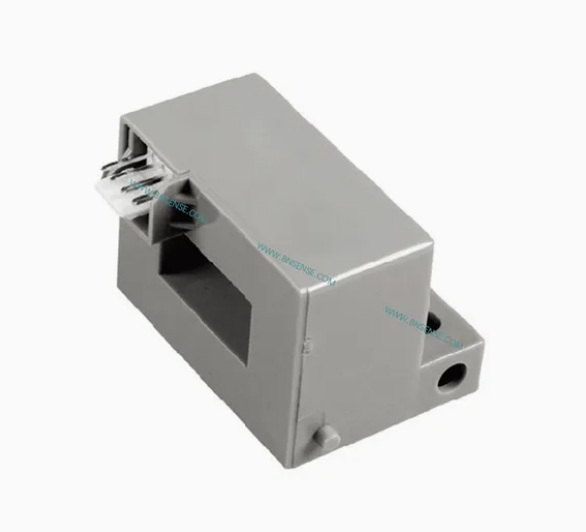

CSCA0050A000B15B01
Product Description
The CSCA-A Series of open-loop current sensors are based on the principles of the Hall-effect wherein a Hall-effect device (HED) produces an output voltage linearly related to the amplitude and phase of a magnetic field applied to it.Current flowing through a primary conductor generates a rotating magnetic field around the conductor. This field is
collector by a core of magnetically sensitive material and concentrated in the gap in this core.The HED is located in thiscore gap. Therefore, the HED output is directly proportional tothe amplitude and phase of the primary current.The HED output is trimmed for gain and offset calibration suchthat the CSCA-A Series sensor provides a predefined output sensitivity versus primary current.FEATURES
• Measures ac, dc and impulse currents
• Competitive cost/performance ratio
• Low power consumption
• Compact size
• High level of electrical isolation between primary and secondary circuits
• Large primary aperture
• RoHs compliant
• CE, UL approvals (pending)POTENTIAL APPLICATIONS
• Variable speed drives
• Ground fault detectors
• Current feedback control systems
• Robotics
• UPS and telecommunication power supplies
• Welding power supplies
• Automotive - Battery management systems
• Watt meters
| SPECIFICATIONS (all specifications are at ±15 Vdc supply and 25 °C [77 °F] ambient temperature unless otherwise specificed) | ||
| Characteristic | Symbol | Parameter |
| Nominal current | IPN | See product selection guide |
| Peak measuring range (ac peak) | IPK | See product selection guide |
| Nominal output voltage at IPN | VSN | 4 V ± 1 % |
| Supply voltage | Vcc | ±15 Vdc ± 5 % |
| Supply current | Icc | 17 mA typ. |
| Accuracy at IPN 1 | X | < ±2 % of IPN |
| Linearity 2 | EI | < ±1 % |
| Zero current offset | VO | < ±20 mV |
| Residual offset after IPN | VOR | < ±20 mV |
| Thermal drift of offset | VOT | < ±3 mV/°C @ IPN = 50 A< ±1.5 mV/°C @ IPN = 100 A to 600 A |
| Thermal drift of gain | VST | < ±4 mV/°C |
| Response time 3 | tR | 3 μs to 7 μs |
| di/dt accuracy followed | di/dt | > 50A/μs |
| Bandwidth | f | dc to 50 kHz |
| Isolation voltage | VD | 3 kV, 50 Hz, 60 sec |
| Rated insulation voltage | VI | 849 V reinforced |
| Output resistance | RS | > 10 kOhm |
| Ambient operating temperature | TA | -10 °C to 80 °C [14 °F to 176 °F] |
| Ambient storage temperature | TS | -25 °C to 85 °C [-13 °F to 185 °F] |
NOTES:
1 For IP > IPN then X is the same percentage value but of IP
2 Independent linearity per the Instrument Society of America
3 At 90% of IP
4 Appropriate specification items defined using the guidance of EN50178
Order Guide
| Catalog listing | Description | ||||
| CSCA0050A000B15B01 | Hall-effect based, open-loop current sensor, Molex-type connector, 50 A rms nominal, ±150 A range | ||||
| CSCA0100A000B15B01 | Hall-effect based, open-loop current sensor , Molex-type connector, 100 A rms nominal, ±300 A range | ||||
| CSCA0200A000B15B01 | Hall-effect based, open-loop current sensor , Molex-type connector, 200 A rms nominal, ±600 A range | ||||
| CSCA0300A000B15B01 | Hall-effect based, open-loop current sensor , Molex-type connector, 300 A rms nominal, ±900 A range | ||||
| CSCA0400A000B15B01 | Hall-effect based, open-loop current sensor , Molex-type connector, 400 A rms nominal, ±900 A range | ||||
| CSCA0500A000B15B01 | Hall-effect based, open-loop current sensor , Molex-type connector, 500 A rms nominal, ±900 A range | ||||
| CSCA0600A000B15B01 | Hall-effect based, open-loop current sensor , Molex-type connector, 600 A rms nominal, ±900 A range | ||||
| CSCA0050A000B15B02 | Hall-effect based, open-loop current sensor, Gallant connector, 50 A rms nominal, ±150 A range | ||||
| CSCA0100A000B15B02 | Hall-effect based, open-loop current sensor, Gallant connector, 100 A rms nominal, ±300 A range | ||||
| CSCA0200A000B15B02 | Hall-effect based, open-loop current sensor, Gallant connector, 200 A rms nominal, ±600 A range | ||||
| CSCA0300A000B15B02 | Hall-effect based, open-loop current sensor, Gallant connector, 300 A rms nominal, ±900 A range | ||||
| CSCA0400A000B15B02 | Hall-effect based, open-loop current sensor, Gallant connector, 400 A rms nominal, ±900 A range | ||||
| CSCA0500A000B15B02 | Hall-effect based, open-loop current sensor, Gallant connector, 500 A rms nominal, ±900 A range | ||||
| CSCA0600A000B15B02 | Hall-effect based, open-loop current sensor, Gallant connector, 600 A rms nominal, ±900 A range | ||||
