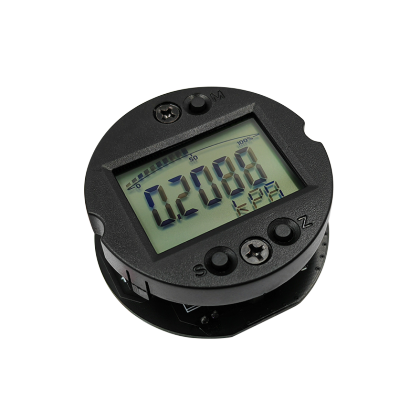

P2088-R pressure transmitter circuit board

DETAILS

1. Typical application:

Wheatstone bridge

Diffused silicon, composite silicon, sapphire, sputtered film

Ceramic capacitive sensors (5V, E+H, etc.)

2. Main indicators:

Power supply voltage: 12~32VDC

Output type: RS485 (two-wire power supply + two-wire communication)

Sampling rate: >20 times /s

ADC resolution: 0.001%FS

Heating points: 11T*15P

Communication protocol: Standard Modbus protocol

Segment code FSTN

Size: Diameter 55mm, hole distance 53mm
