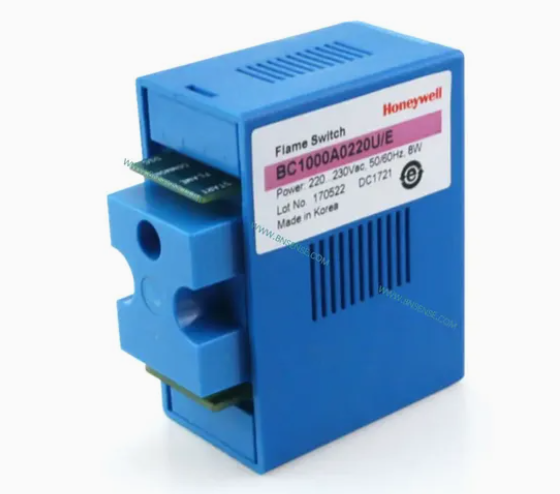

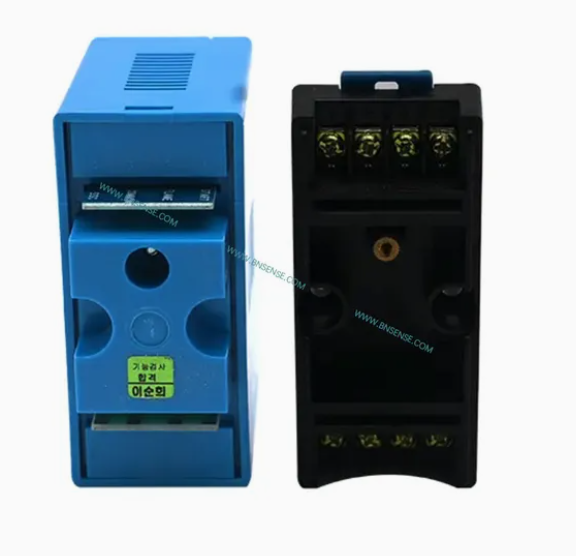

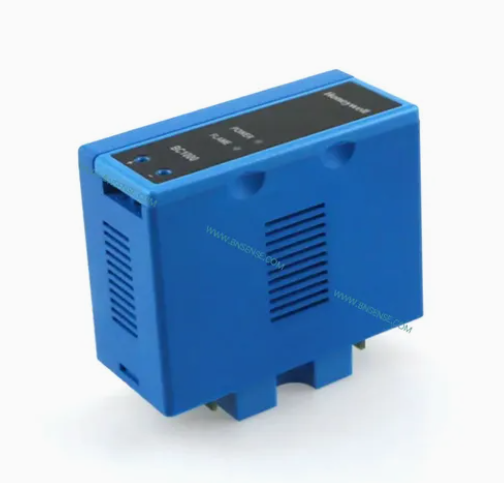

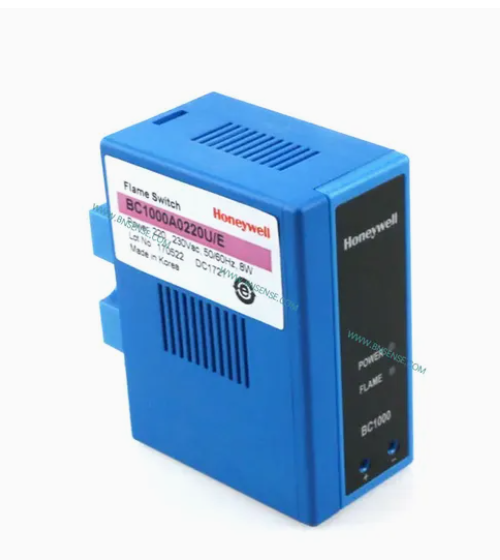

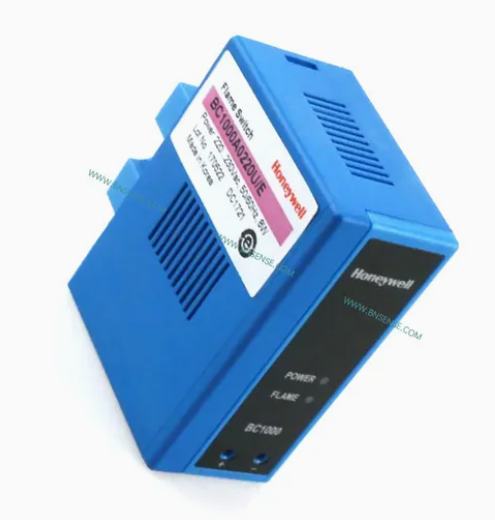

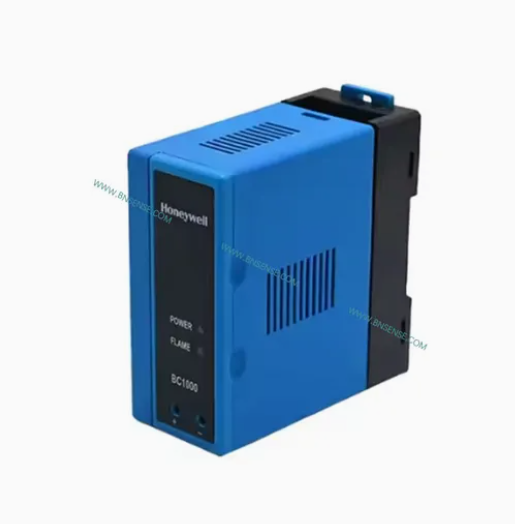

BC1000A0220U/E

Product Description

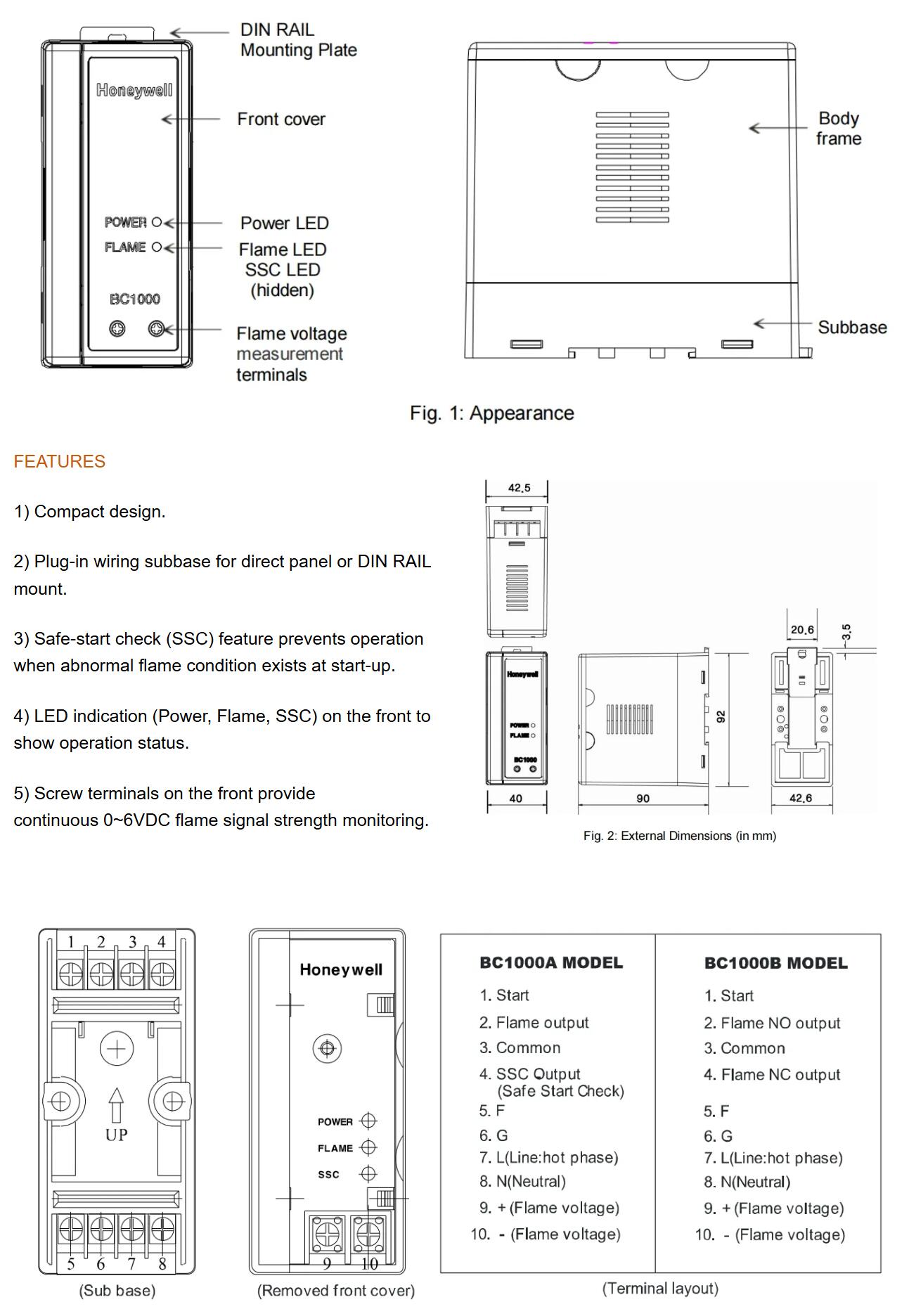

The BC1000A/B series is a flame switch for intermittent operation to indicate presence or absence of a flame and to be applied in commercial or industrial burner installations. The BC1000A can also be used as a primary control for manually operated burner systems using a start/stop station.

In addition to the flame sensing functions, the BC1000A/B provides a "Safe Start" function which checks if a flame signal is present when applying power to the device. If so, the BC1000A/B holds its operation until the flame signal disappears. The BC1000A/B can be used with a recifying flame rod or all existing non-selfcheck Honeywell UV sensors (intermittent operation only).

Table 1: Model Selection Guide and Specifications

Table 2: Electrical and Environmental Ratings

* Keep min. 50mm distance from the top and min. 20mm left/right/bottom around the device.

How to install the flame detector

To check the correct installation location of the flame detector, the flame signal strength can be measured using a multimeter. Connect the multimeter to the (+) and (-) terminals located at the front. The minimum recommended voltage is 2VDC, while the maximum value is limited to 6VDC. Adjust the optimal position of the flame detector. For instructions to install Honeywell UV flame detector, refer to the instruction sheet of C7027/C7035/C7044/C7927 flame detectors.
