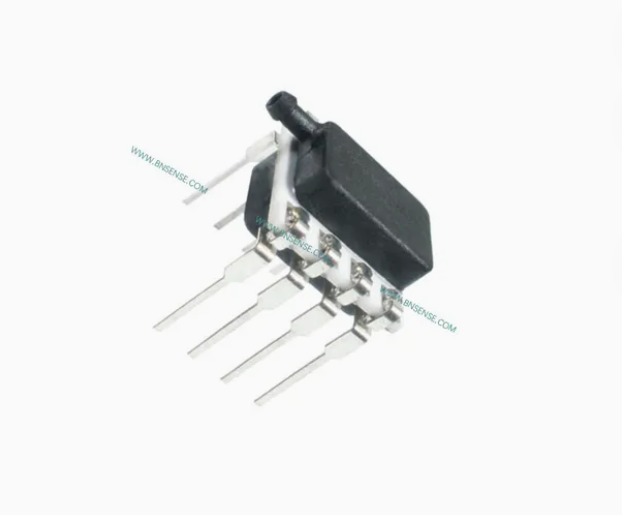

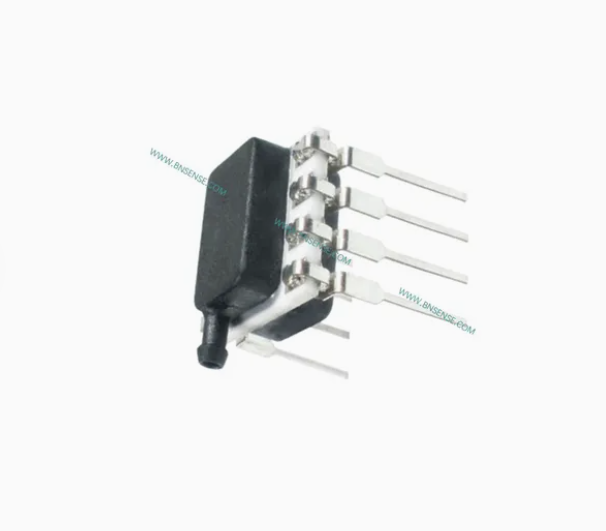

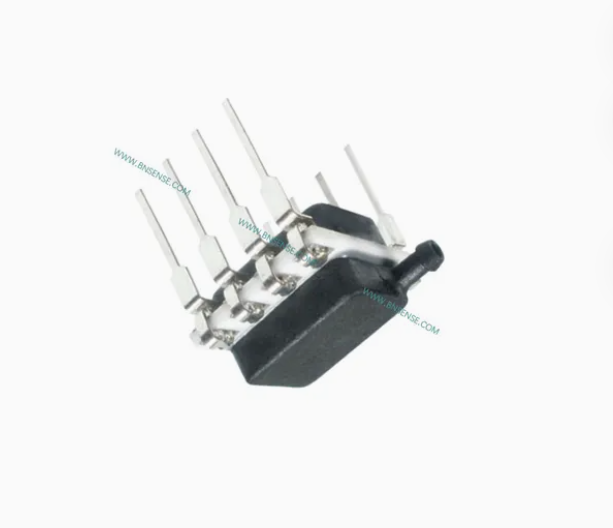

HSCDRNN100PGSA3
Inventory: 200
$17.81Details
| Tech Specifications | |
| Description | Product Attribute |
| Manufacturer | Honeywell |
| Product Category | Board Mount Pressure Sensors |
| Pressure Type | Gauge |
| Operating Pressure | 0 psi to 100 psi |
| Accuracy | 1% |
| Output Type | Digital |
| Mounting Style | Through Hole |
| Interface Type | SPI |
| Operating Supply Voltage | 3.3 V |
| Port Type | Single Radial Barbed |
| Resolution | 12 bit |
| Package / Case | DIP-8 |
| Minimum Operating Temperature | 0 C |
| Maximum Operating Temperature | + 50 C |
| Series | HSC |
| Operating Supply Current | 3.1 mA |
| Product Type | Board Mount Pressure Sensors |
| Subcategory | Sensors |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 3 V |
| Tradename | TruStability |
