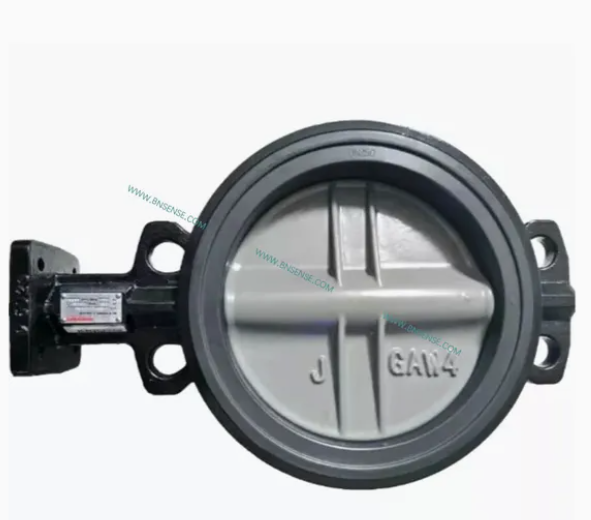

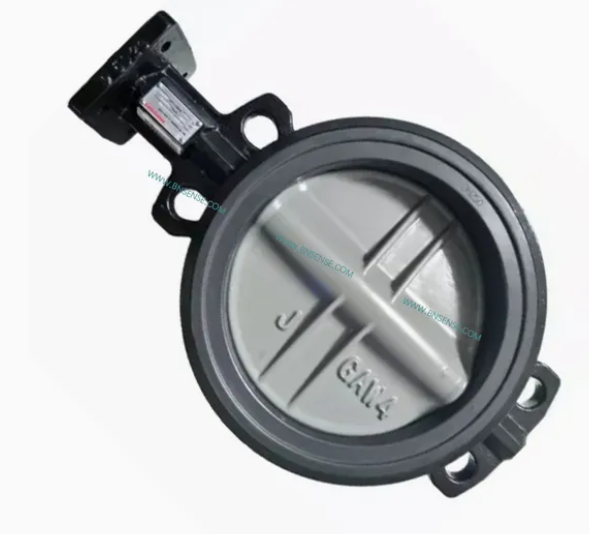

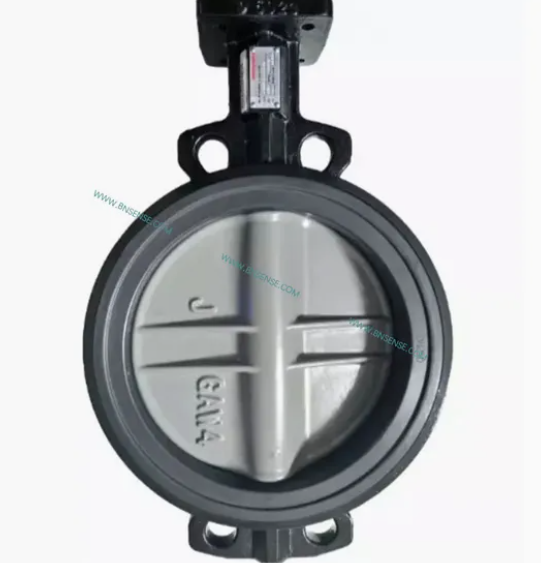

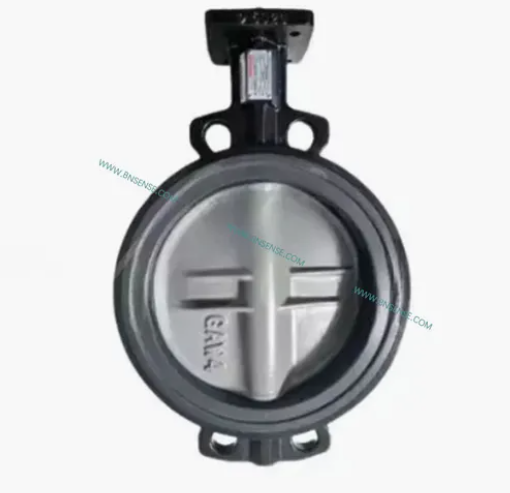

V9BFW16-200
Product Description
Honeywell V9BF series butterfly valves and NOM-E electric actuators, with modulating control or two-position control, can be applied to water supply and HVAC systems of commercial buildings, public buildings and city pipework. The modulating actuators work with a variety of control signals, i.e. 4-20 mA, 0-10 V or 2-10 V (on-site set-up available).

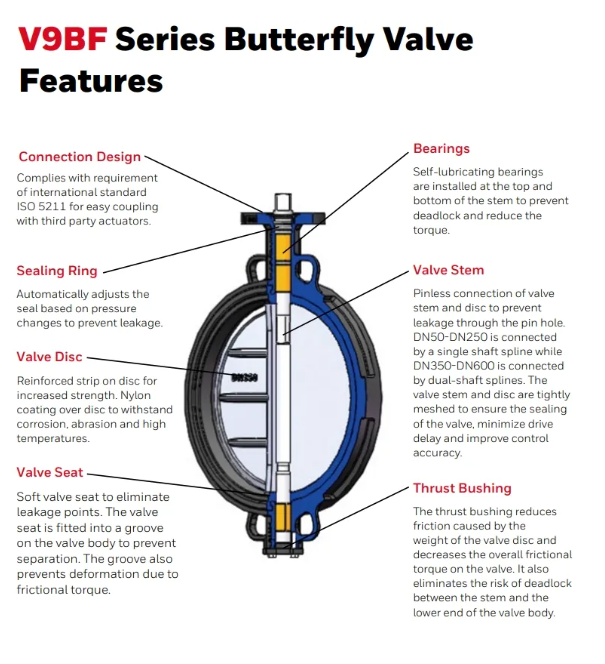

FEATURES
• Simple structure for easy operation and installation
• Soft valve seat for high performance sealing, high reliability and long service life
• Two-position control or analog control
• Manual operations available
• Position self-locking function and 3D position indicator
• Heaters to prevent condensation
• IP67 protection rating
• On-site on/off/stop control available
V9BFW Series Butterfly Valves and Actuators (The following configuration shut-off pressure difference: 1000kpa)

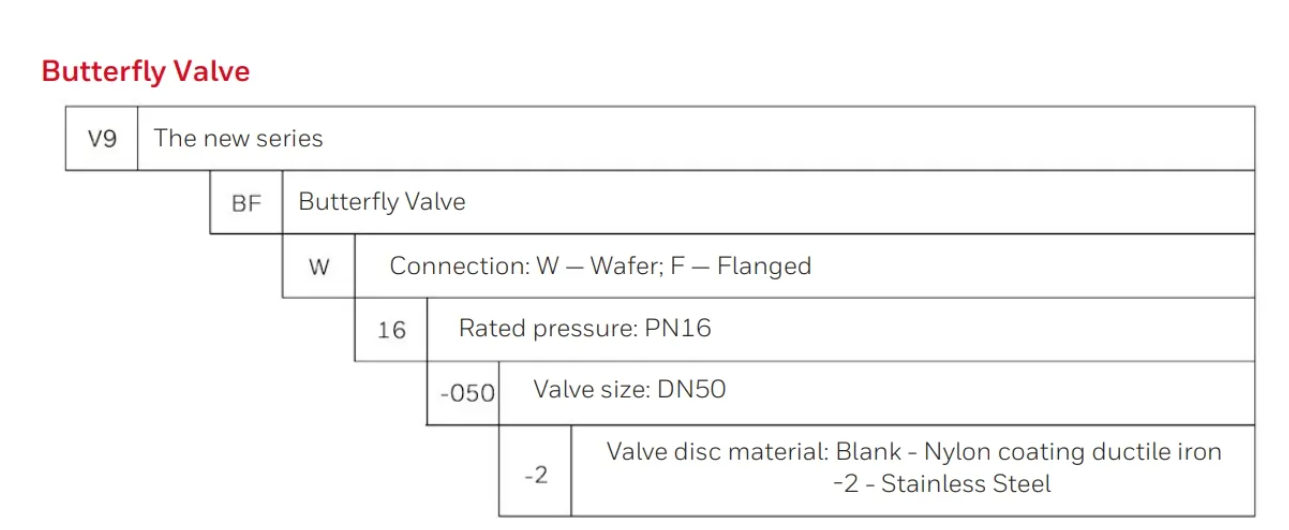

Order Information
| Size | Valve model | Actuator model(ON/OFF) | Actuatormodel(modulatingcontrol) | Actuatortorque | Runtime@50 Hz | Function(VA) | Anti-condensationheater (W) |
| DN50 | V9BFW(L)16-050(-2) | NOM16H0050 | NOM16H0050P | 50 | 20 | 48 | 5 |
| DN65 | V9BFW(L)16-065(-2) | NOM16H0050 | NOM16H0050P | 50 | 20 | 48 | 5 |
| DN80 | V9BFW(L)16-080(-2) | NOM16H0050 | NOM16H0050P | 50 | 20 | 48 | 5 |
| DN100 | V9BFW(L)16-100(-2) | NOM16H0050 | NOM16H0050P | 50 | 20 | 48 | 5 |
| DN125 | V9BFW(L)16-125(-2) | NOM16H0080 | NOM16H0080P | 80 | 30 | 48 | 5 |
| DN150 | V9BFW(L)16-150(-2) | NOM16H0200 | NOM16H0200P | 200 | 30 | 92 | 5 |
| DN200 | V9BFW(L)16-200(-2) | NOM16H0200 | NOM16H0200P | 200 | 30 | 92 | 5 |
| DN250 | V9BFW(L)16-250(-2) | NOM16H0400 | NOM16H0400P | 400 | 30 | 136 | 5 |
| DN300 | V9BFW(L)16-300(-2) | NOM16H0400 | NOM16H0400P | 400 | 30 | 136 | 5 |
| DN350 | V9BFW(L)16-350(-2) | NOM16H0800 | NOM16H0800P | 800 | 35 | 220 | 5 |
| DN400 | V9BFW(L)16-400(-2) | NOM16H0800 | NOM16H0800P | 1000 | 35 | 220 | 5 |
| DN450 | V9BFW(L)16-450(-2) | NOM16H2000 | NOM16H2000P | 1700 | 70 | 286 | 5 |
| DN500 | V9BFW(L)16-500(-2) | NOM16H2000 | NOM16H2000P | 1700 | 70 | 286 | 5 |
| DN600 | V9BFW(L)16-600(-2) | NOM16H2000B | NOM16H2000PB | 2000 | 70 | 286 | 5 |
| DN700 | V9BFW(L)16-700(-2) | NOM16H4000 | NOM16H4000P | 4000 | 140 | 286 | 5 |
| DN800 | V9BFW(L)16-800(-2) | NOM16H5000 | NOM16H5000P | 5000 | 140 | 286 | 5 |
