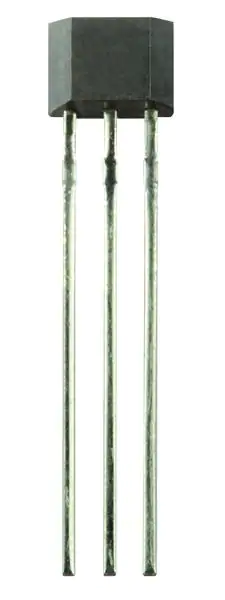

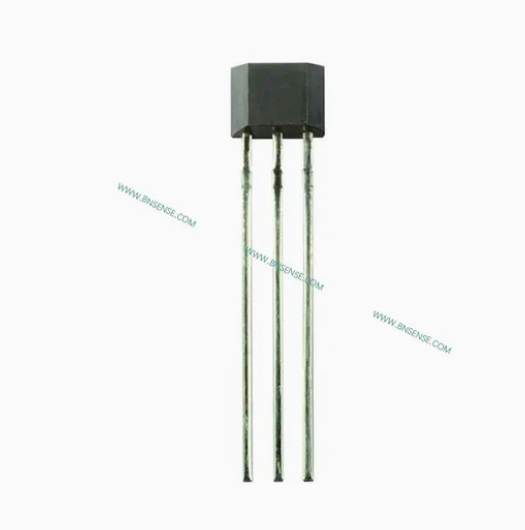

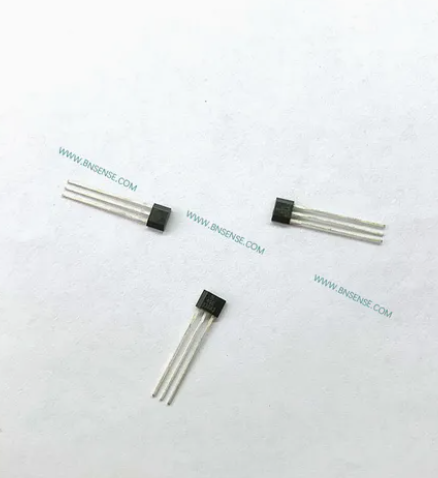

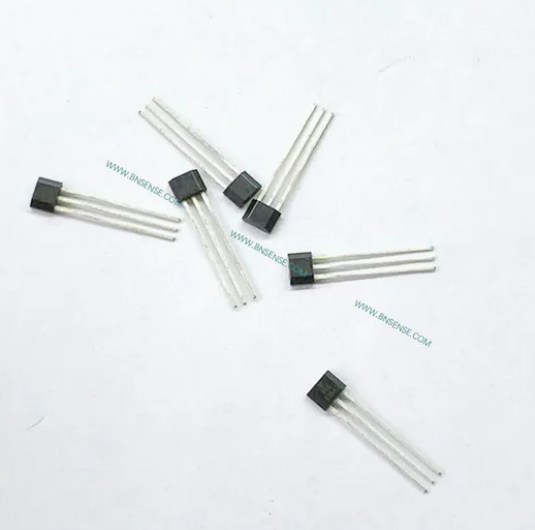

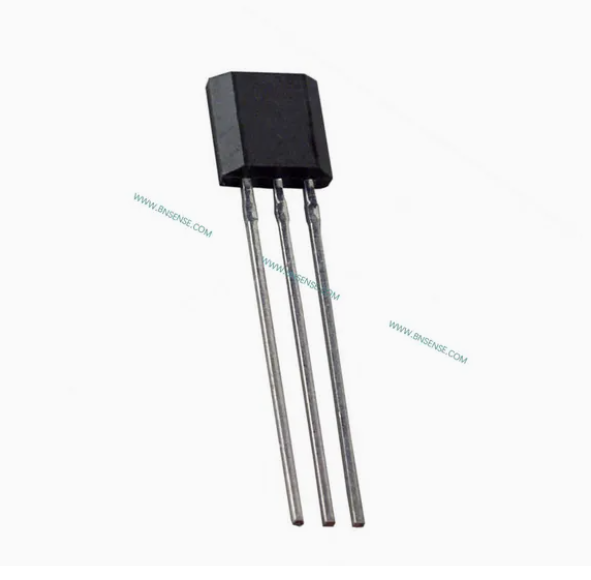

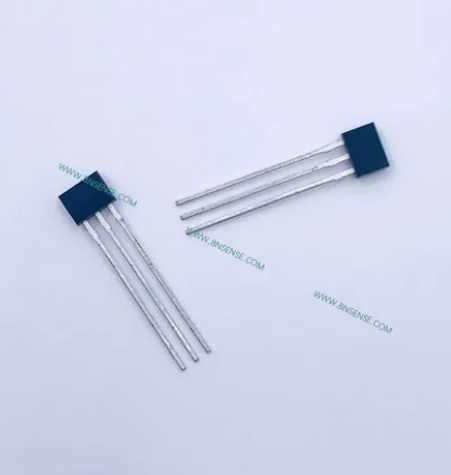

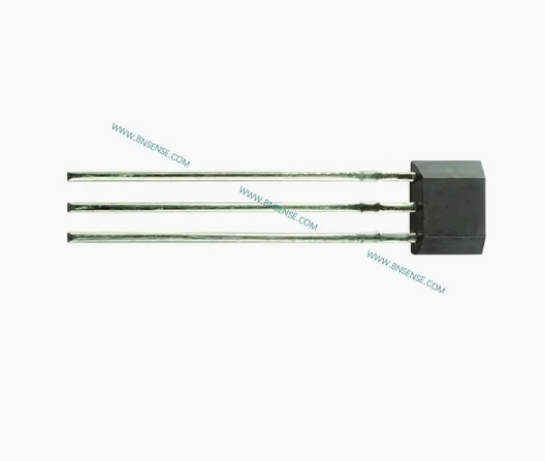

SS494B
Inventory: 500
$3.81Details
| Tech Specifications | |
| Description | Product Attribute |
| Manufacturer | Honeywell |
| Product Category | Board Mount Hall Effect / Magnetic Sensors |
| Type | Ratiometric Linear |
| Operating Supply Current | 7 mA |
| Maximum Output Current | 4 mA |
| Operating Point Min/Max | 375 G to 420 G |
| Operating Supply Voltage | 5 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 150 C |
| Mounting Style | Through Hole |
| Package / Case | TO-92-Flat-3 |
| Product Type | Board Mount Hall Effect / Magnetic Sensors |
| Sensitivity | 5 mV/G |
| Subcategory | Sensors |
| Supply Voltage - Max | 10.5 V |
| Supply Voltage - Min | 4.5 V |
| Termination Style | Through Hole |
