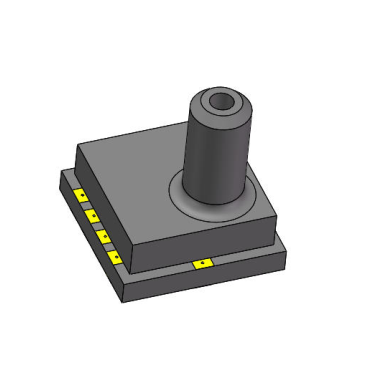

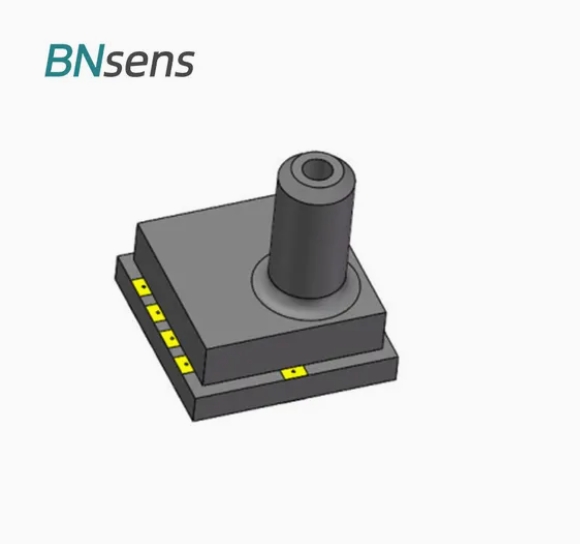

BLWP5xxxXD-Q4 board mount pressure sensor
DESCRIPTION ：
BLWP5xxxXD-Q4 is a new integrated high precision pressure sensor with high reliability and good consistency. The sensitive pressure core adopts high performance MEMS pressure sensitive chip as the measuring element. Conditioning circuit adopts highprecision integrated special chip, internal integrated noise reduction and other modules, to achieve strong anti-interference sensor performance; Internal integration of high precision temperature sensor, using a unique algorithm to achieve sensor temperature compensation.
CHARACTERISTICS ：
1、Range: -40~0kPa, -20~0kPa, 0~20kPa, 0~40kPa, -40~40kPa,-20~20kPa, etc. (gauge pressure)
2、High accuracy
3、Integrated pressure sensor
4、High stability
5、Good consistency
PREFORMANCE ：
| Parameter | Minimum | Typical | Maximum | Unit | Note |
| Burst pressure | - | 2 | 3 | times | |
| Supply voltage | 1.8 | 3.3 | 3.6 | V | |
| Working current | 1 | mA | |||
| Dormant current | 20 | nA | |||
| ADC | 24 | bit | |||
| Accuracy （1） | ±0.5 | %FS | |||
| Operating temperature | -20 | 60 | ℃ | ||
| Storage temperature | -40 | 85 | ℃ | ||
| Response time | 5 | 30 | ms |
Unless otherwise specified, all values in this table are tested at 3.3Vdc voltage and 25℃ temperature
（1）Output accuracy under clean gas test conditions within the operating temperature range；
BLWP5xxxXD-Q4 board mount pressure sensor reference↓
