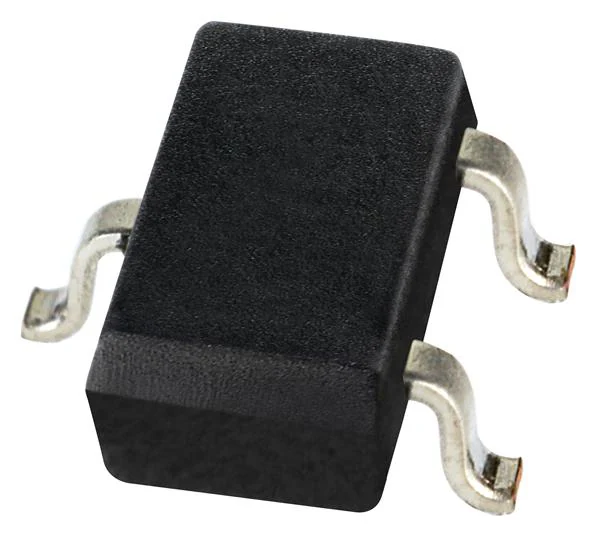

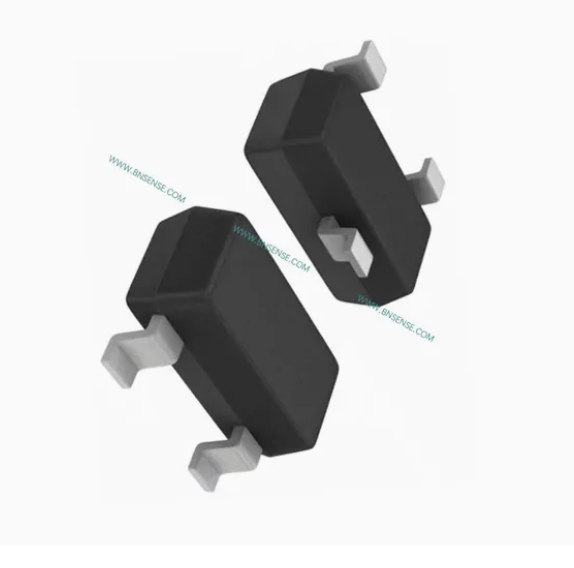

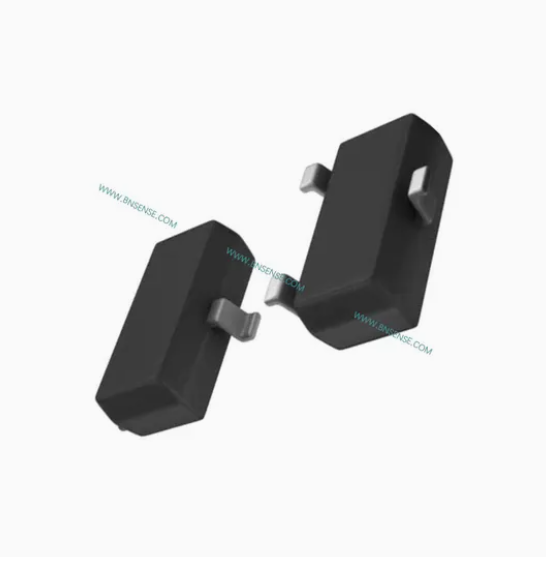

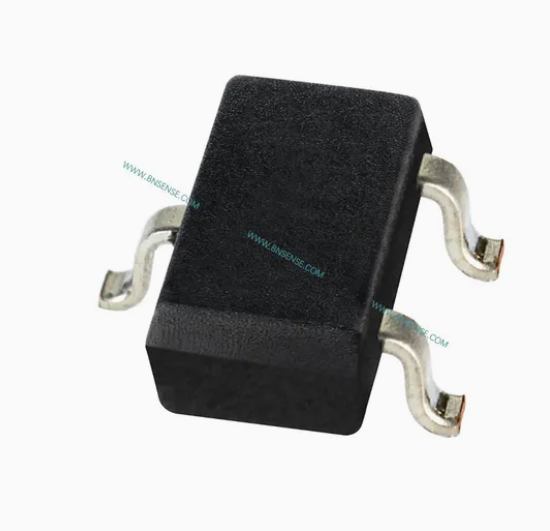

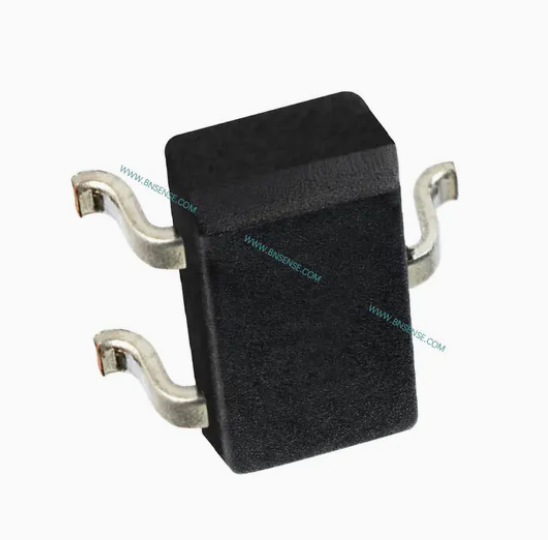

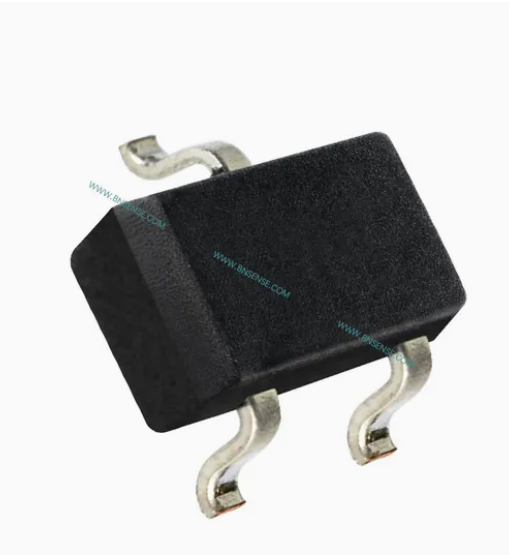

SS360ST
Inventory: 10000
$0.14Details
| Tech Specifications | |
| Description | Product Attribute |
| Manufacturer | Honeywell |
| Product Category | Board Mount Hall Effect / Magnetic Sensors |
| Type | Bipolar |
| Operating Supply Current | 3.5 mA |
| Maximum Output Current | 20 mA |
| Operating Point Min/Max | 5 G, 55 G |
| Release Point Min/Max (Brp) | - 55 G, - 5 G |
| Operating Supply Voltage | 24 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 150 C |
| Mounting Style | SMD/SMT |
| Package / Case | SOT-23-3 |
| Packaging | Reel |
| Output Voltage | - 500 mV to 26 V |
| Product Type | Board Mount Hall Effect / Magnetic Sensors |
| Subcategory | Sensors |
