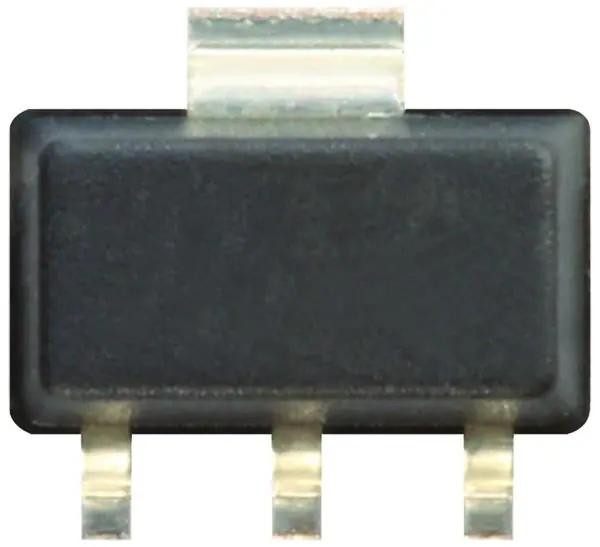

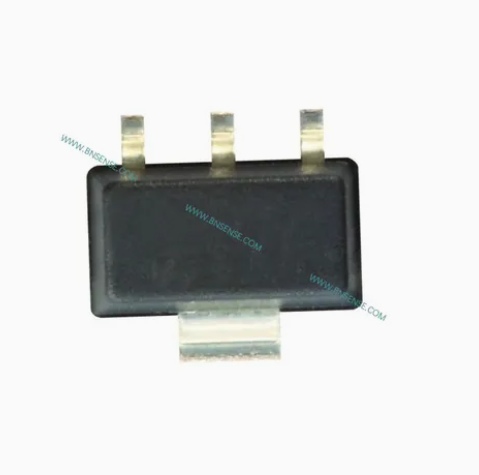

SS561AT
Inventory: 2000
$0.42Details
| Tech Specifications | |
| Description | Product Attribute |
| Manufacturer | Honeywell |
| Product Category | Board Mount Hall Effect / Magnetic Sensors |
| Type | Position Sensor |
| Operating Supply Current | 8.7 mA |
| Maximum Output Current | 20 mA |
| Operating Point Min/Max | 10 G to 85 G |
| Release Point Min/Max (Brp) | - 85 G to - 10 G |
| Operating Supply Voltage | 12 V |
| Minimum Operating Temperature | - 40 C |
| Maximum Operating Temperature | + 150 C |
| Mounting Style | SMD/SMT |

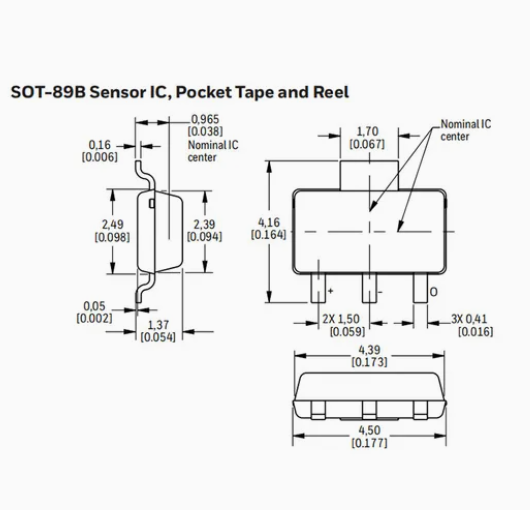

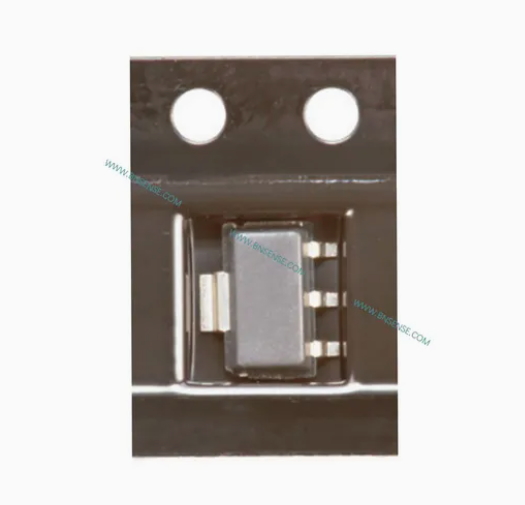

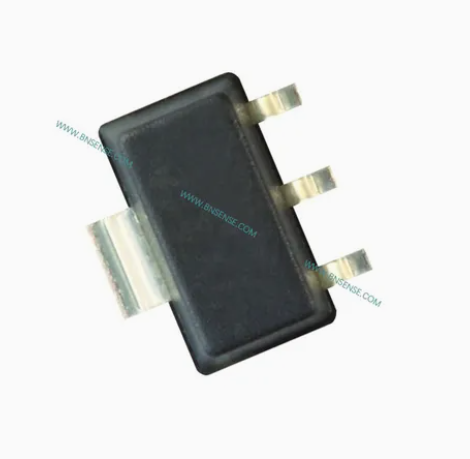

| Package / Case | SOT-89-3 |

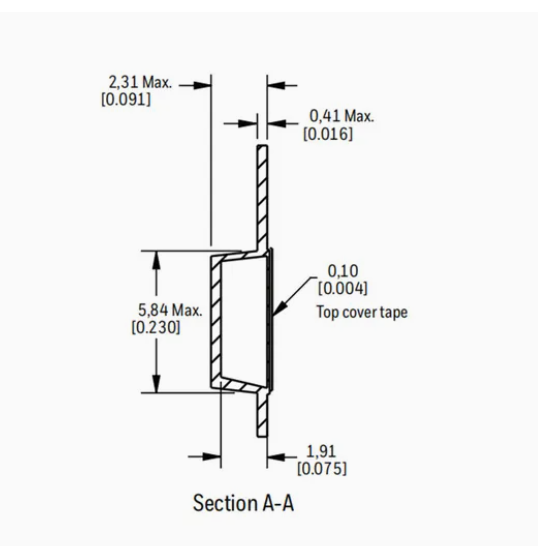

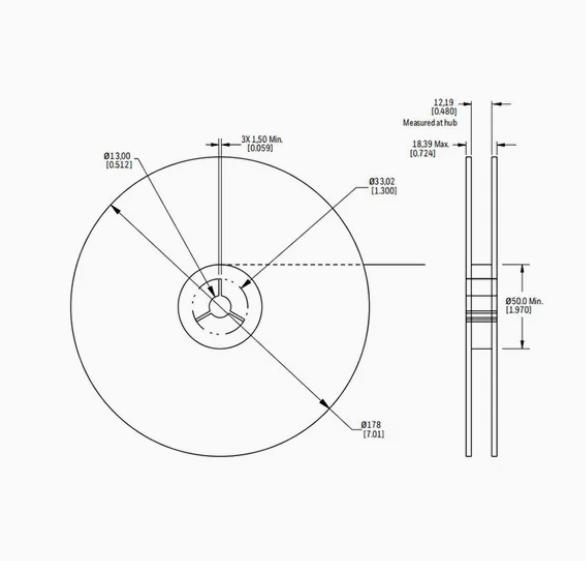

| Packaging | Reel |
| Product Type | Board Mount Hall Effect / Magnetic Sensors |
| Subcategory | Sensors |
| Supply Voltage - Max | 30 V |
| Supply Voltage - Min | 3.8 V |
