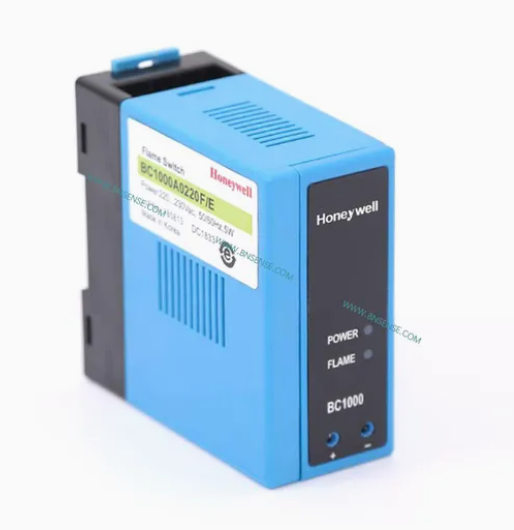

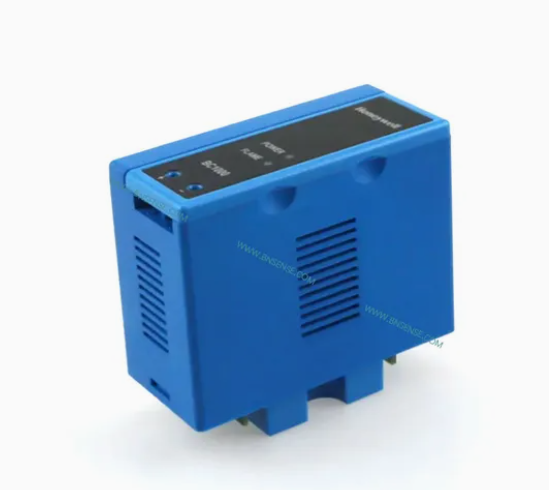

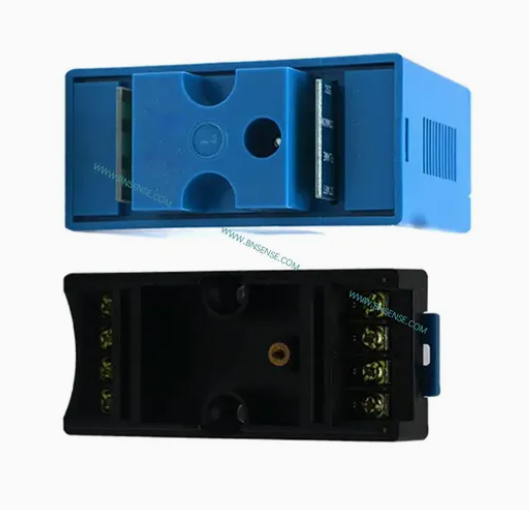

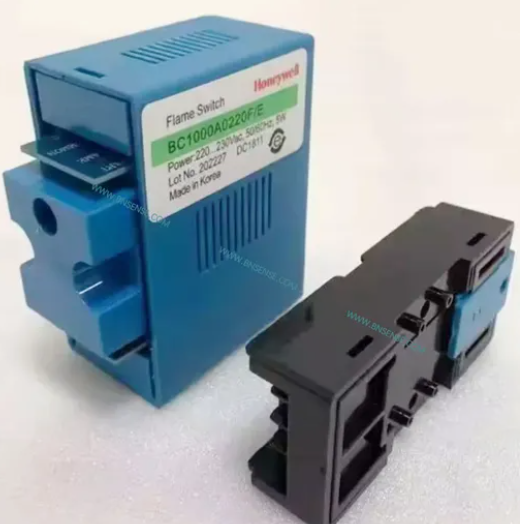

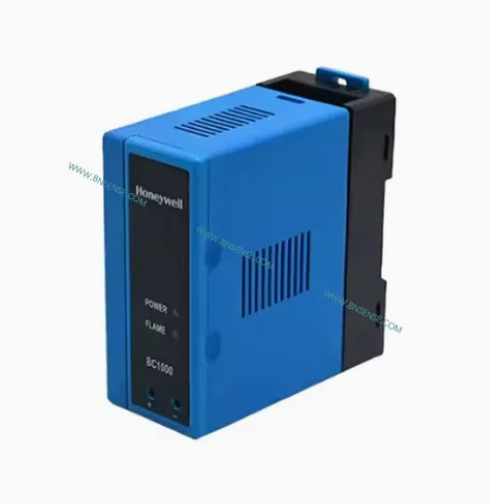

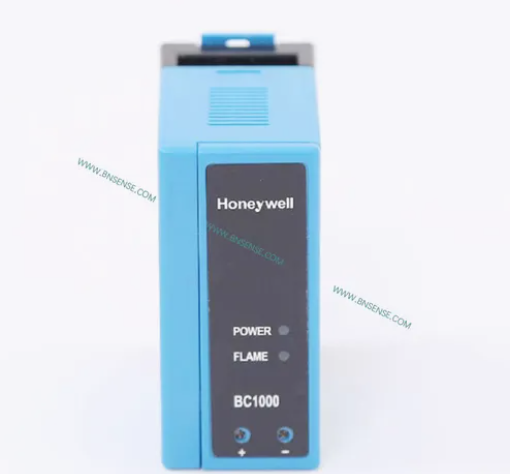

BC1000A0220F/E
Product Description
The BC1000A/B series is a flame switch for intermittent operation to indicate presence or absence of a flame and to be applied in commercial or industrial burner installations. The BC1000A can also be used as a primary control for manually operated burner systems using a start/stop station.
In addition to the flame sensing functions, the BC1000A/B provides a "Safe Start" function which checks if a flame signal is present when applying power to the device. If so, the BC1000A/B holds its operation until the flame signal disappears. The BC1000A/B can be used with a recifying flame rod or all existing non-selfcheck Honeywell UV sensors (intermittent operation only).
Tech Specifications
| Description | Product Attribute |
|---|---|
| Manufacturer | Honeywell |
| Product Category | Flame Switches |
| Rated voltage | 230V 50/60Hz |
| Allowable ambient temperature | Stand-alone mounting: -20 ~ +60ºCParallel mounting (2 or more sets) : -20 ~ +45ºC |
| Allowable ambient humidity | Max. 90% RH non condensing |
| Vibration resistance | 0.5G (10 to 150Hz for 1h each in x,y and z directions) |
| Insulation resistance | More than 50MΩ at DC500V between terminals and ground |
| Life expectancy | Designed for 250.000 cycles under nominal conditions |
| Terminal ratings | Relay output max 1A @ cosφ=1,0 per terminal |
| Flame strength | Flame On : < 1VFlame Off : > 0.2V |
| Size (WxHxD) | 42.5 x 90.0 x 95.5 mm (including sub-base) |
| Weight | Approx. 334g (including sub-base) |
