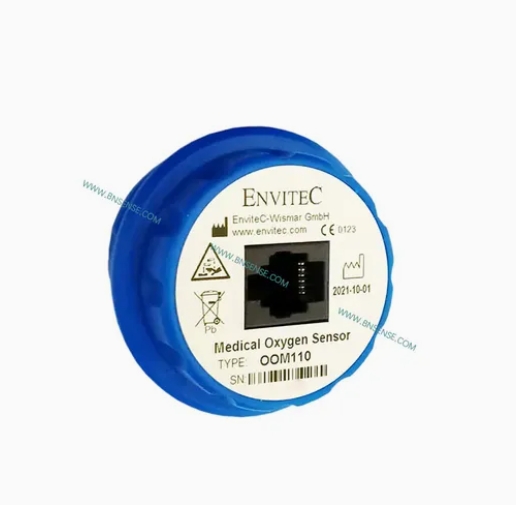

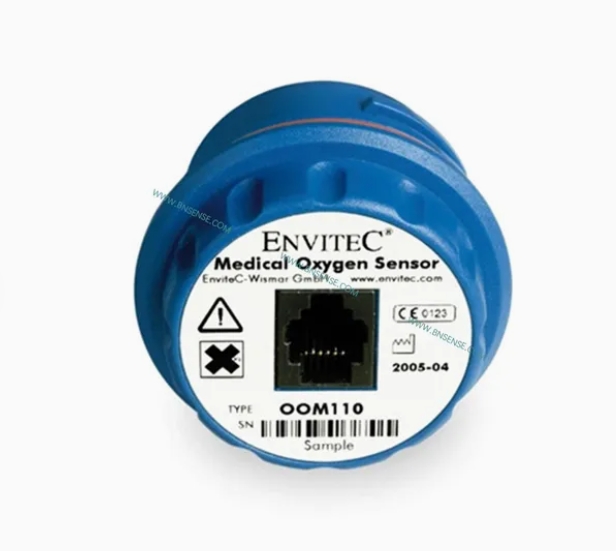

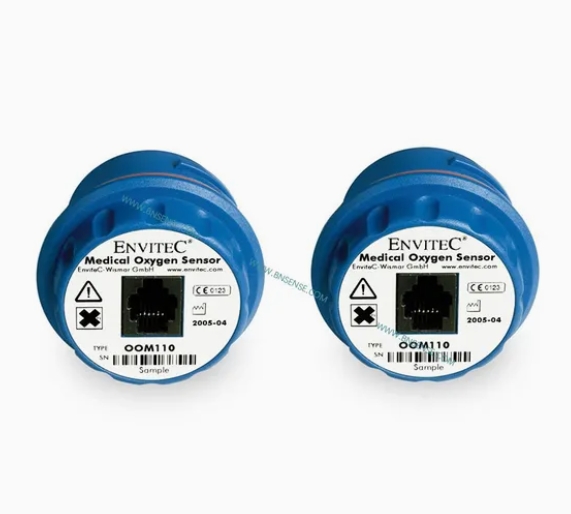

OOM110
Product Description
FROM STANDARD SENSORS TO CUSTOMIZED SENSORSExperienced Honeywell engineers work closely with customers to analyze their requirements when designing sensors for standard and OEM applications. Throughout the design process, support is provided right up to the final integraton of the solution. Our engineers can customize sensors characterized by a maximum possible degree of precision, for example fit, form, and signal behaviors such as signal range or integrated temperature compensation.
ADVANTAGES•High accuracy andreliability in response
• Resistant to N2O
• Enhanced signal stability and product quality
• Short delivery times
• Technical support
• Made in Germany
• FDA cleared
INTENDED USE
Honeywell EnviteC Medical Oxygen Sensors are intended for use as the oxygen sensing component of an oxygen analyzer that measures oxygen concentration in breathing gas mixtures in the following applications:
• control device of oxygen concentrators
• medical ventilators
• anaesthesia systems and respirators
• incubators
• gas supply systems
FEATURES AND BENEFITS
Quality
• Low cross interferences from common component breathing gases
• Limits for cross interferences are described in ISO 80601-2-55
• Industry-leading lifespan
• Designed and manufactured according to EN ISO 13485
Rlexibility
• Customized sensor design
• Simple analysis of sensor signal
• Flexible response times
Accuracy
• Linearity of sensor signal between 0 % to 100 % oxygen better than 3 % relative
• Low signal drift (<1 % volume O2/month)
• Built-in NTC compensation
On-going Research
• Long-term tests
TECHNICAL SPECIFICATIONS
| Characteristic | Measure |
| Measurement range | 0 % ... 100 % oxygen(at atmospheric pressure) |
| Nominal sensor lifetime | > 1,000,000 % volume oxygen hours |
| Initial output signal range in ambient air | 10 mV ... 12 mV |

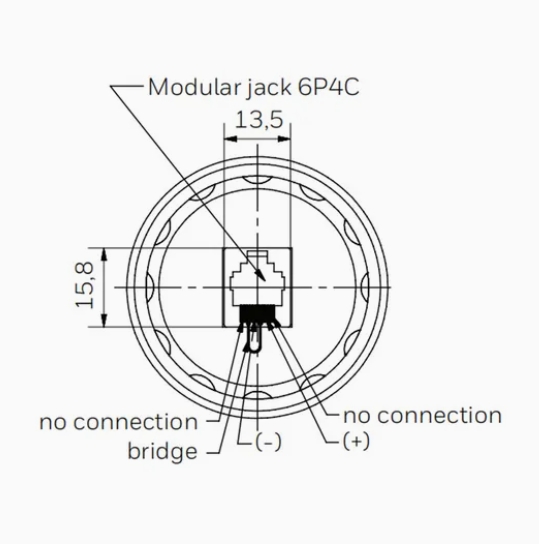

| Electrical interface | modular jack 6P4C |
| Accuracy | meets ISO 80601-2-55 requirements |
| Repeatability | < 1 % volume O2 at constanttemperature and pressure |
| Linearity error | < 3 % relative |
| Response time | < 12 s to 90 % of final value |
| Zero offset voltage | < 200 μV in 100 % nitrogen,applied for 5 min |
| Cross interference | meets ISO 80601-2-55 requirements |
| Influence of humidity | -0.03 % rel. per %RH at 25°C |
| Pressure range | 0.6 bar ... 2 bar (ppO2 0 ... 1250 mbar O2) |
| Influence of pressure | proportional to change in oxygenpartial pressure |
| Influence of mechanical shock | < 1 % relative after a fall from 1 m |
| Operating temperature | 0°C ... 50°C |
| Temperature compensation | built-in NTC compensation |
| Effect of temperature compensation(steady state) | between 25°C and 40°C:3 % relative errorbetween 0°C and 50°C:8 % relative error |
| Operating humidity | 0 % ... 99 %RH non-condensing |
| Long-term output drift | < 1 % vol. oxygen per month,typically < -15 % relative over lifetime |
| Storage temperature | -20°C ... 50°C |
| Recommended storage | 5°C … 15°C |
| Recommended load | ≥ 10 kOhm |
| Warm-up time | < 30 minutes,after replacement of sensor |
| Weight | approximately 50 grams |
| Expected sensor lifetime | > 2.5 years |
| Part number | E01-00-0098 |

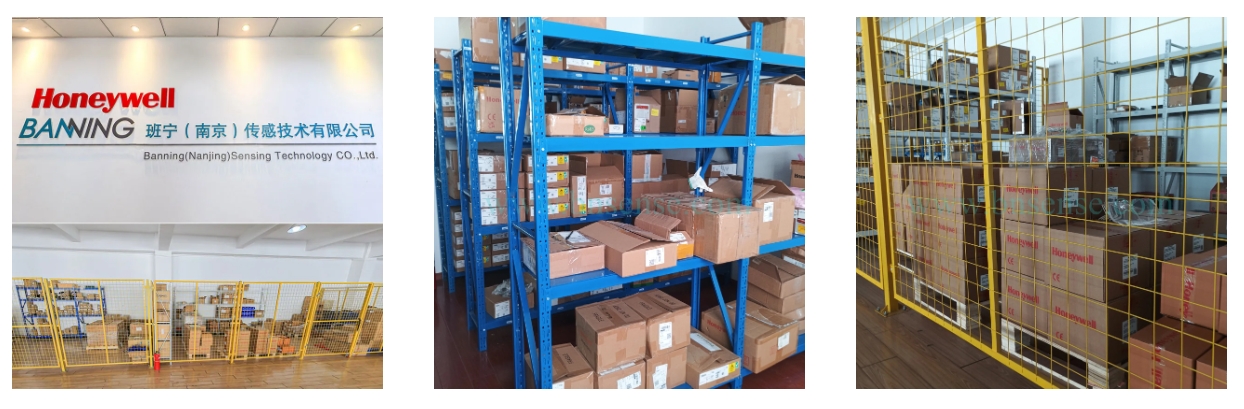

BNSENS (Nanjing) Sensor Technology Co., Ltd. is located in Nanjing, China. It is a high-tech enterprise specializing in the development, manufacturing and trade of sensor products. The company has brought together a group of outstanding technical experts in various fields such as automation, electronics, machinery and computers. All employees of the company have college degrees or above. It adopts the world-class management and operation model and 6 sigma quality system. At present, the company's main products are pressure, liquid level, flow, current, switches, etc. The company's users are all over the country, and some products have been exported to Japan, South Korea and Southeast Asia.
Since its inception, the company has been based on the technical accumulation and management standards of American sensor giants. It is composed of senior engineers and managers who have served in multinational companies for many years, and has rapidly developed various pressure sensors, transmitters, liquid level, flow meters, pressure switches, digital meters, current sensors, proximity switches and other products. After years of unremitting efforts, it has become one of the leading suppliers in the domestic automation industry. Our pressure transmitters can achieve an accuracy of more than 3/10, 000. The products have been widely used in oil, natural gas, electricity, chemical industry, metallurgy, building materials, food, light industry, environmental protection, aerospace, tap water, municipal and other industries.
It is a sensor science and technology innovation company that masters the core technology of MEMS chips. The company has a research and development center in Minnesota, USA. The leader is Dr. Pan Hanjin, a famous scientist in the sensor industry. Dr. Pan Hanjin has been deeply involved in the sensor industry for more than 20 years and is an expert in the sensor industry.
The company has a number of ASIC chips independently developed, which are widely used in industrial, automotive, home appliance and other markets.

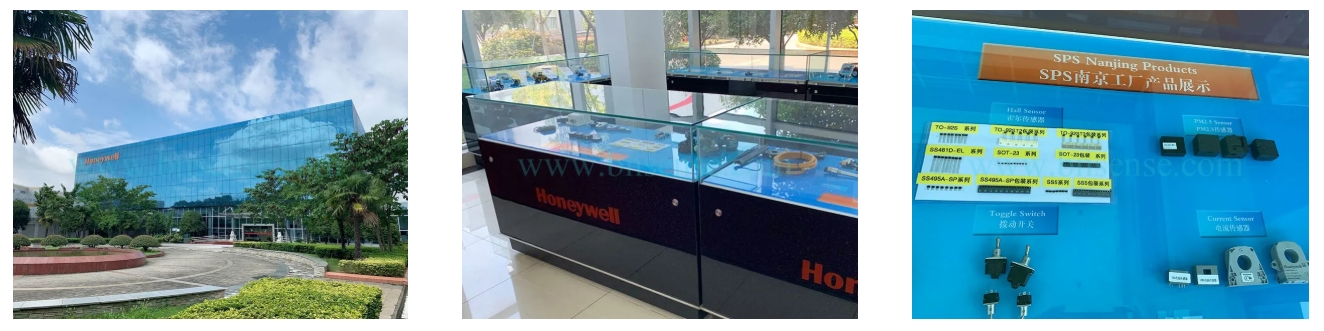

BNSENS (Nanjing) Sensing Technology Co., Ltd. is a strategic partner of Honeywell in China. The two parties proposed a plan of East serving East and jointly developed several sensors specifically for the Chinese market. These sensors will be widely used in intelligent manufacturing, Internet of Things, artificial intelligence, and smart home fields. These sensors include: Magnetic sensors, temperature sensors, humidity sensors, force sensors, fire water pressure sensors, equipment vibration sensors, human body status monitoring sensors, motion sensors, etc.
