10216/2/1

Product Description

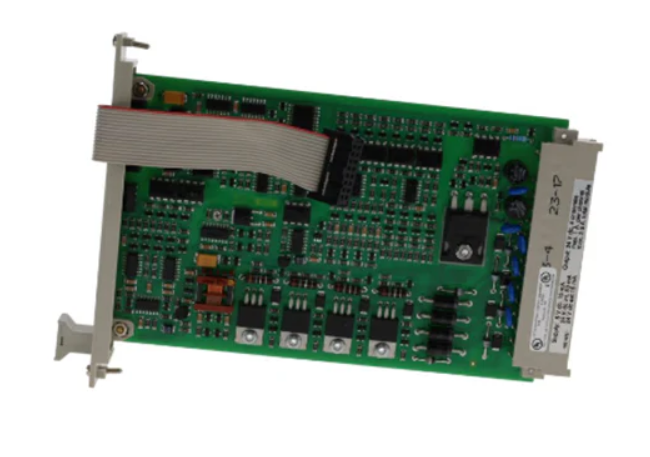

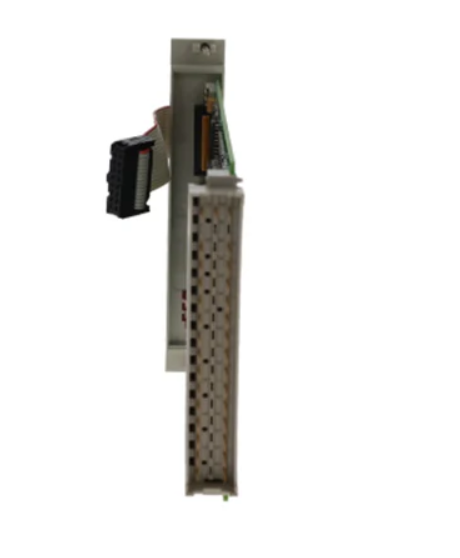

The Honeywell 10216/2/1 provides eight 48 VDC, 0.5 A loop-monitored output channels to drive loads up to 24 W. It is designed to meet the demanding requirements of industrial applications, offering high reliability, accuracy, and performance.

Specifications

• Type: Fail-Safe Digital Output Module
• Part Number: 10216/2/1
• Power Supply: 24 VDC
• Output Channels: 8 channels
• Output Voltage: 48 VDC
• Output Current per Channel: 0.5 A
• Maximum Load per Channel: 24 W
• Dimensions: 2.5 cm x 12.7 cm x 20.3 cm
• Weight: 0.2 kg
• Certifications: CO, CQ
• Warranty: 12 months

Features

• Fail-Safe Design: Ensures reliable operation even in the event of a fault.
• Loop-Monitored Output Channels: Provides continuous monitoring of the output channels.
• High Reliability: Built to withstand industrial environments.
• Compact Design: Fits into standard industrial enclosures.
