S7800A1001/U
Product Description

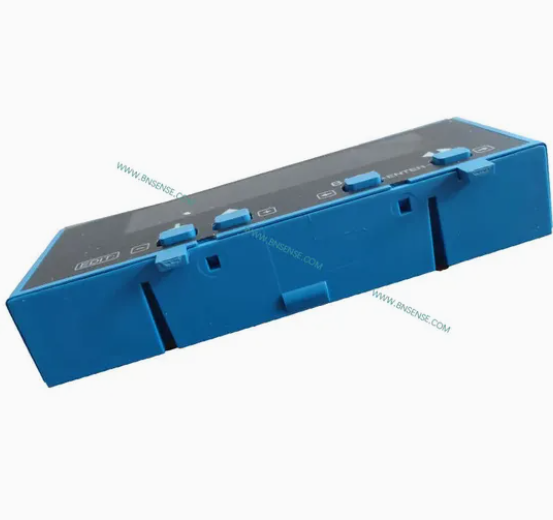

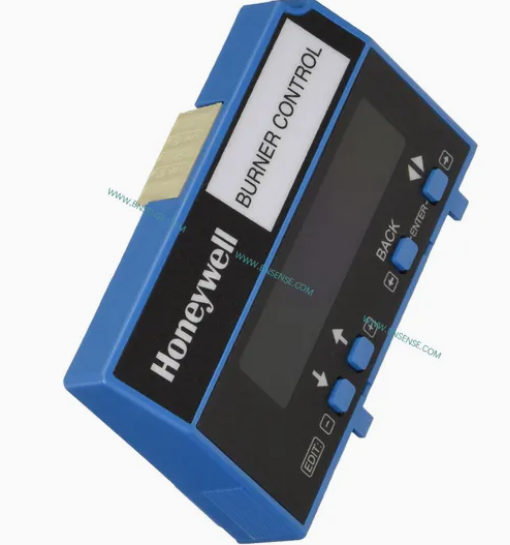

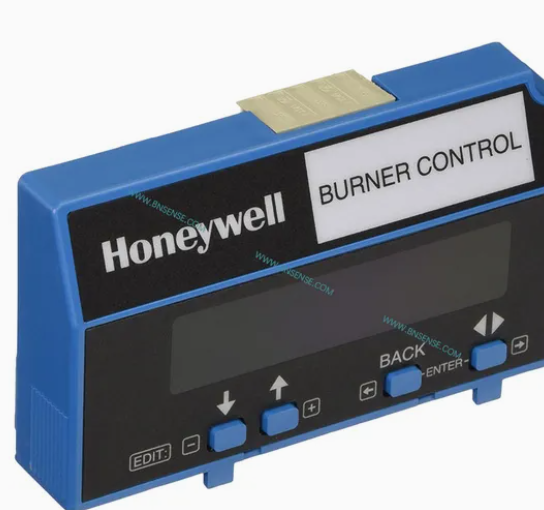

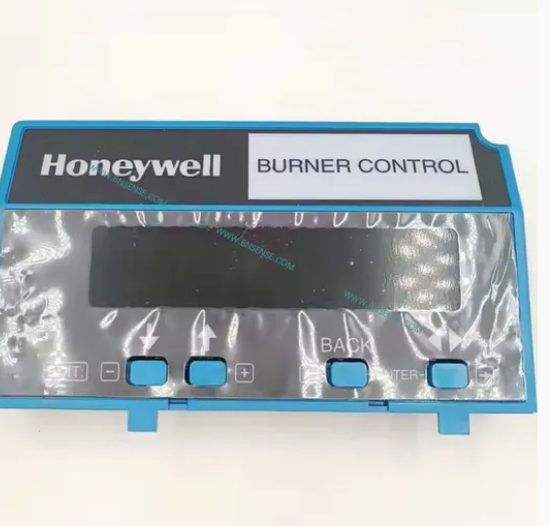

APPLICATIONThe S7800A Keyboard Display Module (KDM) provides first-out annunciation and system diagnosis using a two-row by twenty-column readout. The KDM provides local or remote annunciation of operation and fault information, remote reset, report generation, burner control data and diagnostic information. The KDM is part of the 7800 SERIES of microprocessor-based burner controls for gas, oil, coal or combination fuel single burner applications. The 7800 SERIES is programmed to provide a level of safety, functional capabilities and features beyond the capacity of conventional controls.FEATURES• Application flexibility.• Communication interface capability.• Dependable, long-term operation provided by microcomputer technology.• First-out annunciation and system diagnostics provided by a 2-row by 20-column display.• First-out expanded annunciation with 24 limit and interlock Light Emitting Diodes (LED).• Local or remote annunciation of operation and fault information.• UL Class 4 rating when P/N 204718A,C NEMA 4 cover is used.• Remote reset.• Report generation.• Burner controller data:--Sequence status.-- Sequence time.-- Hold status.-- Lockout/alarm status.-- Flame signal strength.-- Expanded annunciator status.-- Total cycles of operation.-- Total hours of operation.-- Fault history of six most recent faults: • Cycles of operation at time of fault. • Expanded annunciator data at time of fault. • Fault message and code. • Hours of operation at time of fault. • Sequence status at time of fault. • Sequence time at time of fault.-- Diagnostic information: • Device type. ïFlame amplifier type. • Flame failure response time (FFRT). • Manufacturing code. ïOn-Off status of all digital inputs and outputs. • PREPURGE time selected. • Software revision and version of 7800 SERIES Relay Module and KDM. • Status of configuration jumpers. • Status of Run/Test Switch.
SPECIFICATIONSElectrical Ratings: Voltage and Frequency: 13 Vdc peak full wave rectified (+20/-15%).Power Dissipation: 7W maximum.VA Consumption: 2 VA maximum.Terminal Ratings: Power: 13 Vdc peak full wave rectified. Earth Ground.Environmental Ratings:Ambient Temperature Ranges: Operating: -40°F (-40°C) to +140°F (+60°C). Storage: -60°F (-51°C) to +150°F (+66°C). Humidity: 85 percent relative humidity continuous, noncondensing.NOTE: UL Class 4 rating when P/N 204718A,C NEMA 4 Cover is used.Vibration: 0.5G environment.

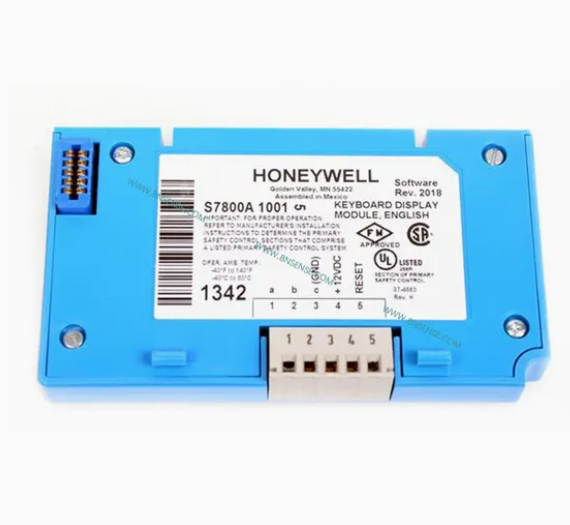

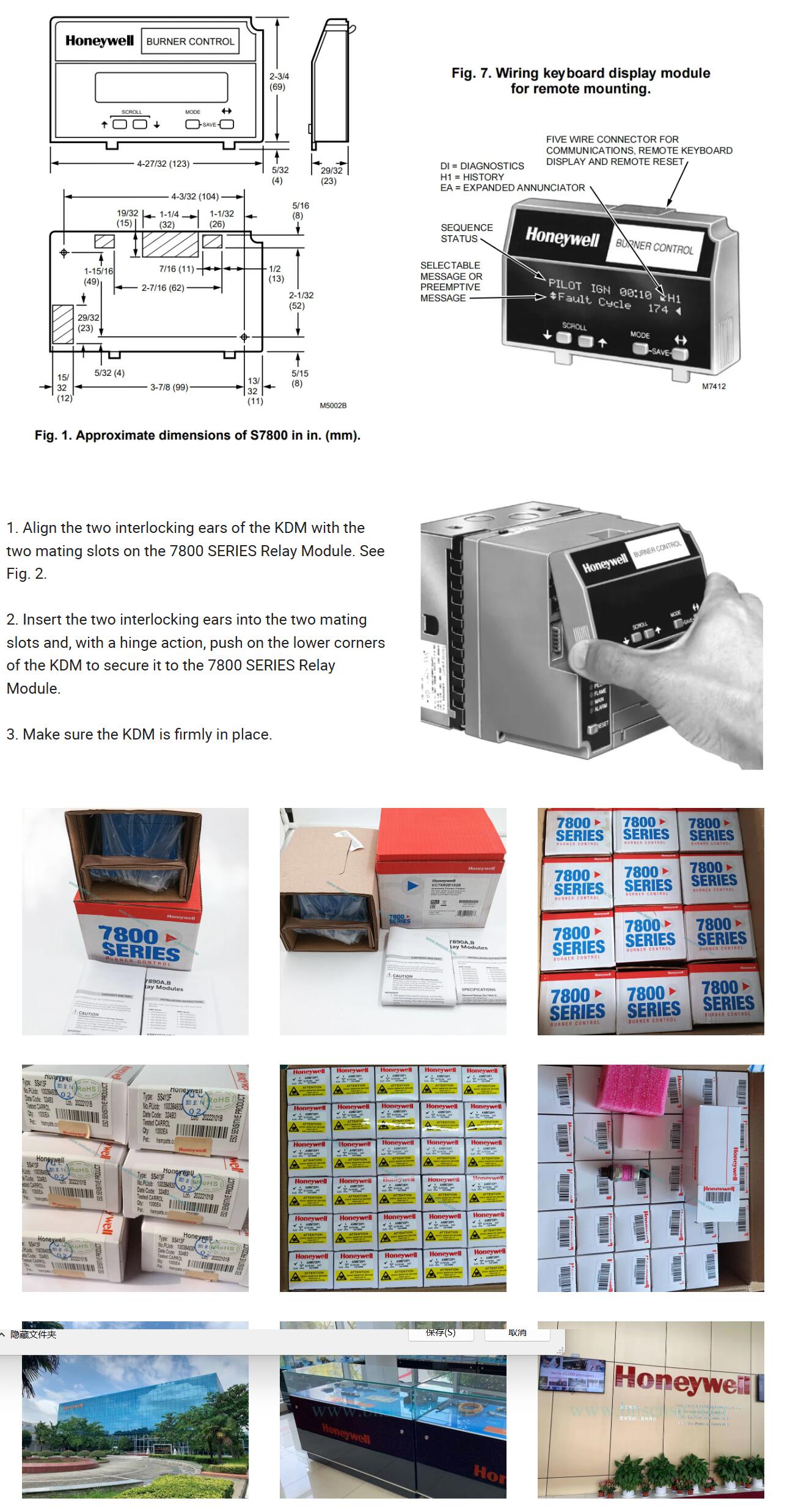

Mechanical: Dimensions: See Fig. 1.Weight: 4 ounces (124 grams), unpacked.Display: 40 character (2 rows by 20 columns).Languages:S7800A1001 English language display.S7800A1035 French language display.S7800A1043 German language display.S7800A1050 Italian language display.S7800A1068 Spanish language display.S7800A1118 Japanese (Katakana) language display.S7800A1126 Portuguese language display
