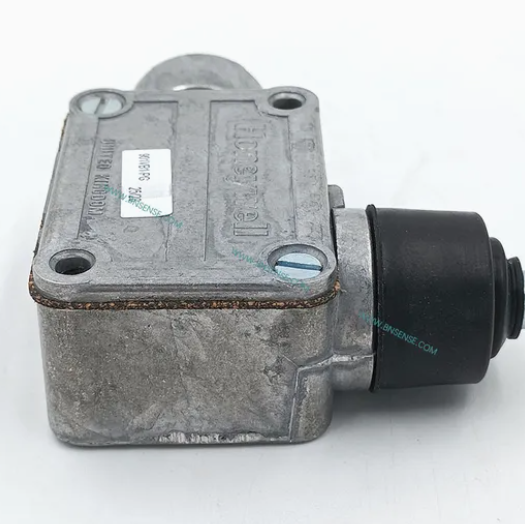

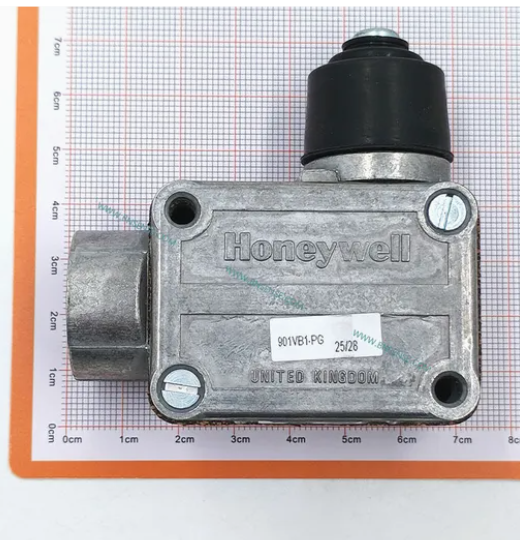

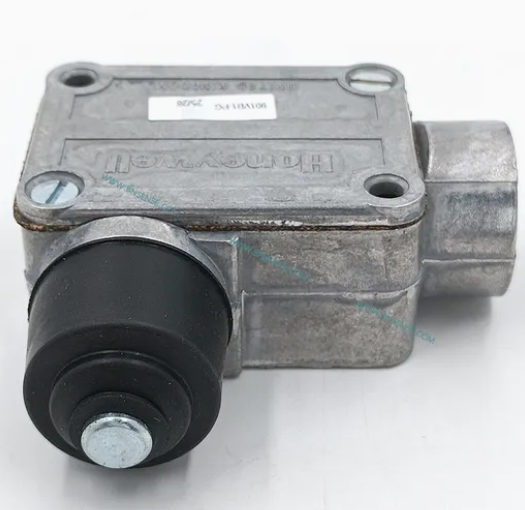

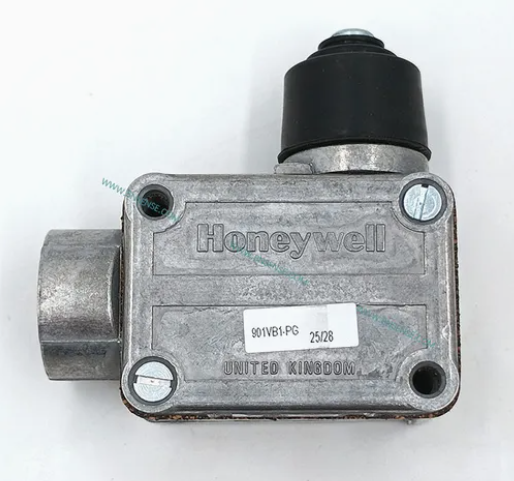

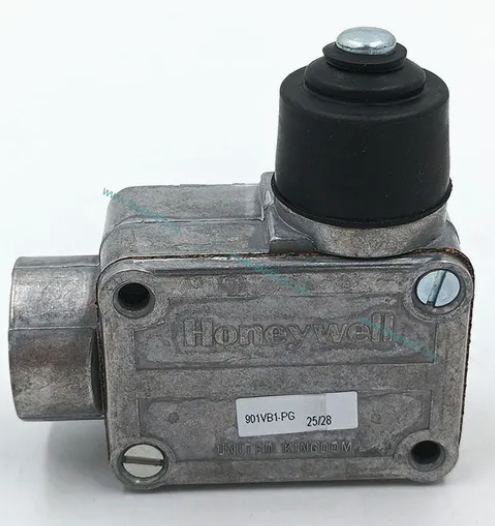

901VB1-PG

Tech Specifications

Product Description

The series VB switches are rugged, yet inexpensive devices.These limit switches have been designed for industrial applications. They are splash proof against oil and water but are not intended for submerged operation. Mounting and connection are easy. This series incorporates either 1 or 2 MICRO SWITCH V3 precision switches in a die cast housing. The basic switches are easily replaceable.

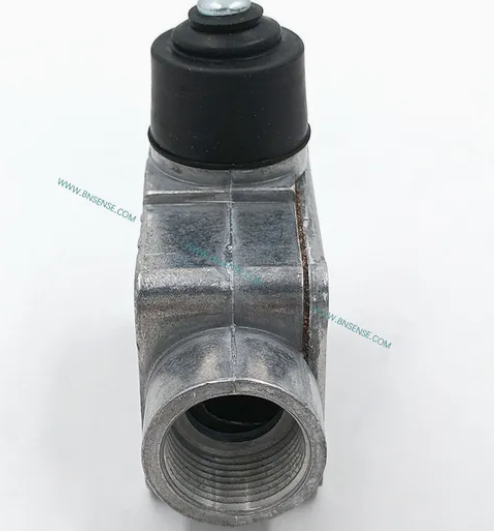

ConstructionThe series VB switches are housed in a ruggedly constructed aluminium die cast body with single entry conduit thread. A choice of conduit threads is available. Boot seals are provided toprotect against oil and water to lP65. The basic switches are in SPDT or DPDT circuitry, and are easily replaceable.

Features

• Rugged construction

• Splash proof - lP65

• Basic switch easily replaced

• SPDT or DPDT circuitry available

• Wide operating temperature range -0°Cto +70°C• Switch mounting and wire connection areeasily made• Conduit thread choice• Special listings available, upon request, withoperating temperature range of -30°C to +70°C

Technical Date

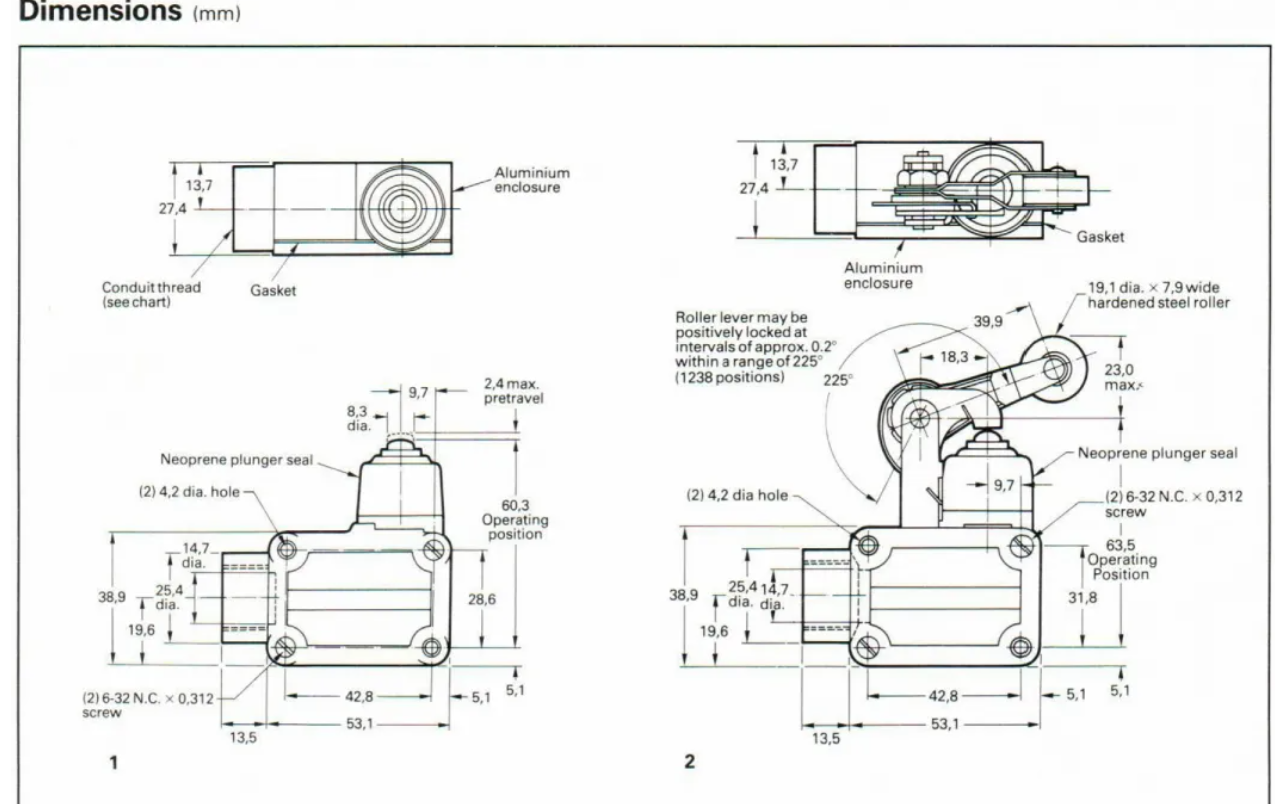

Order Guide
0.F.= Operating forceR.F.= Release forceP.T.= PretravelO.T.= OvertravelD.T.= Differential pretravel

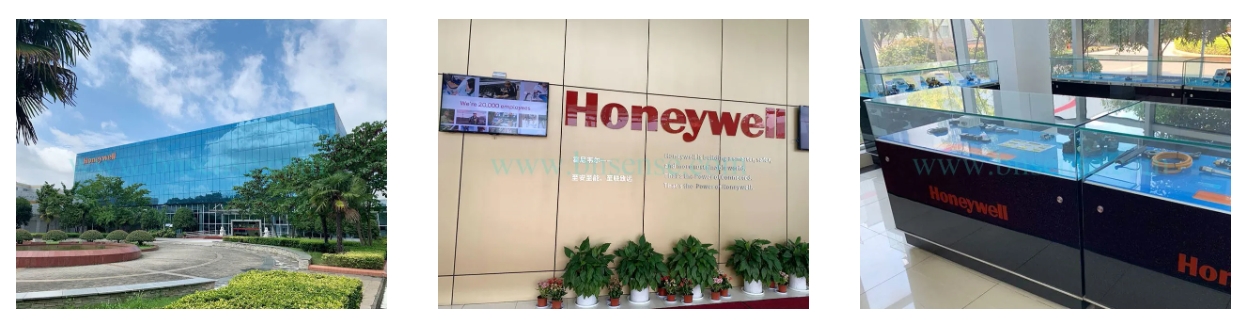

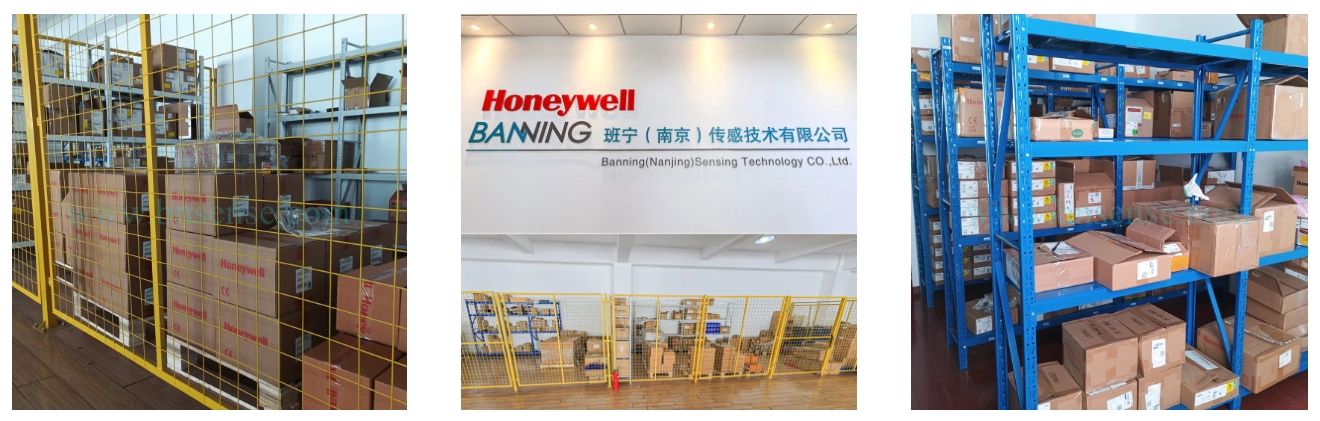

BNSENS (Nanjing) Sensor Technology Co., Ltd. is located in Nanjing, China. It is a high-tech enterprise specializing in the development, manufacturing and trade of sensor products. The company has brought together a group of outstanding technical experts in various fields such as automation, electronics, machinery and computers. All employees of the company have college degrees or above. It adopts the world-class management and operation model and 6 sigma quality system. At present, the company's main products are pressure, liquid level, flow, current, switches, etc. The company's users are all over the country, and some products have been exported to Japan, South Korea and Southeast Asia.
