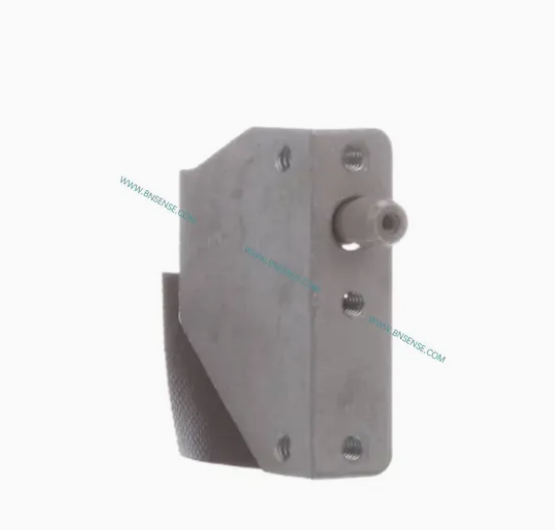

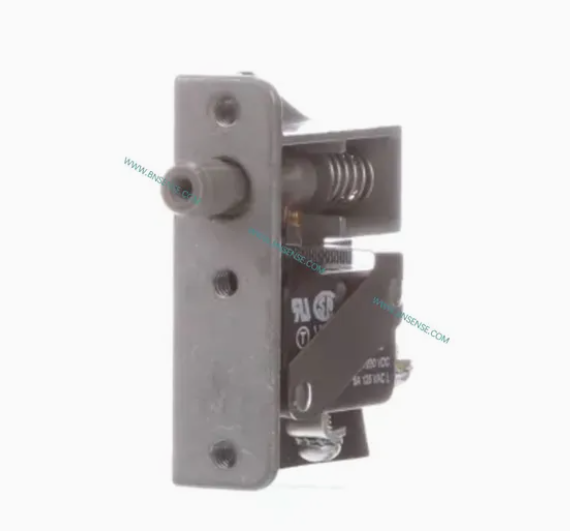

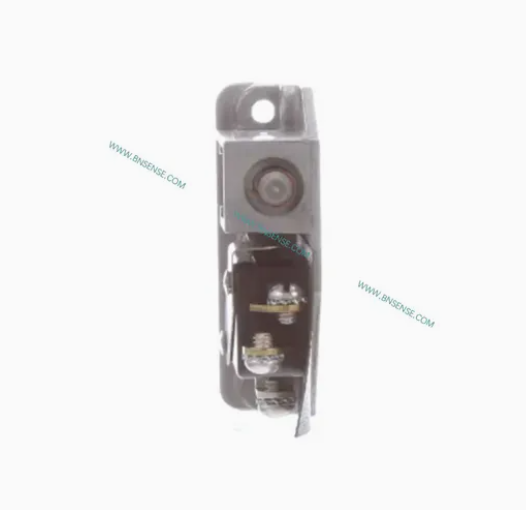

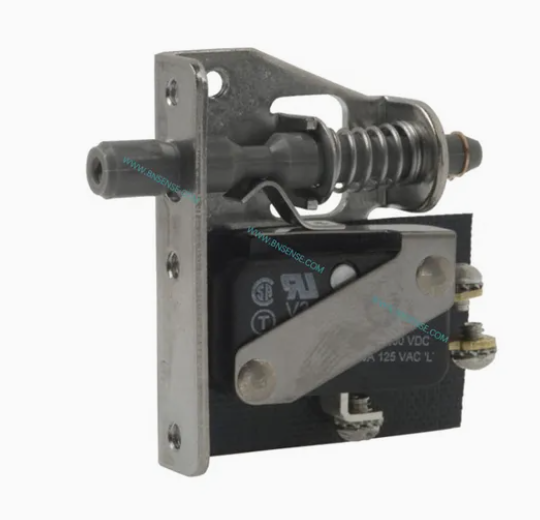

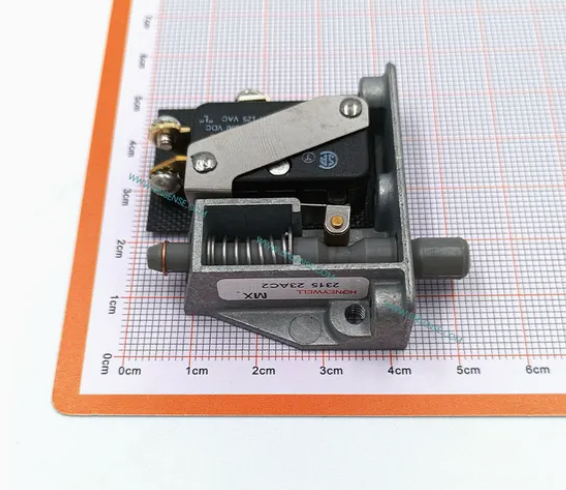

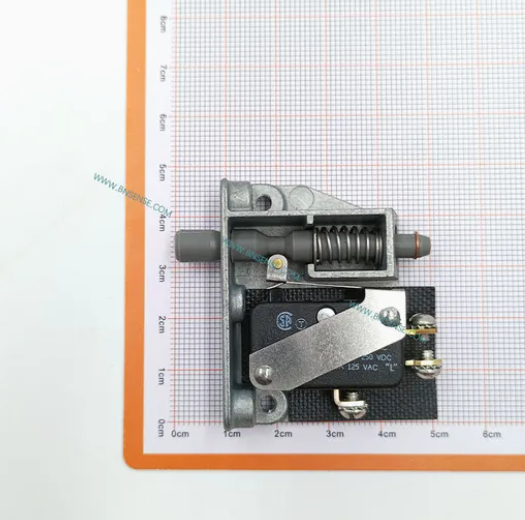

23AC2
Product Description
When the application is more complex than a "stand alone" switch can provide, consider the Honeywell MICRO SWITCH™ AC Series Door Switch. The Honeywell AC Series switch assembly monitors the position of a service door or panel whether "closed" or "open". The Honeywell AC Series switches are a compact switch assembly designed for equipment applications ranging from vending machine service doors or panels, monitoring doors for truck trailers, and military-related doors and/or panels. When the equipment (door or panel, etc.) which is electrically interlocked through the Honeywell AC Series switch is opened, the action of the AC Series switch disconnects the electrical power. The Honeywell AC Series switch can provide an electrical signal to an annunciator circuit such as a light or horn indicating the door or panel is open. Another feature that is common to most Honeywell AC Series switch assemblies is a "pull-to-override" positionwhich allows the service door to be open and yet apply electrical power through the switch assembly. The "pull-to-override" switch position could be useful for trouble shooting equipment as required.Honeywell AC Series switch assemblies are available with up to four switch elements which can provide discrete outputs as required for control and/or indicator circuits.
Features and Benefits
What makes our switches better?
Available with Honeywell MICRO SWITCH™ V3, V7, SM, SE, or BZ Series switches; there are no exposed contacts
Temperature ranges (-40 °C to 85 °C [-40 °F to 185 °F]) allow for reliable performance usage in harsh conditions
Many catalog listings have internal threaded actuators that allow customers to attach auxiliary plungers
Choice of switch actuation: two position momentary, two position momentary with a twist-latch feature, or a three position with push momentary and pull maintained action
Right form factor combined with the right operating characteristics make a precise combination for door switch applications.
RELIABLE PERFORMANCE
The switch automatically disconnects electrical power to equipment when service door, panel, or drawer is opened.
CHOICE OF SWITCH ACTUATION
Choose the standard switch assembly with one of three mechanical positions: push-momentary with a pull-to-override maintained position, the two position momentary switch assembly, or the two position switch assembly with a pushmomentary and a push-and-turn-to-latch maintained position.Enhanced switch offerings
MOUNTING EASE
The switch assembly is designed to be installed as a side mount or end mount for
versatility.
WIDE ELECTRICAL RANGE
Wide range of current from less than 1 A to 21 A to interface with control and
signal circuits.Tough answer for tough door interlock needs
AGENCY CERTIFICATIONS
Select switch assemblies are certified to CSA and UL component recognition where agency certification is desired or required. When the application involves military requirements, several different styles of AC Series door switches are offered with military specifications.
CIRCUIT FLEXIBILITY
Switch assemblies are available with single throw or double throw action with up to four poles to provide control circuits and optional signal circuits as required.
TERMINATION OPTIONS
Two different types of switch termination (screw or quick connect blades) are available to meet machine design requirements.
Potential Applications
VENDING MACHINES
Indicates front panel of vending machine is closed
HVAC EQUIPMENT
Serves as interlock for one or more service panels
APPLIANCES
Equipped as interlock for service panels or access panels
COMMUNICATION EQUIPMENT
Provides interlocking capability for service or access panels
BUSINESS EQUIPMENT
Provides interlocking capability for service or access panels
TRUCK TRAILER OR SEMI-TRUCK TRAILER DOORS
Indicates the door is closed and/or latched
COMMERCIAL DOORS AND GATES
Monitors the door or gate is open or closed
MILITARY EQUIPMENT
Serves as a cabinet and service panel interlock for land-based electrical/electronic equipment
23AC2 Tech Specifications
| Description | Product Attribute |
|---|---|
| Manufacturer | Honeywell |
| Product Category | Basic / Snap Action Switches |
| Type | Door Switch |
| Contact Form | SPDT |
| Switch Function | ON - (OFF), OFF - (ON) |
| Actuator | Threaded Plunger |
| Current Rating | 15 A |
| Voltage Rating AC | 250 VAC |
| Voltage Rating DC | 250 VDC |
| Operating Force | 18 N |
| Termination Style | Screw |
| Mounting Style | Chassis Mount |
| Contact Material | Silver |
| Illuminated | Non-Illuminated |
| Maximum Operating Temperature | + 85 °C |
| Minimum Operating Temperature | - 40 °C |
| Product Type | Snap Action Switches |
| Subcategory | Switches |
AC Series Specifications • Plastic Plunger Order Guide
F.P. • Free Position
O.P. • Operating Position
D.P. • Depressed Position
| CatalogListing | Figure No. | Description | SwitchType | Elec.Rat-ing | Plunger Action | F.P.max.mm [in.] | O.P.min.mm [in.] | D.P.max.mm [in.] |
| 8AC9(MS16106-3) | 7 | SPDT (4), solderterminals, threadedplunger | SM | B | 3 position,push-momentary,pull-maintained | 9,52[0.375] | 5,15[0.203] | 3,17[0.125] |
| 22AC1 | 10 | SPDT (1), screwterminals | V3 | C | 3 position,push-momentary,pull-maintained | 9,52[0.375] | 5,15[0.203] | 3,17[0.125] |
| 22AC2 | 11 | SPDT (1), screwterminals, threadedplunger | V3 | C | 3 position,push-momentary,pull-maintained | 9,52[0.375] | 5,15[0.203] | 3,17[0.125] |
| 22AC2-UL | 12 | SPDT (1), screwterminals, threadedplunger | V3 | C | 3 position,push-momentary,pull-maintained | 9,52[0.375] | 5,15[0.203] | 3,17[0.125] |

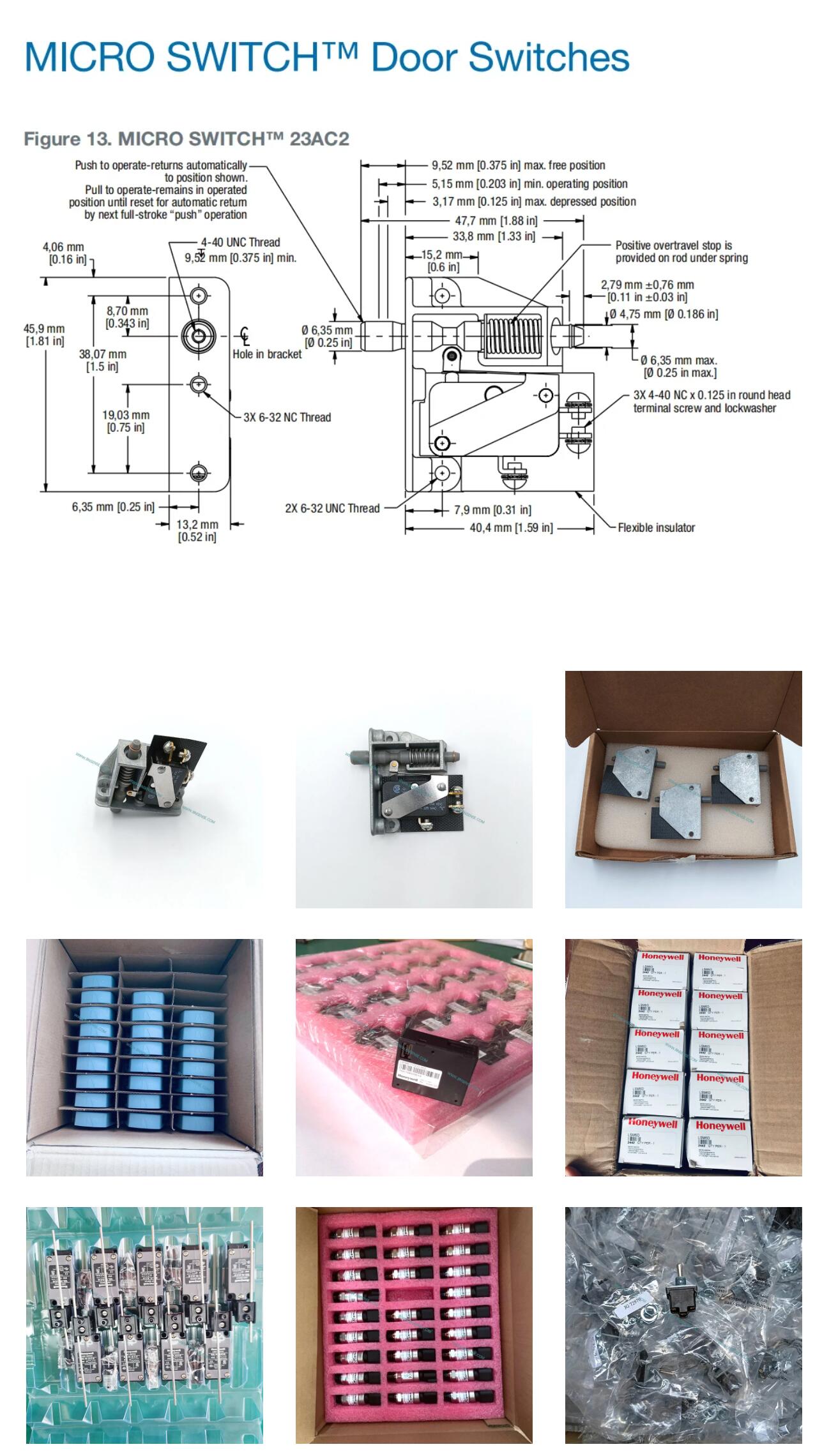

| 23AC2 | 13 | SPDT (1), screwterminals, threadedplunger | V3 | C | 3 position,push-momentary,pull-maintained | 9,52[0.375] | 5,15[0.203] | 3,17[0.125] |
| 23AC81 | 14 | SPDT (1), quickconnect terminals,threaded plunger | V7 | F | 2 position,push-momentary | 9,52[0.375] | 5,15[0.203] | 3,17[0.125] |
| 24AC1 | 15 | SPDT (2), screwterminals | V3 | C | 3 position,push-momentary,pull-maintained | 9,52[0.375] | 4,75[0.187] | 3,17[0.125] |
| 4AC54(MS16106-2) | 4 | SPDT (2), screwterminals, threadedplunger | V3 | E | 3 position,push-momentary(1 sw.), pull-maintained (bothswitches) | 9,52[0.375] | 4,75[0.187] | 3,17[0.125] |
| 4AC55(MS16106-5) | 5 | SPDT (2), screwterminals, threadedplunger | V3 | E | 3 position,push-momentary,pull-maintained | 9,52[0.375] | 4,75[0.187] | 3,17[0.125] |
| 423AC2-E9 | 16 | SPDT (1), quick-connect terminals,threaded plunger | V7 | D | 3 position,push-momentary,pull-maintained | 9,52[0.375] | 5,15[0.203] | 3,17[0.125] |
Electrical Ratings (in amperes)
| Rating Code | Electrical Rating | |||||||||
| A | 15 A, 125, 250, or 480 Vac; 1/2 A, 125 Vdc; 1/4 A, 250 Vdc | |||||||||
| B | 5 A, 125 or 250 Vac30 Vdc ind.: 3 A (sea level) and 2.5 A (50,000 ft)30 Vdc res: 5 A (sea level and 50,000 ft); max. in-rush 24 A | |||||||||
| C | 15 A, 125 or 250 Vac; 5 A, 125 Vac"L"; 1/2 A, 125 Vdc;1/4 A, 250 Vdc; 1/2 hp, 125 or 250 Vac | |||||||||
| D | 21 A, 1 hp 125, 250, 277 Vac; 2 hp 250, 277 Vac | |||||||||
| E | 10 A res. and ind. (sea level), 28 Vdc and 125 Vac10 A res. (50,000 ft), 28 Vdc and 125 Vac10 A ind. (50,000 ft), 125 Vac6 A ind. (50,000 ft), 28 Vdc | |||||||||
| F | 5 A, 125, 250, 277 Vac 1/10 hp, 250 Vac | |||||||||
