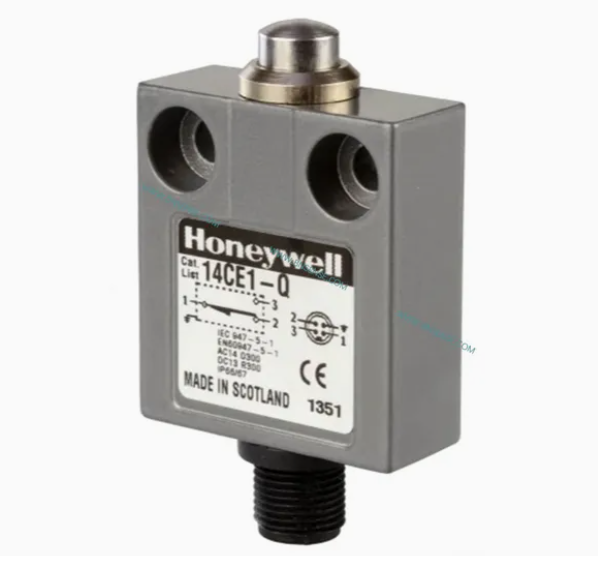

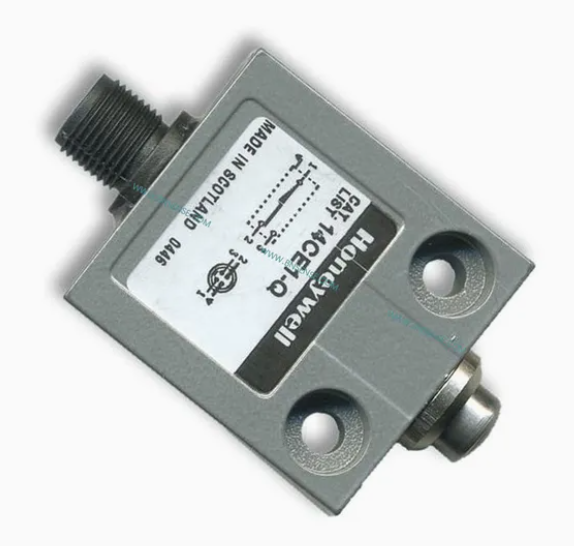

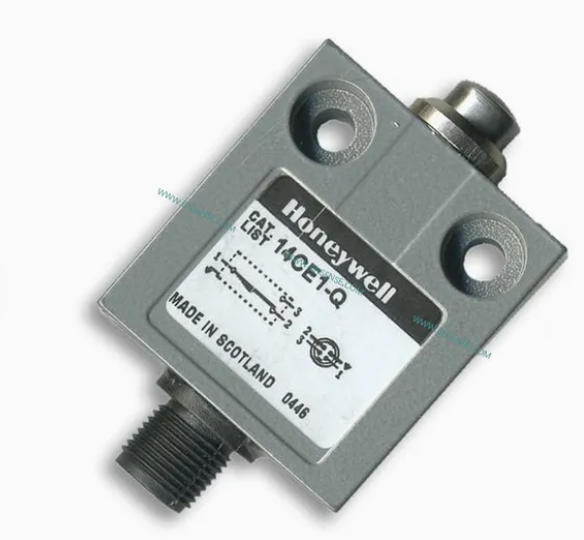

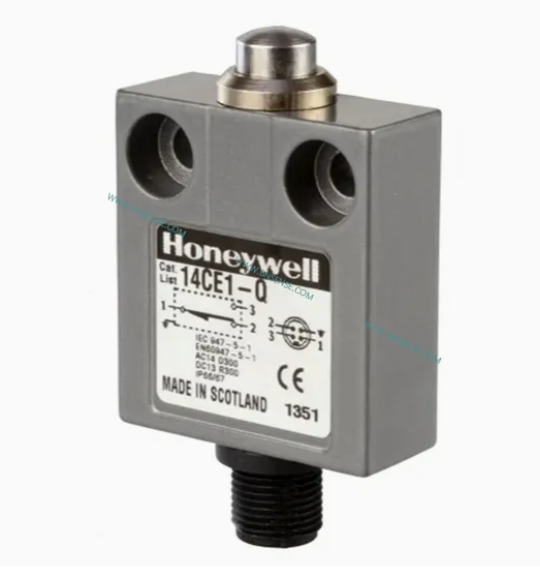

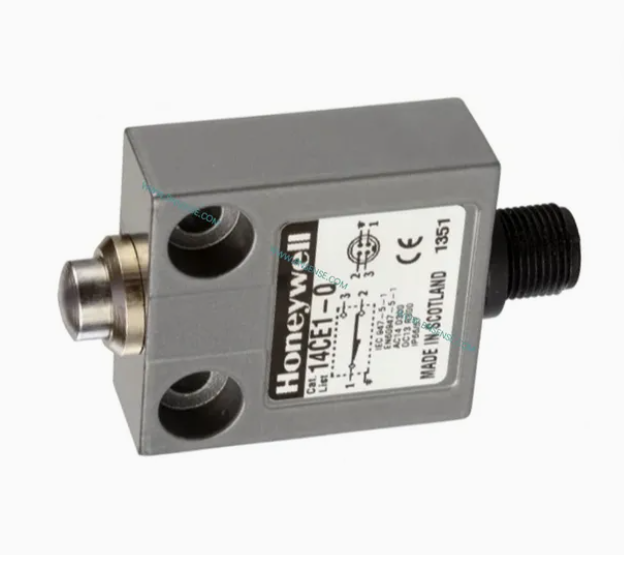

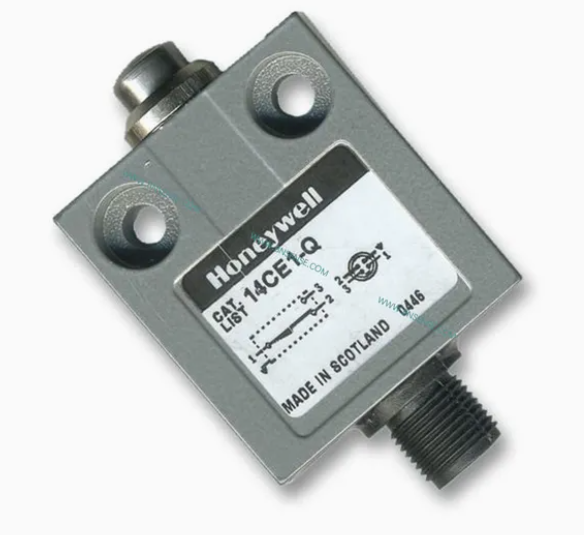

14CE1-Q

Specifications

Product Description

All MICRO SWITCH™ 14CE Series miniature precision switches incorporate fluorocarbon diaphragm sealing to provide reliable protection, meeting IP65, IP66, IP67, and IP68, as well as NEMA 1, 2, 3, 3R, 4, 6, 6P, and 13 requirements. Versions with a boot seal also meet NEMA 12 requirements (dust, falling dirt, liquid media with solid contaminates). The cable or connector and basic switch terminals are encapsulated in an epoxy sealant, offering excellent resistance in harsh environments. For low temperatureapplications (down to -40 °C, -40 °F), CE Series switches can be supplied with low temperature seals and lubricant.

The CE Series switches are rugged and versatile switches which can be applied indoors in many harsh factory floor applications, as well as on outdoor equipment in extreme temperatures. A full range of actuators are available, including pin plungers, roller plungers, side rotary, multi-directional wire, and manually operated. The switches are also available with the industry standard, M12 micro-change 4-pin connector. MICRO SWITCH 14CE products meet European and Asian CE requirements.

VALUE TO CUSTOMERS

• Big performance in a small package

• Delivers consistent performance in many demanding environments where petroleum, synthetic, or water based fluids are present

• Product variation within defined nomenclature

FEATURES

• Rugged, miniature construction means minimal real estate on equipment

• NEMA 1, 2, 3, 3R, 4, 6, 6P, 12 (boot seal), 13, and IP65/66/67/68 environmental sealing

• Pre-leaded (Cenelec cable) or supplied with a M12 four-pin connector

• Wide selection of actuators and cable length variations with side and bottom exit cable/connector options

• 25 mm mounting centers engineered with a MICRO SWITCH SM switch for consistent, precise actuation

• Well suited for up to 10 million actuation cycles (Up to 5 million actuation cycles for wobble actuators)

• Gang mounting capability to provide a multi-plunger limit switch

• Low temperature variants available for indoor and outdoor applications

• CE approvals for European and Asian use

POTENTIAL APPLICATIONS

• Machine tools

• Off-road equipment

• Material handling

• Access and mobility solutions

• Textile machinery

• Robotics

• Packaging equipment

• Commercial appliances

• Print trade machinery

• Agricultural machinery

DIFFERENTIATION

• Diaphragm seal between the actuator and the switch cavity for high performance sealing

• CE Series incorporates MICRO SWITCH SM basic switch for consistent, precise actuation

• Side exit termination for space constraints
