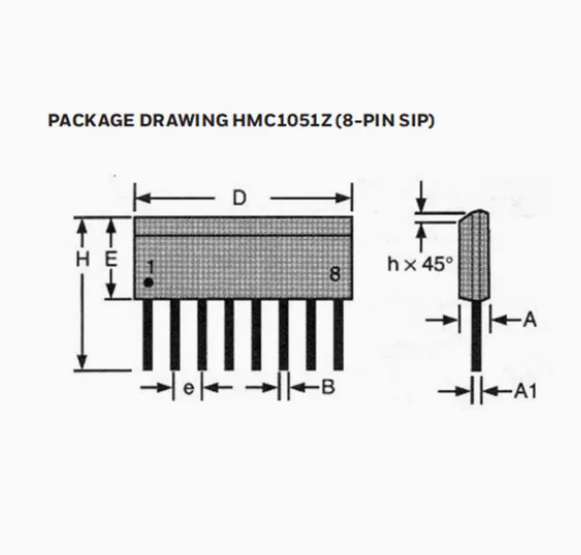

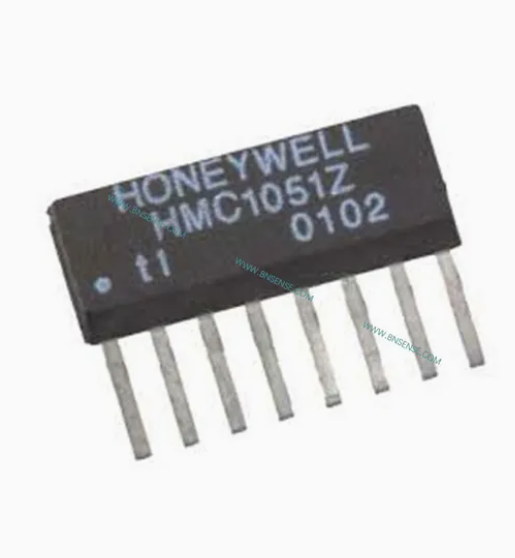

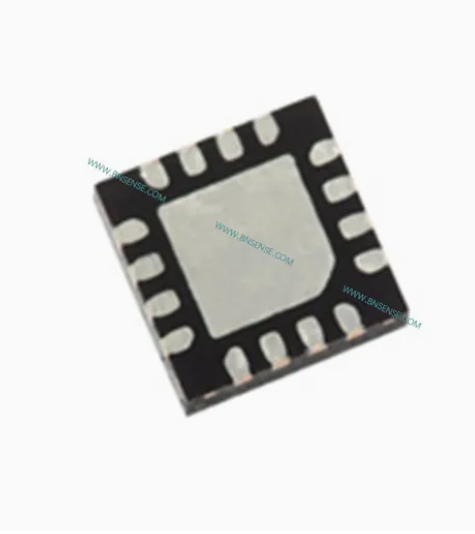

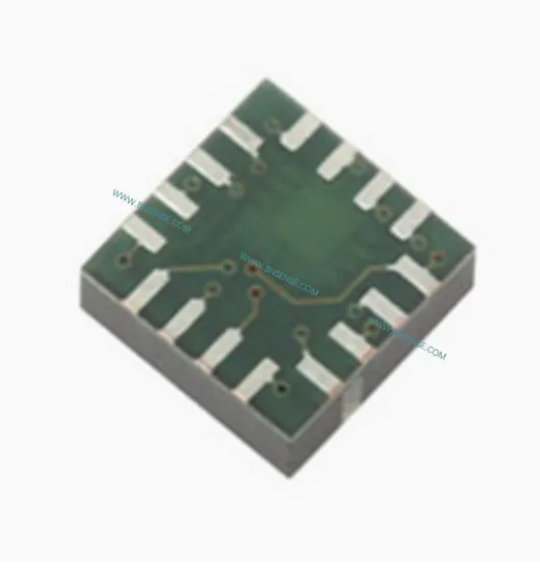

HMC1051Z
HMC1051Z Technical parameters, package parameters
| type | description |
|---|---|
| Installation: | Through Hole |
| Number of pins | 8 Pin |
| Supply voltage | 12.0 V |
| encapsulation | SIP |
| Supply current | 4.00 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature(Min) | -40 ℃ |
| Supply voltage | 3 V |

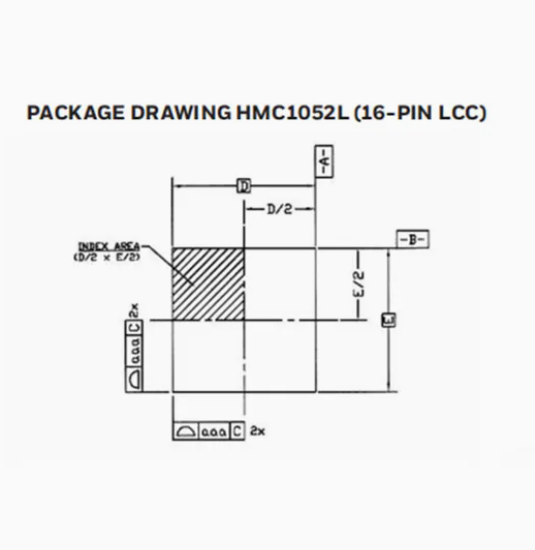

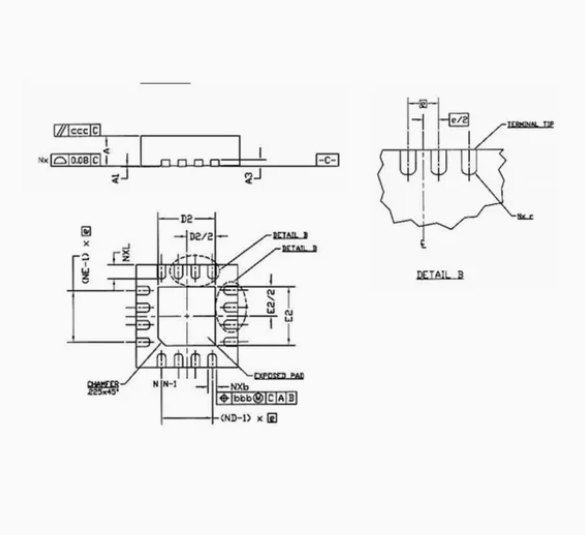

HMC1051Z Dimensions, physical parameters, etc
| type | description |
|---|---|
| Product life cycle | Active |
| Packing: | Tube |
| height | 3.99 mm |
Product Description
The Honeywell HMC1051, HMC1052 and HMC1053 are magnetoresistive sensors designed for low field magnetic sensing.
Various packaging options have been created from the basic HMC1052 sensor chipto create 1, 2 and 3-axis magneto-resistive sensors for cost effective and small sizesolutions. The advantage of the HMC105X family of sensors is in the near-perfectlyorthogonal dual sensor on a single chip with shared set/reset and offset coils/strapsincluded.
The HMC105X family utilizes Honeywell's Anisotropic Magnetoresistive (AMR) technology that provides advantages over coil based magnetic sensors. They are extremely sensitive, low field, solid-state magnetic sensors designed to measure direction and magnitude of Earth's magnetic fields. Honeywell's Magnetic Sensors are among the most sensitive and reliable low-field sensors in the industry. Applications for the HMC105X family of sensors include low-cost Compassing, Magnetometry, and Current Sensing.
Honeywell continues to maintain product excellence and performance by introducing innovative solid-state magnetic sensor solutions. These are highly reliable, top performance products that are delivered when promised. Honeywell's magnetic sensor solutions provide real solutions you can count on.
Features• Miniature Surface-Mount Packages• Leaded and Leadless Packages• Low Voltage Operations (1.8V)• Low Cost• Tape & Reel Packaging Options• 4-Element Wheatstone Bridge• Wide Magnetic Field Range (+/-6 Oe)• Patented Offset and Set/Reset Straps
Benefits
• Small Sizes for Compact Applications
• Compatible with High Speed SMT Assembly and Prototyping
• Compatible for Battery Powered Applications
• Designed for High Volume, Cost Effective OEM Designs
• High Volume OEM Assembly
• Low Noise Passive Element Design
• Sensor Can Be Used in Strong Magnetic Field Environments
• Stray Magnetic Field
SPECIFICATIONS
| CHARACTERISTICS | CONDITIONS* | MIN | TYP | MAX | UNITS |
| BRIDGE ELEMENTS | |||||
| Supply(3) | Vbridge referenced to GND | 1.8 | 3.0 | 20 | Volts |
| Resistance(2) | Bridge current = 10mA | 800 | 1000 | 1500 | ohms |
| Operating Temperature(3) | Ambient | -40 | 125 | °C | |
| Storage Temperature(3) | Ambient, unbiased | -50 | 125 | °C | |
| Field Range(3) | Full scale (FS) - total applied field | -6 | +6 | gauss | |
| Linearity Error(3) | Best fit straight line± 3 gauss± 6 gauss | 0.51.3 | %FS | ||
| Hysteresis Error(3) | 3 sweeps across ±3 gauss | 0.06 | %FS | ||
| Repeatability Error(3) | 3 sweeps across ±3 gauss | 0.05 | %FS | ||
| Bridge Offset(2) | Offset = (OUT+) - (OUT-)Field = 0 gauss after Set pulse | -1.25 | ±0.5 | +1.25 | mV/V |
| Sensitivity(2) | Set/Reset Current = 0.5A | 0.8 | 1.0 | 1.2 | mV/V/gauss |
| Noise Density(3) | @ 1Hz, Vbridge=5V | 50 | nV/sqrt Hz | ||
| Resolution(3) | 10Hz Bandwidth, Vbridge=5V | 280 | μgauss | ||
| Bandwidth(3) | Magnetic signal (lower limit = DC) | 3 | MHz | ||
| Sensitivity Tempco(3) | Ta= -40 to 125°C, Vbridge=5V | -2900 | ppm/°C | ||
| Bridge Ohmic Tempco(3) | Vbridge=5V, Ta= -40 to 125°C | 2100 | 2500 | 2900 | ppm/°C |
| Sensitivity Ratio ofX,Y Sensors(HMC1052 Only)(3) | Ta= -40 to 125°C | 75 | 100 | 120 | % |
| SET/RESET STRAP | |||||
| Resistance(2) | Measured from S/R+ to S/R- | 3 | 4.5 | 6 | ohms |
| Current(3) | 0.1% duty cycle, or less,2μsec current pulse | 0.44 | 0.5 | 2 | Amp |
| Resistance Tempco(3) | Ta= -40 to 125°C | 2350 | ppm/°C | ||
| OFFSET STRAP | |||||
| Resistance, A,B(2)Resistance, C(2) | Measured from OFF+(A,B,C) to OFF-(A,B)Measured from OFF+(A,B,C) to OFF-(C) | 125 | 158 | 1811 | OhmsOhms |
| Offset Constant, A,B(3)Offset Constant, C(3) | DC CurrentField applied in sensitive direction | 11.510 | mA/gaussmA/gauss | ||
| Resistance Tempco(3) | Ta= -40 to 125°C | 3300 | ppm/°C | ||
(1) By Design
(2) Tested in Production. Unless otherwise stated, test conditions are as follows: Power Supply = 12VDC, Ambient Temp = 25°C, Set/Reset switching is active except stated otherwise.
(3) Characterized
