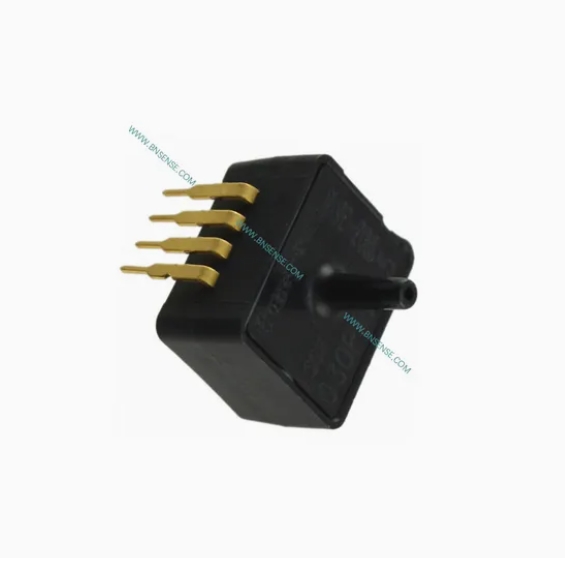

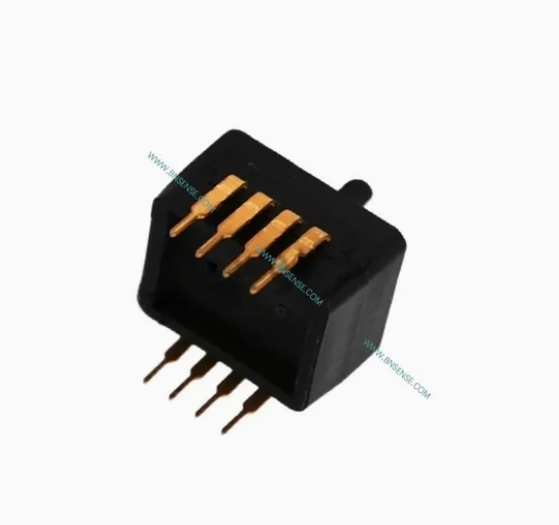

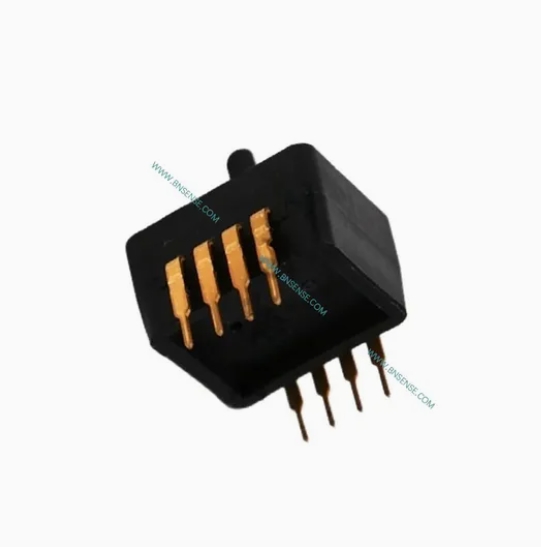

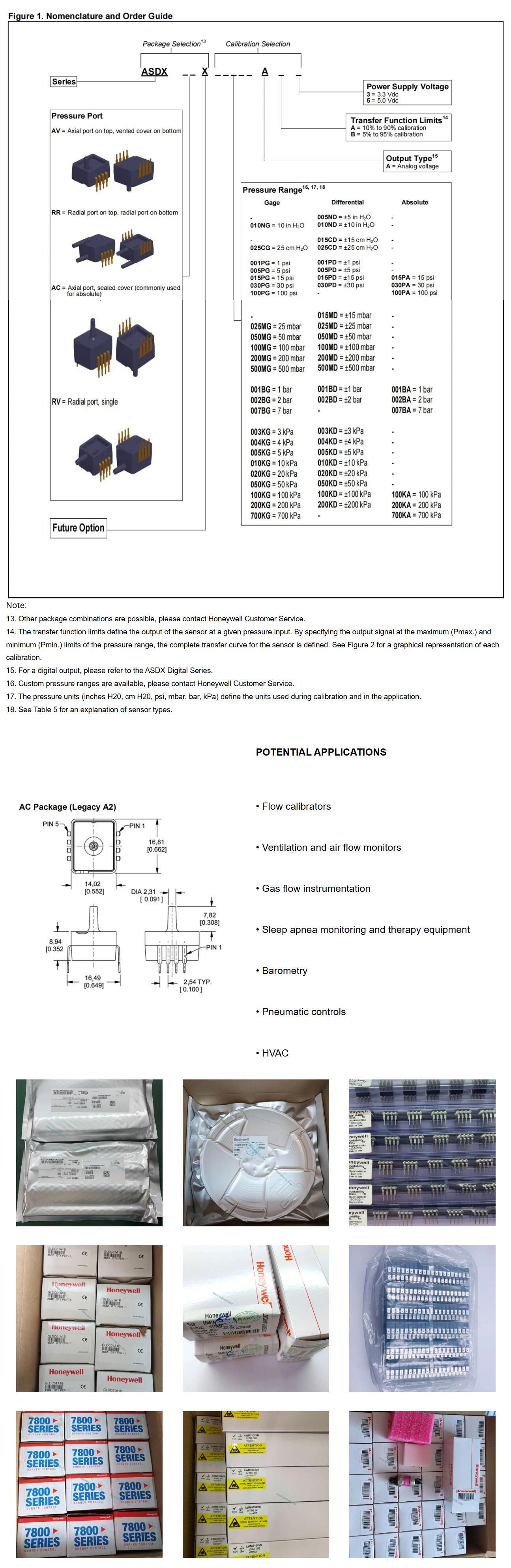

ASDXACX030PAAA5
Tech Specifications
| Description | Product Attribute |
|---|---|
| Manufacturer | Honeywell |
| Product Category | Board Mount Pressure Sensors |
| Pressure Type | Absolute |
| Operating Pressure | 30 psi |
| Accuracy | 2 % |
| Output Type | Analog |
| Mounting Style | Through Hole |
| Operating Supply Voltage | 5 V |
| Port Type | Single Axial Barbless |

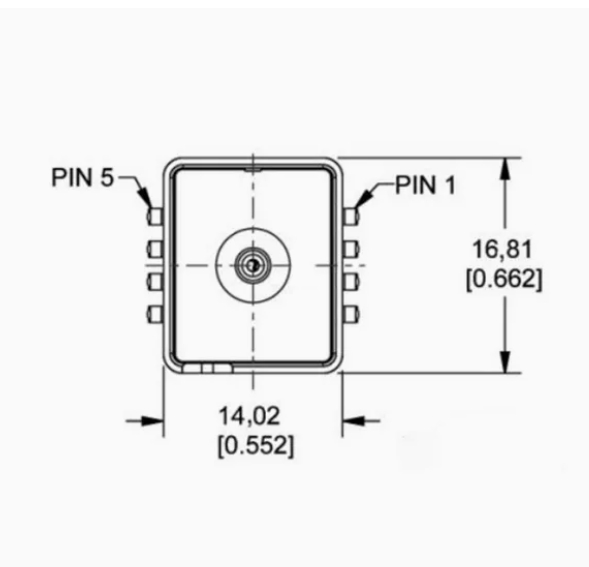

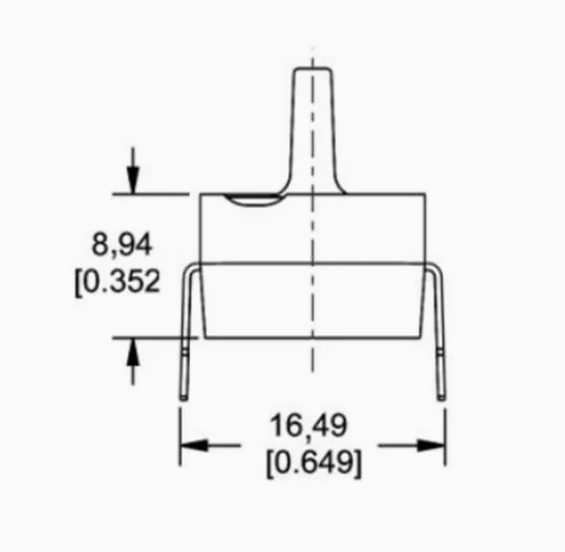

| Package / Case | DIP-8 |
| Minimum Operating Temperature | - 20 C |
| Maximum Operating Temperature | + 105 C |
| Series | ASDX |
| Packaging | Bulk |

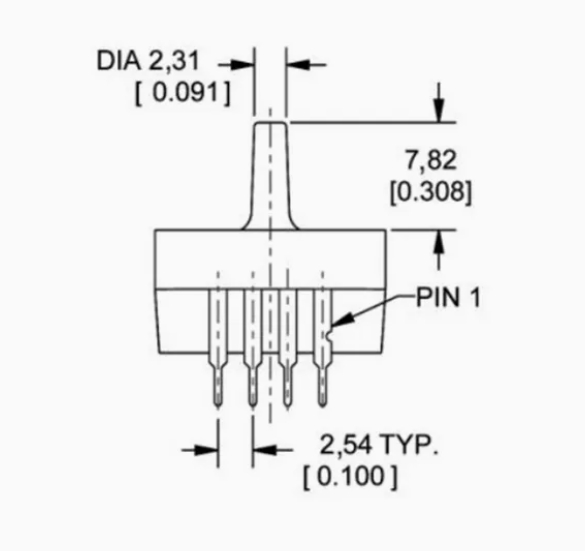

| Port Size | 2.31 mm |
| Product Type | Board Mount Pressure Sensors |
| Subcategory | Sensors |
| Supply Voltage - Max | 6 V |
| Supply Voltage - Min | 3 V |
Product Description
The ASDX Series is a Silicon Pressure Sensor offering a ratiometric analog interface for reading pressure over the specified full scale pressure span and temperature range. The ASDX is fully calibrated and temperature compensated for sensor offset, sensitivity, temperature effects and non-linearity using an on-board Application Specific Integrated Circuit (ASIC). Calibrated output values for pressure are updated at approximately 1 kHz.
The standard ASDX is calibrated over the temperature range of 0 °C to 85 °C [32 °F to 185 °F]. The sensor is characterized for operation from a single power supply of either 3.3 Vdc or 5.0 Vdc.
These sensors are available to measure absolute, differential and gage pressures. The absolute versions have an internal vacuum reference and an output value proportional to absolute pressure. Differential versions allow application of pressure to either side of the sensing diaphragm. Gage versions arereferenced to atmospheric pressure and provide an output proportional to pressure variations from atmosphere.
The ASDX Series sensors are intended for use with noncorrosive, non-ionic working fluids such as air and dry gases. They are designed and manufactured according to standards in ISO 9001.
FEATURES
• Ratiometric 12-bit analog output
• Precision ASIC conditioning and temperature compensated over 0 °C to 85 °C [32 °F to 185 °F]temperature range.
• Low operating voltage
• Absolute, differential and gage types
• Pressure ranges from 10 inches H20 to 100 psi
• Standard calibrations in inches H20, cm H20, psi, mbar, bar, kPa
• Total error band of ±2.0% of full scale span maximum
• RoHS compliant
POTENTIAL APPLICATIONS
• Flow calibrators
• Ventilation and air flow monitors
• Gas flow instrumentation
• Sleep apnea monitoring and therapy equipment
• Barometry
• Pneumatic controls
• HVAC
Absolute Maximum Ratings1
| Parameter | Min | Max | Unit | ||||
| Supply voltage (Vsupply) | -0.3 | 6.0 | Vdc | ||||
| Voltage to any pin | -0.3 | Vsupply + 0.3 | Vdc | ||||
| ESD susceptibility (human body model) | 3 | - | kV | ||||
| Storage temperature | -50 [-58] | 125 [257] | °C [°F] | ||||
| Lead temperature (2 s to 4 s) | - | 250 [482] | °C [°F] | ||||
| External capacitance between Vsupply and ground2 | 100 | 470 | nF |
Operating Specifications
| Parameter | Min. | Typ. | Max. | Unit | |||
| Supply voltage: (Vsupply)3 3.3 Vdc 5.0 VdcSensors are either 3.3 Vdc or 5.0 Vdc per the order guide (see Figure 1). | 3.04.75 | 3.345.04 | 3.65.25 | Vdc | |||
| Supply current | 1.5 | 2.5 | 3.5 | mA | |||
| Compensated temperature range5 | 0 [32] | - | 85 [185] | °C [°F] | |||
| Operating temperature range6 | -20 [-4] | - | 105 [221] | °C [°F] | |||
| Overpressure7 | 2X operating pressure range minimum | ||||||
| Burst pressure8 | 3X operating pressure range minimum | ||||||
| Startup time (power up to data ready) | - | - | 5 | ms | |||
| Response time | - | 1.0 | - | ms | |||
| Upper output clipping limit | 97.5 | - | - | Vsupply | |||
| Lower output clipping limit | - | - | 2.5 | Vsupply | |||
| Minimum load resistance | 5.0 | - | - | kOhm | |||
| Total error band9 | - | - | 2.0 | %FSS10 | |||
| Output resolution | 12 | - | - | bits | |||
Environmental Specifications
| Parameter | Characteristic | ||||||
| Humidity | 0% to 95% RH non-condensing | ||||||
| Vibration | 10 G at 20 Hz to 2000 Hz | ||||||
| Shock | 100 G for 11 ms | ||||||
| Life | 1 million cycles minimum | ||||||
Wetted Materials11
| Parameter | Port 1 (Pressure Port)12 | Port 2 (Reference Port)12 | |||||
| Covers | glass-filled PBT | glass-filled PBT | |||||
| Adhesives | silicone | silicone and epoxy | |||||
| Electronic components | silicon and glass | silicon, glass, and gold | |||||
Notes:
1. Absolute maximum ratings are the extreme limits that the device will withstand without damage to the device.
2. An external bypass capacitor is required across the supply voltage (Pins 1 and 3 - see Figure 4) as close to the sensor supply pin as possible for correct sensor operation.
3. Ratiometricity of the sensor (the ability of the output to scale to the input voltage) is achieved within the specified operating voltage for each
option. Other custom supply voltages are available, please contact Honeywell Customer Service.
4. The sensor is not reverse polarity protected. Incorrect application of excitation voltage or ground to the wrong pin may cause electrical failure.
5. The compensated temperature range is the temperature range (or ranges) over which the sensor will produce an output proportional to pressure within the specified performance limits.
6. The operating temperature range is the temperature range over which the sensor will produce an output proportional to pressure but may not
remain within the specified performance limits.
7. Overpressure is the maximum pressure which may safely be applied to the product for it to remain in specification once pressure is returned to the operating pressure range. Exposure to higher pressures may cause permanent damage to the product.
8. Burst pressure is the maximum pressure that may be applied to any port of the product without causing escape of pressure media. Product
should not be expected to function after exposure to any pressure beyond the burst pressure.
9. Total error band is the maximum deviation in output from ideal transfer function over the entire compensated temperature and pressure range.
Includes all errors due to offset, full scale span, pressure non-linearity, pressure hysteresis, repeatability, thermal effect on offset, thermal effect
on span and thermal hysteresis. Specification units are in percent of full scale span (%FSS).
10. Full scale span (FSS) is the algebraic difference between the output signal measured at the maximum (Pmax.) and minimum (Pmin.) limits of the pressure range.
11. Consult Honeywell Customer Service for detailed material information.
12. For AC pressure port configuration, the "pressure" and "reference" ports are reversed.
