EXHT-AR403

Tech Specifications

Product Description

DESCRIPTION

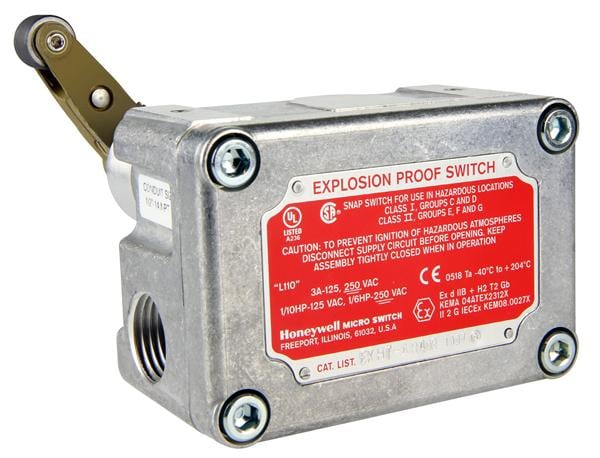

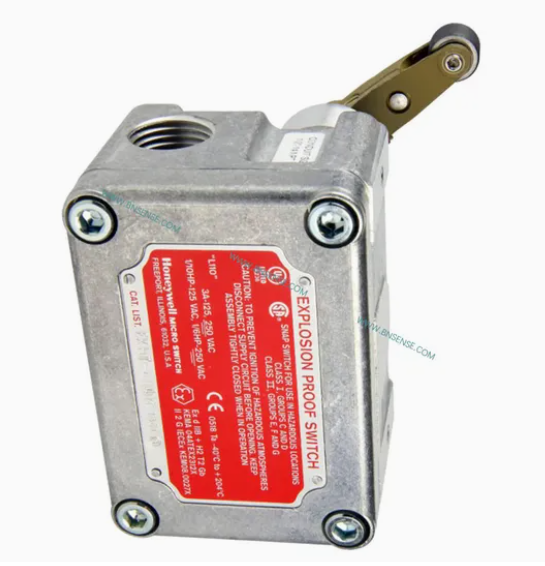

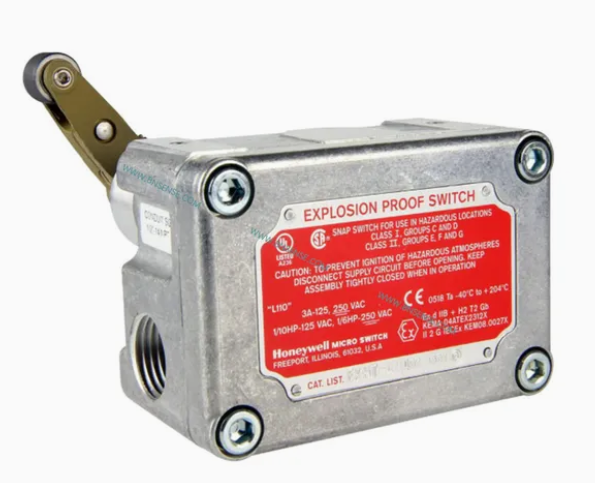

MICRO SWITCH EX Series switches feature the smallest UL-listed housings available for use in hazardous locations. The EX Series switch cavity is designed to cool expanding gases below the ignition temperature of the surrounding explosive atmosphere. The EX Series is capable of switching up to 20 amps while providing ample wiring space for ease of installation. Single and double conduit openings are available. Dual conduit openings may allow for through wiring of multiple switches. The EX

Series can be mounted from any of theswitch's four sides.

FEATURES

• Compact and rugged housing

• Ample wiring space that eases installation time

• Four-sided mounting with optional mounting bracket

• Dual conduit openings on select models

• Broad range of actuator styles available in pin plunger and rotary configurations.

• Switching capacity from 1 A for low energy loads, up to 20 A for most industrial electrical loads

• Rotary actuators are field adjustable for quick set up and application adaptability

• Roller lever actuators are adjustable through 360° of rotation

• 1EX and 2EX listings have dual conduit openings enabling "wire through" or allowing the user to split the wiring of a double pole switch with one pole exiting each side

• Manufactured for harsh and explosive environments

• International approvals for use aroundthe world

VALUE TO CUSTOMERS

• Honeywell has over 80 years of switch manufacturing experience covering most environment types

• Proven technology plus superior quality and service are offered worldwide. The EX Series holds multiple agency approvals, including CE, IEC Ex, UL, CSA, and ATEX directives

• Multiple actuator options make the EX Series a good choice for indoor explosion-proof applications

• Smallest UL-listed, power-load carrying switch available for use inhazardous locations

APPLICATIONS

• Industrial paint booths

• Petroleum and chemical plants

• Processing facilities

SPECIFICATIONSPECIFICATIONSSSPECIFICATIONS

1 Refer to order guide

2 Most models, refer to individual specifications for selected catalog listings

AGENCY APPROVALS AND STANDARDS

CIRCUITRY AND ELECTRICAL RATINGS

HAZARDOUS LOCATION CLASSIFICATIONS

MICRO SWITCH EX SERIES ORDER GUIDE

*Note: CW (Clockwise) and CCW (Counter-Clockwise) when looking at nameplate. EX Series switches are not sealed against liquids and are not intended to be used in liquid splash environments or outdoor use without protection. NEMA 1, 7, 9 only.
