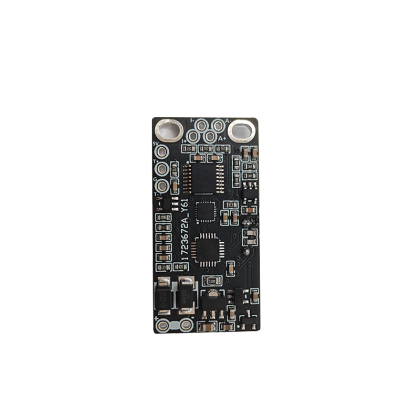

PSP-H intelligent pressure transmitter Hersman circuit board
Details
1. Typical application:
Wheatstone bridge
Diffused silicon, composite silicon, sapphire, sputtered film
Ceramic capacitive sensors (5V, E+H, etc.)
2. Main indicators:
Power supply voltage: 12~32VDC
Output type: 4~20mA two-wire system +HART
Standard/high-speed output mode: 12.5Hz/25Hz
Sampling rate: >20 times /s
ADC resolution: 0.001%FS
Heating points: 11T*15P
Size: Diameter 19.5mm, hole distance 38.5mm
