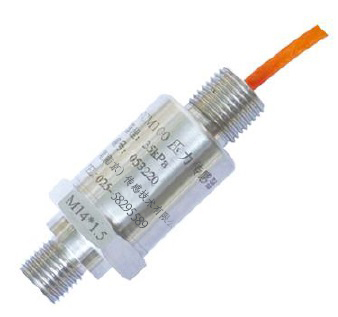

BNPSM110 Pressure sensor for flowmeter
Details
BNPSM110 The pressure sensor for flowmeter is assembled with high performance and high reliability silicon piezoresistive pressure core. The pressure connection and housing are made of stainless steel and have good corrosion resistance.
CHARACTERISTICS：
· High-strength stainless steel structure
· Anti-EMC
· Small size and easy installation
· Wide operating temperature range
· Vibration and shock resistance
PREFORMANCE：
| Parameter | BNPSM100 | |||||
| Measuring Range | -100kPa…0～20kPa…100MPa | |||||
| Pressure Type | Gauge，Absolute，sealed | |||||
| Power supply | constant current： 1.5mA,minimum 0.4mA； constant voltage： 10V、 5V，minimum 2.5V | |||||
| zero output | ±2mV | |||||
| Full output | 60～120mV（typical 100mV） | |||||
| Input resistance | 2.5kΩ～6kΩ（constant current）； 4kΩ～15kΩ（constant voltage） | |||||
| compensation temperature | -10℃～70℃（≥100kPa）；0℃～60℃（＜100kPa） | |||||
| work temperature | -20℃～85℃ | |||||
| storage temperature | -40℃～125℃ | |||||
| zero temperature drift | ±1.5%FS（＠-10℃～70℃）；±1%FS（＠0℃～60℃） | |||||
| Sensitivity temperature drift | ±1.5%FS（＠-10℃～70℃）；±1%FS（＠0℃～60℃） | |||||
| Shock | 100g（11ms） | |||||
| response time | ≤1ms（rise to 90%FS） | |||||
