Special gateway for construction machinery and agricultural machinery IP67 Internet of Things gateway

With the development of the Internet of Things, the demand for gateways is becoming more and more rich. There is an application scenario that has high requirements for gateways, which is the Internet of Things gateway in the field of outdoor operations.

   These areas include outdoor construction engineering machinery, outdoor work of tractor working outdoors, mining machine, the application of scenario has several features: so big, strong interference, snow and ice for fog common vibration, in this case, the class better sensing MG - 5 arises at the historic moment, it is a outdoor gateway with positioning directional function IP67.

The features of this product:

1: Powerful and friendly software, almost support all vehicle and machine system signal input and processing

2: Powerful communication function, supporting two RS232, one RS485, and two CAN BUS inputs

3: High precision positioning + orientation function, global positioning, universal.

4: Support the input of various sensors and external devices

5: Support data uploading over 4G network

6: indicates the IP67 protection level

7: Impact resistance: 25G 11ms 1/2 sine wave in two directions per axis

Mg-5 information high-precision positioning and Orientation host - Banning (Nanjing) Sensing Technology Co., LTD.

   Banning Company officially launched a protection grade IP67 industrial-grade Internet of Things gateway, the gateway has strong performance, protection grade is IP67, the working temperature is -30°C to +70°C, can withstand 25G, 11ms, 1/2 sine wave in two directions of each axis impact, salt spray level: ASTM B117-03, Shock Resistance rating: Machine durability, 10-2000Hz, 7.7GRMS, 8 hours per shaft.

In terms of functions:

1: Communication: this gateway supports communication ports with power output function, power supply for external sensors and peripherals

  • Supports two RS232 (multiplexing) serial data communication, the baud rate can be 9600~115200
  • Supports one RS485 (multiplexing) serial data communication, and the baud rate ranges from 9600 to 115200
  • Supports two-channel CANBUS (one channel dedicated, one channel multiplexed) data communication at 250kbps/500kbps
  • Supports standard NMEA0183 statement output. The standard NMEA0183 statement format can be selected. The output frequency ranges from 1 to 10Hz
  • Strong communication link support, strengthen network communication, support 4G/Wi-Fi/Lora/ radio
  • It has an independent DTU data transmission port to realize transparent data transmission of custom format
  • Convenient and diverse Web function configuration, wireless WIFI connection Settings

1664520919806776

2: Positioning function (Optional)

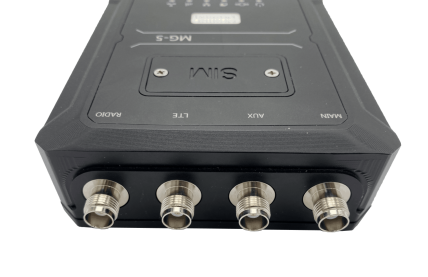

  • Two TNC GNSS antenna signal interfaces (MAIN, AUX)
  • 1-way LTE 4G Mobile Network Signal Interface (LTE)
  • 1 LAN Signal interface (RADIO)
  • Standard WIFI signal interface Concealed Signal antenna (hidden)
  • Dual antenna system, the MG-5 host includes a dual antenna system known as the HD2 capable of outputting the baseline 2D attitude parameters between the two antennas mounted on the platform, namely the heading and tilt Angle.
  • Ultra-high positioning accuracy and direction finding accuracy
  • The main market of our gateway is outdoor operation vehicle, outdoor construction equipment, factory automation equip
