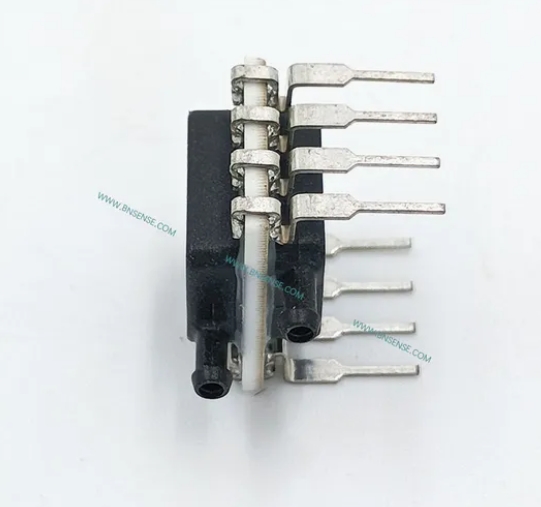

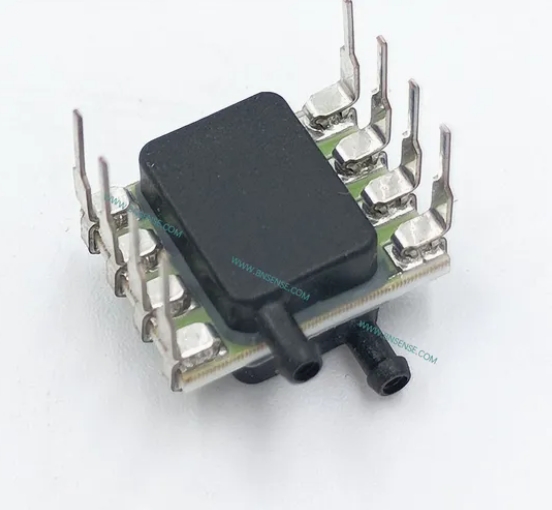

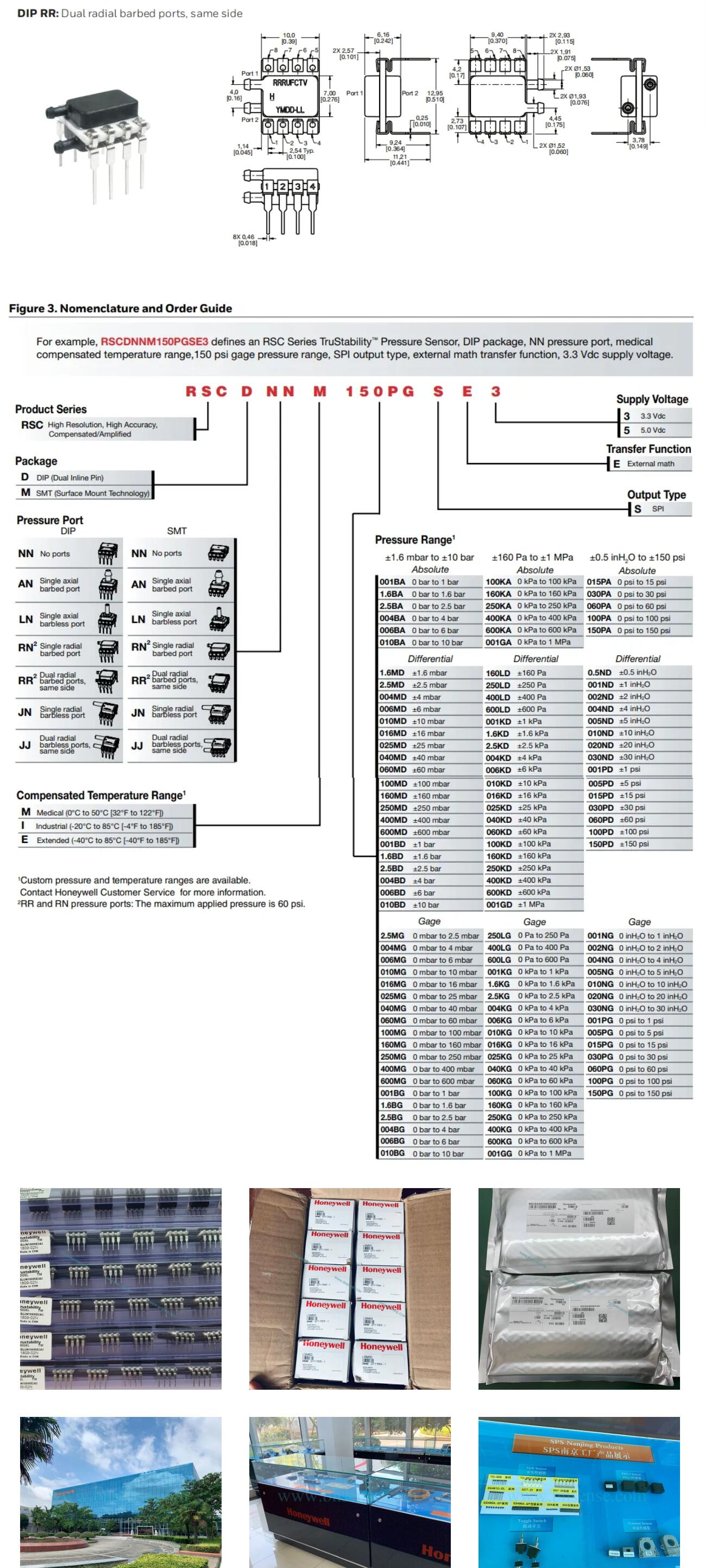

RSCDRRI2.5MDSE3

Product Description

The Honeywell RSC Series is a piezoresistive silicon pressure sensor offering a digital output for reading pressure over the specified full scale pressure span and temperature range. It is calibrated and temperature compensated for sensor offset, sensitivity, temperature effects, and non-linearity using a 24- bit analog-to-digital converter with integrated EEPROM. Pressure data may be acquired at rates between 20 and 2000 samples per second over an SPI interface. It is intended for use with non-corrosive, non-ionic gases, such as air and other dry gases, designed and manufactured according to ISO 9001 standards, and is REACH and RoHS compliant.

VALUE TO CUSTOMERS

• Enhances performance: Output accelerates performance through reduced conversion requirements and direct interface to microprocessors. Proprietary Honeywell technology combines high sensitivity with high burst and over pressure while providing industry leading stability (performance factors difficult to achieve in the same sensor), providing flexibility in implementation and minimizing requirements for protecting the sensor without sacrificing ability to sense very small changes in pressure

• Cost-effective, high volume solution with a variety of options

• Enhances reliability: High burst pressures promote system reliability, minimize downtime, and can simplify design. High working pressures allow ultra-low sensors to be used continuously above the calibrated pressure range

• Easy to design in: Package is small when compared to many similar sensors, occupying less area on the PCB. Port and housing options simplify integration. Wide pressure range simplifies use

• Meets IPC/JEDEC J-STD-020E.1 Moisture Sensitivity Level 2 requirements: Allows avoidance of thermal and mechanical damage during solder reflow attachment and/ or repair that lesser rated sensors would incur, allows unlimited storage life, inside sealed moisture barrier bag (simplifying storage and reducing scrap), eliminates lengthy bakes prior to reflow, and allows for lean manufacturing due to stability and usability shortly after reflow

• Energy efficient: Reduces system power requirements and enables extended battery life

DIFFERENTIATION

• Industry-leading long-term stability: Minimizes system calibration needs and significantly reduces downtime

• Industry-leading accuracy: Reduces software to correct system inaccuracies, which minimizes design time, helps improve efficiency, and often simplifies development

• Industry-leading flexibility: Modular design with many package styles and options simplify integration

• Total Error Band: Provides true performance over the compensated temperature range, which eliminates the need to test and calibrate every sensor, thereby reducing manufacturing cost. Improves system accuracy and offers ease of sensor interchangeability due to minimal part-to-part variation

APPLICATIONS

• Medical: Airflow monitors, anesthesia machines, blood analysis machines, gas chromatography, gas flow instrumentation, hospital room air pressure, kidney dialysis machines, nebulizers, pneumatic controls, respiratory machines, sleep apnea equipment, spirometers, ventilators

• Industrial: Barometry, drones, flow calibrators, gas chromatography, gas flow instrumentation, HVAC clogged filter detection, HVAC systems, HVAC transmitters, indoor air quality, life sciences, pneumatic control, VAV (Variable Air Volume) control, weather balloons

FEATURES

• Pressure range: ±1.6 mbar to ±10 bar, ±160 Pa to ±1 MPa, ±0.5 inH2O to ±150 psi; absolute range 1 bar to 8 bar, 15 psi to 150 psi

• Pressure types: Absolute, gage, and differential

• Total Error Band: As low as ±0.25 %FSS depending on pressure range (after auto zero)

• Accuracy: ±0.1 %FSS BFSL (Full Scale Span Best Fit Straight Line)

• Compensated temperature range: 40ºC to 85ºC [-40ºF to 185ºF]

• Power consumption: Less than 10 mW, typ.

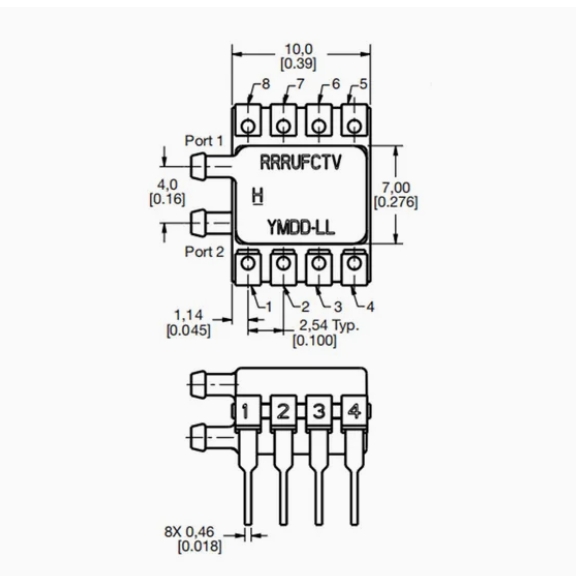

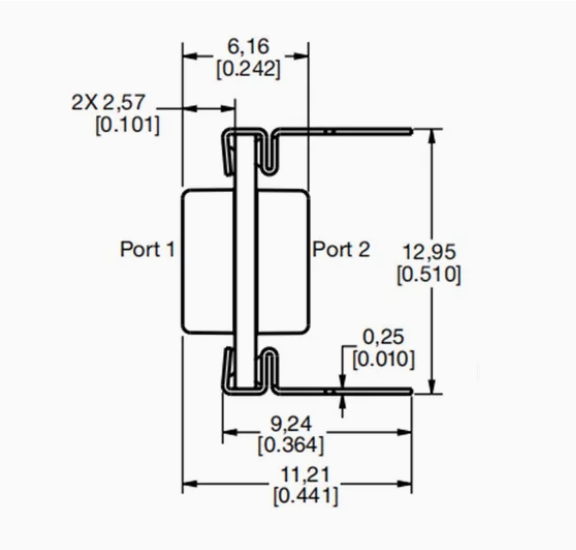

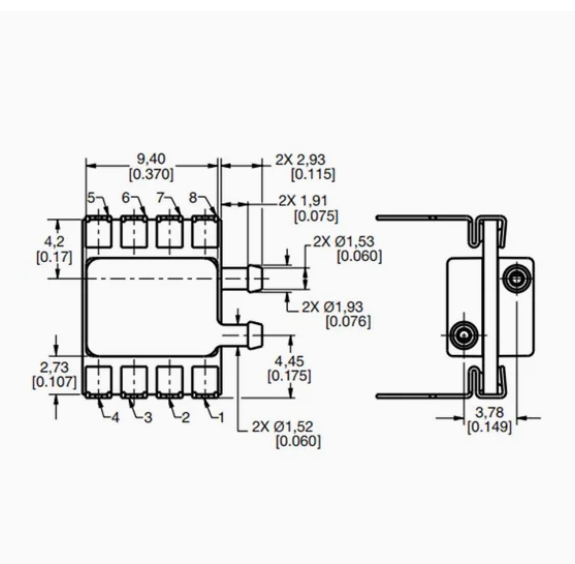

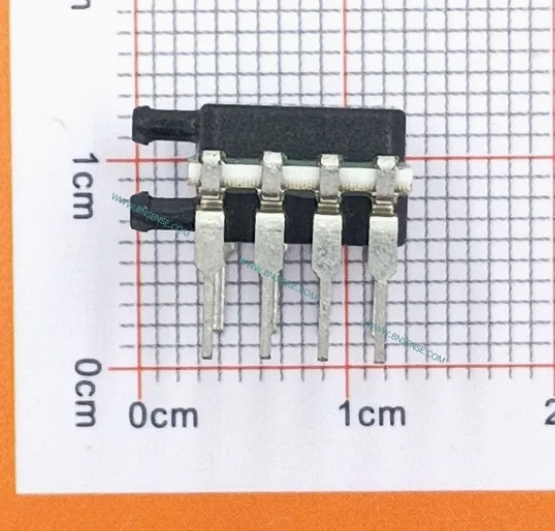

• Size: Miniature 10 mm × 12,5 mm [0.39 in x 0.49 in] package

• Output: 24-bit digital SPI-compatible

• Meets IPC/JEDEC J-STD-020E.1 Moisture Sensitivity Level 2 requirements

Tech Specifications
