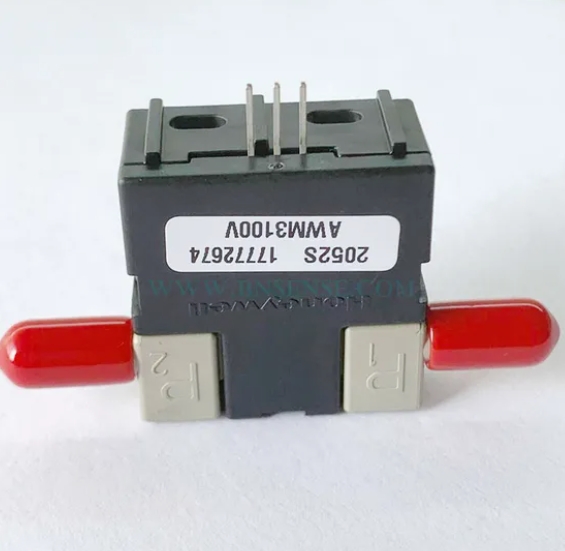

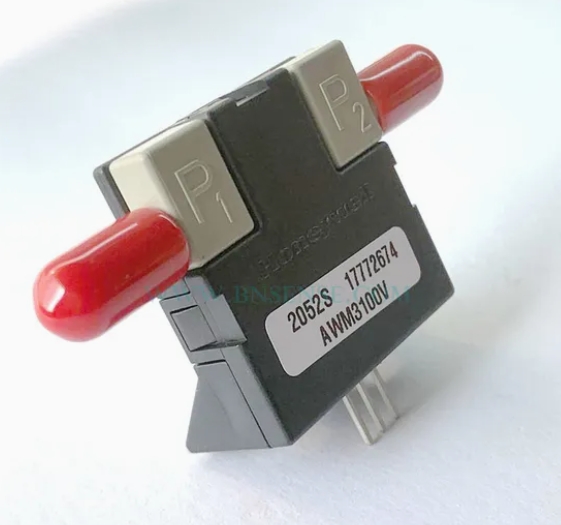

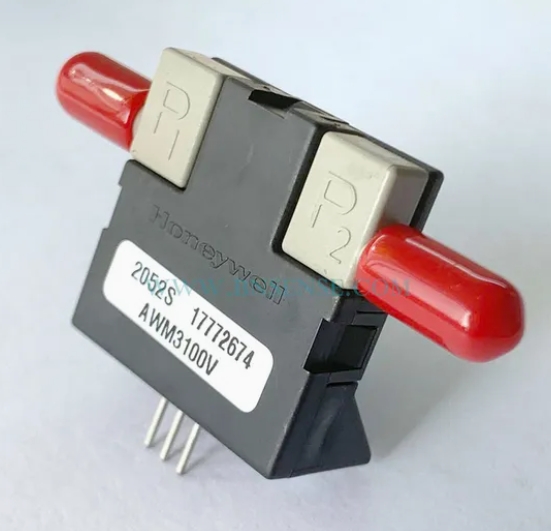

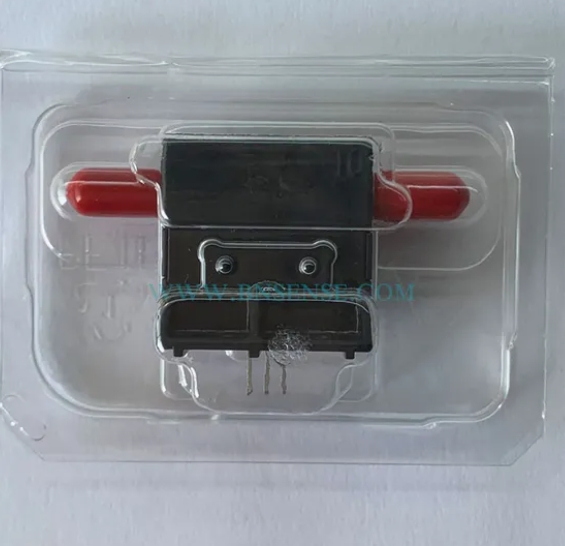

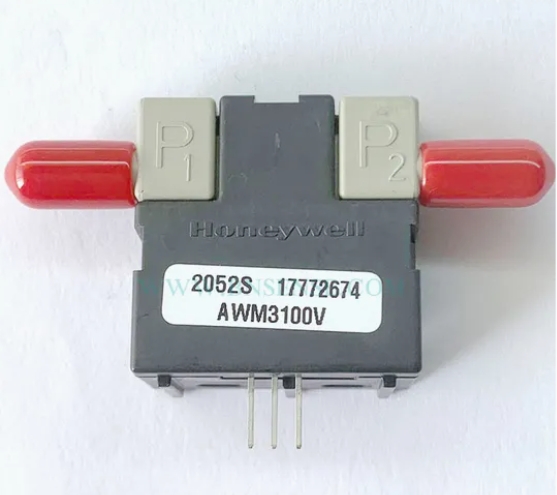

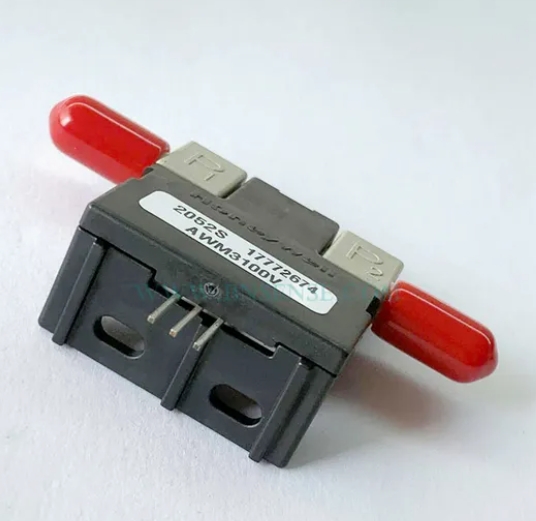

AWM3100V
| Tech Specifications | |
| Description | Product Attribute |
| Manufacturer | Honeywell |
| Product Category | Flow Sensors |
| For Use With | Dry Gas |
| Range | 200 cm/min |
| Accuracy | 0.50% |
| Output Voltage | 5 V |
| Operating Supply Voltage | 8 V to 15 V |
| Port Size | 5.08 mm |
| Housing Material | Silicon |
| Maximum Operating Temperature | + 85 C |
| Minimum Operating Temperature | - 25 C |
| Packaging | Bulk |
| Product Type | Flow Sensors |
| Series | AWM3000 |
| Subcategory | Sensors |
| Supply Voltage - Max | 15 V |
| Supply Voltage - Min | 8 V |
Product Description

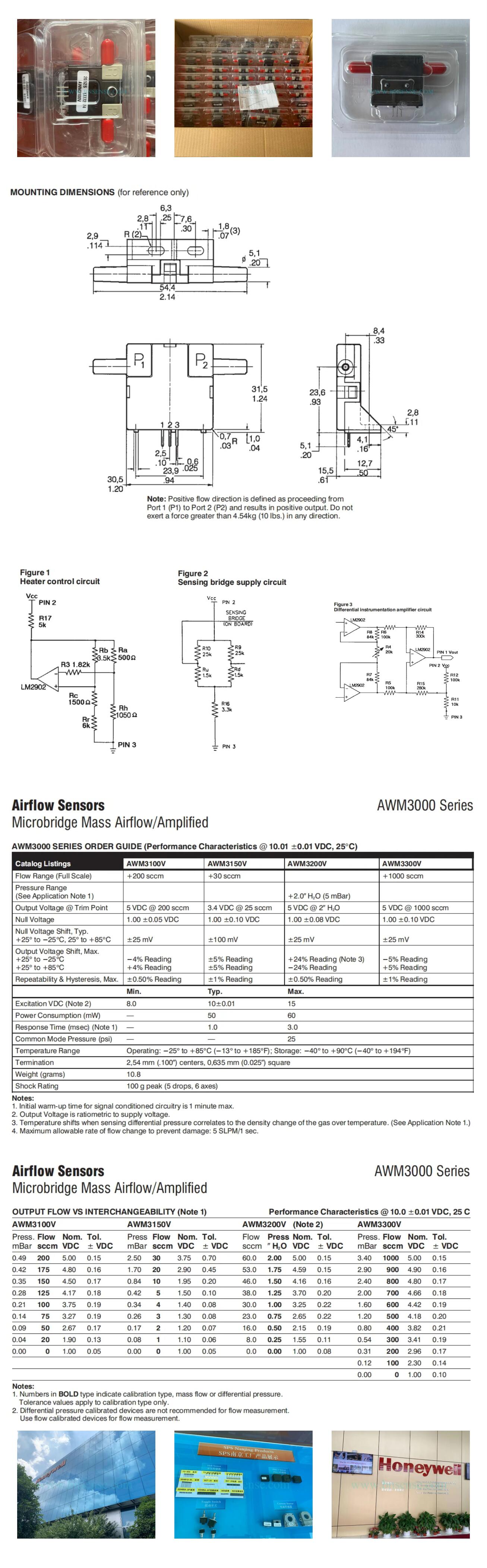

The AWM3000 Series is amplified; therefore, it can be used to increase the gain and to introduce voltage offsets to the sensor output. The schematic in Figure 3 depicts the amplification circuitry on board the sensor. Also, the heater control circuit and the sensing bridge supply circuit are on board the package.
FEATURESLaser trimmed for improved sensor interchangeabilityFlow sensing up to 1.0 SLPMLow differential pressure sensing
