ABPLANT030PG2A3
Product Description
The ABP Series are piezoresistive silicon pressure sensors offering a ratiometric analog or digital output for reading pressure over the specified full scale pressure span and temperature range. They are calibrated and temperature compensated for sensor offset, sensitivity, temperature effects and accuracy errors (which include nonlinearity, repeatability and hysteresis) using an on-board Application Specific Integrated Circuit (ASIC). Calibrated output values for pressure are updated at approximately 1 kHz for analog and 2 kHz for digital. All products are designed and manufactured according to ISO 9001 standards.
Tech Specifications
| Description | Product Attribute |
|---|---|
| Manufacturer | Honeywell |
| Product Category | Board Mount Pressure Sensors |
| Series | ABP |
| Product Type | Board Mount Pressure Sensors |
| Subcategory | Sensors |
| Tradename | TruStability |

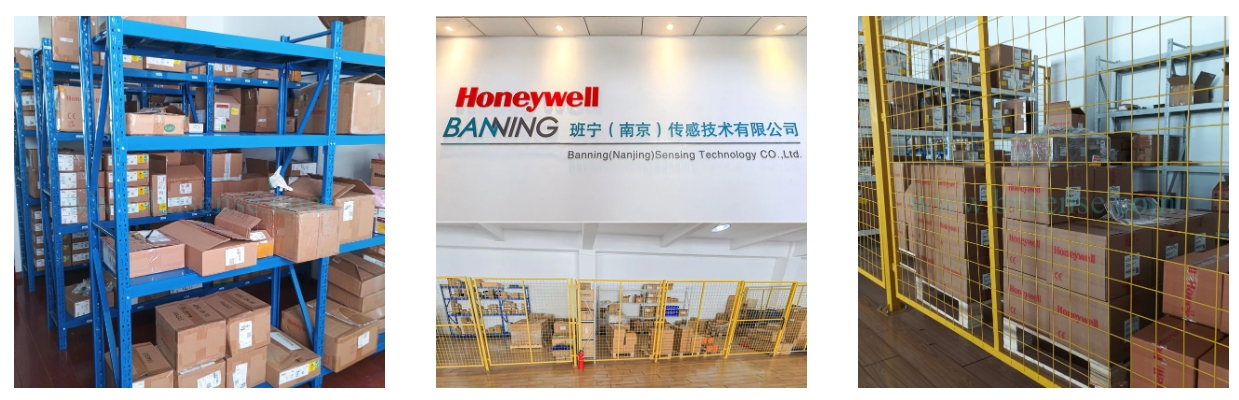

BNSENSE Co., Ltd., located in the core area of pukou new district. Banning is a high-tech enterprise specializing in the development, manufacture and trade of sensor products. A group of excellent domestic technical experts who are excellent in automation, electronic, machinery, computer and many other fields is gathered here. All staffs have college degree or above, using the international first-class management standard and 6 sigma quality system. Main products are pressure, liquid level, flow, current, switches, etc. Company's customers are throughout the country, some products have been exported to Japan, South Korean, Southeast Asia and other countries. BNSENSE Co., Ltd is also an official authorized disitributor of Honeywell in China.
