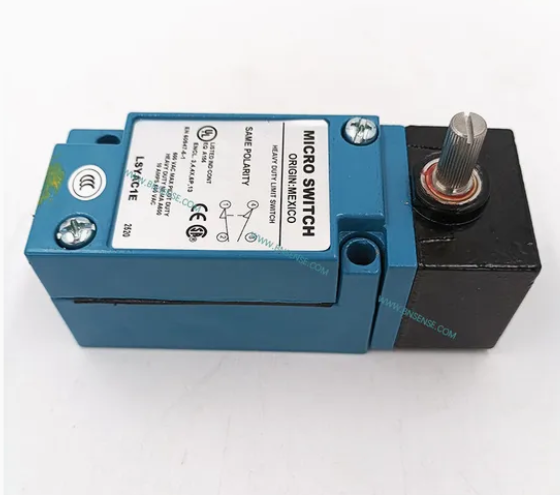

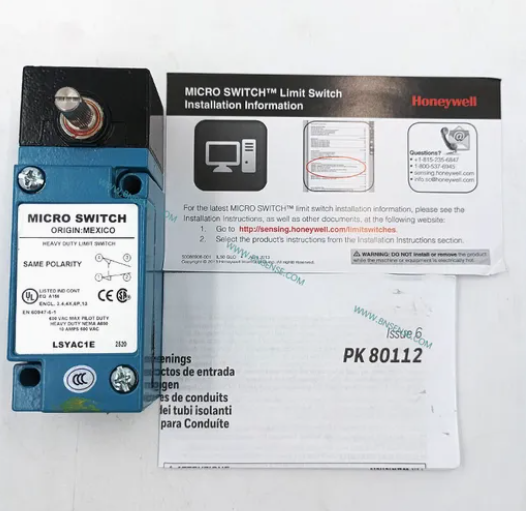

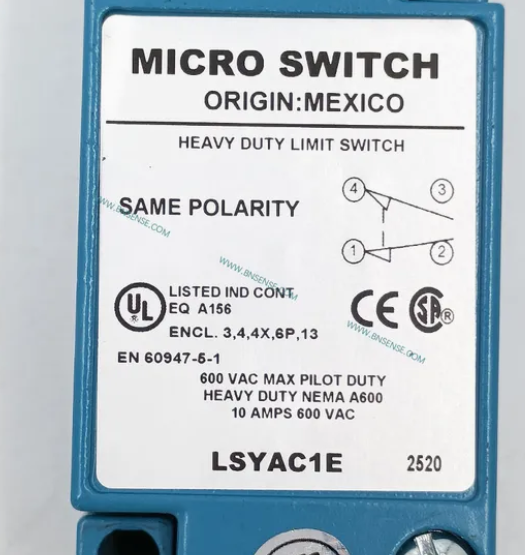

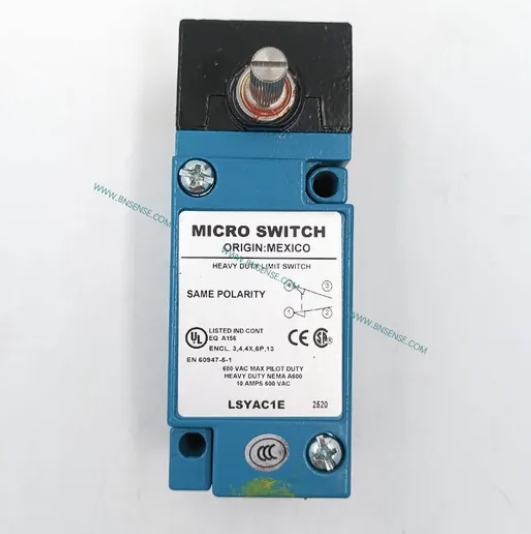

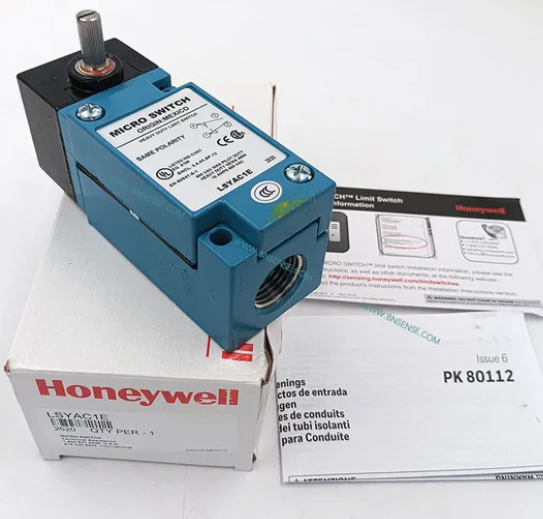

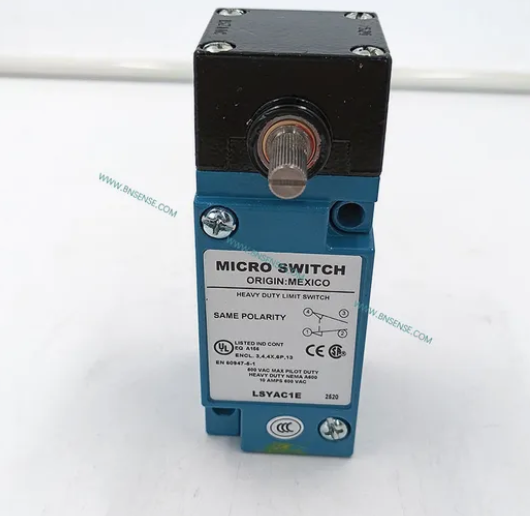

LSYAC1E

Product Description

Honeywell MICRO SWITCH heavy-duty limit switches' modular construction allows for a wide variety of actuator styles, operating heads and electrical circuitry options. The plug-in versions greatly reduce downtime on production lines with high actuation rates as replacement of the switch is accomplished in seconds. The base receptacle contains all the wiring and conduit connection while the switching component with operating head easily assembles to the base and is attached with two screws. They are ideal for many applications with demanding indoor and/or outdoor environments, where they may be subjected to shock or vibration from equipment, temperature extremes, dust, splashing water, coolant and/or hose-directed water.

DIFFERENTIATION

• Sintered bronze bearing on 303 stainless steel operating shaft for enhanced mechanical life (up to 50 million actuation cycles) and operational reliability

• All-metal drive train for consistent operating characteristics, even at high temperature. Lasts longer (without need for frequent adjustment) than drive trains with plastic parts

• Exclusive teller tab ensures proper torque. When it cannot be moved, the lever is tightenough to prevent slippage

VALUE TO CUSTOMERS

• Designed to IP65/66/67 and NEMA 1, 3, 3R,

4, 4X, 6, 6P, 12 (without cable), and 13 for demanding applications

• Industry-leading breadth-of-product offering: HDLS standard, HDLS harsh-duty epoxy sealed or the HDLS stainless steel

• UL, CSA, CE, UKCA and CCC approvals for global use

• Configurable product platform for design versatility

• Large, existing installation base and channel allows for quick delivery worldwide

FEATURES

• NEMA 1, 3, 3R, 4, 4X, 6, 6P, 12 (without cable), and 13 and IP65/66/67environmental sealing

• NEMA/IP sealing features twin shaft seals for an extra measure of protection

• Rugged, corrosion-resistant zinc head and body are phosphate treated and epoxy coated

• Diaphragm seal between head and body provides an extra measure of protection

• Multiple connectivity options for international applications

• Fluorosilicone seals available for low temperature applications and fluorocarbon seals available for chemically harsh

environments and higher temperature applications

• Secure head-to-body retention with the head in any one of four positions 90° apart

• Self-lifting pressure plate terminals saves wiring time

• Wide variety of actuators, switch options and head styles

• Rotary actuated heads are field adjustable for CW actuation, CCW actuation or both

• Silver or gold-plated contacts

• Plug-in and non plug-in bodies have identical operating characteristics and are dimensionally interchangeable

APPLICATIONS

• Machine tools

• Automotive machine tools

• Material handling

• Outdoor electromechanical structures

• Balers/compactors

• Conveyors

• Food and beverage

• Power plants

• Off-road equipment

• Agricultural equipment

• Valves

• Transportation hubs
