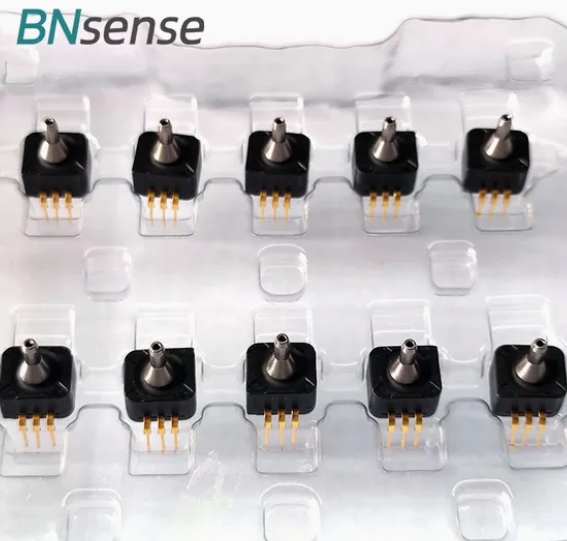

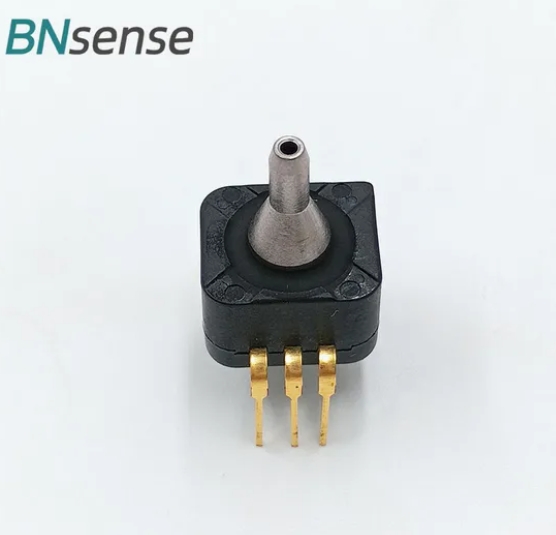

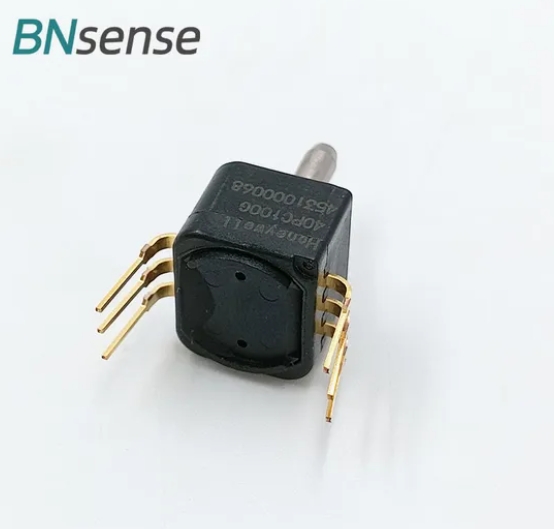

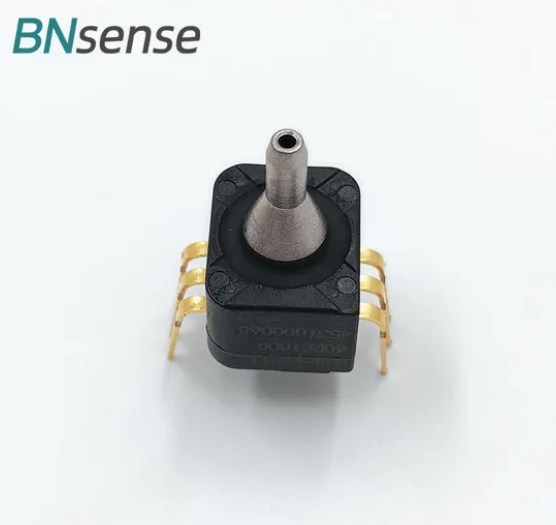

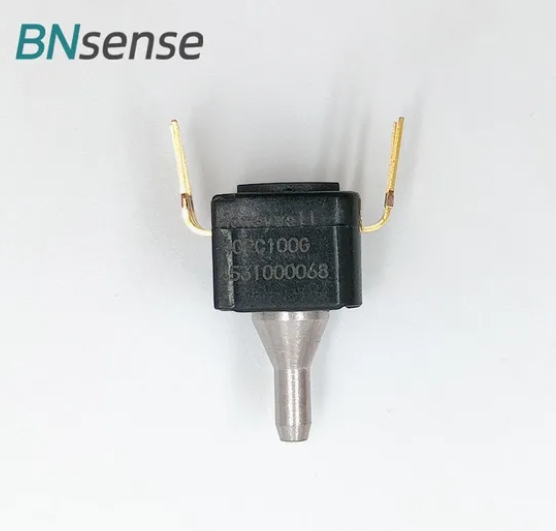

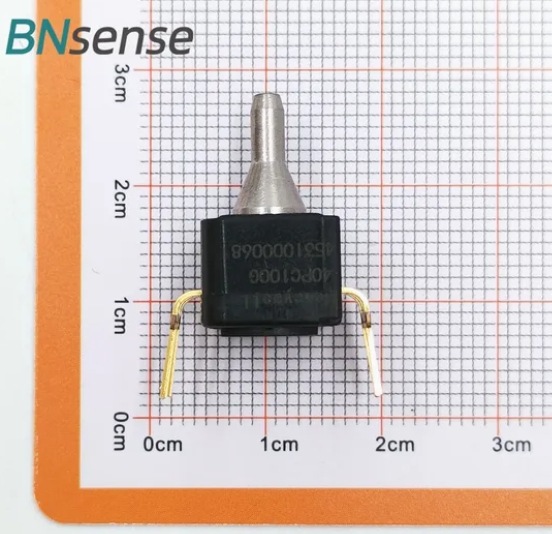

40PC100G2A

Product Description

The Honeywell 40PC100G2A is a pressure sensor designed for various industrial applications. It offers high accuracy and reliability, making it suitable for measuring pressure in different environments. The sensor typically features a wide operating temperature range and can be used in demanding conditions.FEATURES· Pressure ranges from 0 ... ± 50 mmHg to 0 ... 500 psi gage· High accuracy· TTL power supply· Ratiometric 0.5 to 4.5 V output· Dual-Inline pinning for easy PCB-mounting · Excellent media compatibility

MEDIA COMPATIBILITY

P1: dry gases only

P2: all media compatible with glass, silicon, stainless steel, Invar, Sn/Ni plating or Sn/Ag solder

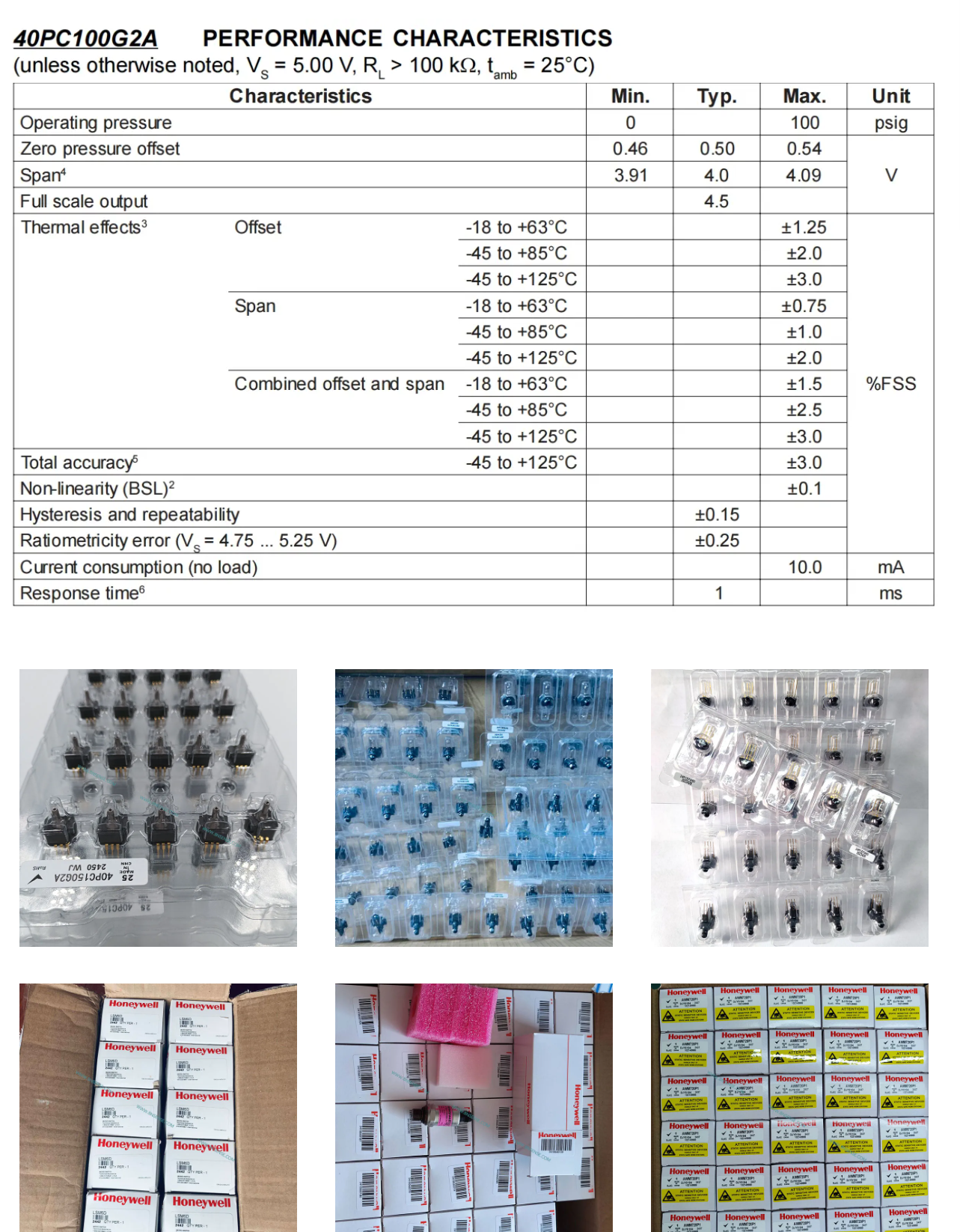

SPECIFICATIONS

Order number and specification

(unless otherwise noted, VS = 5.00 V, RL > 100 kΩ, tamb = 25°C)

Specification notes:

1.Proof pressure is the maximum pressure which may be applied without causing damage to the sensing element.

2.Non-linearity - the maximum deviation of measured output at constant temperature, from "Best Straight Line" through three points (offset pressure, full scale pressure and 1/2 full scale pressure).

3.Thermal effects tested and guaranteed in the specified temperature ranges relative to 25°C. All specifications shown are relative to 25°C.

4.Span is the algebraic difference between lowest and highest specified pressure.

5.Total accuracy is the maximum deviation from the 25°C reference transfer function at any pressure or temperature over the specified ranges. This calculation includes null, span, linearity, hysteresis, repeatability, null shift and span shift.

6.Response time for 0 to full-scale pressure step change, readings taken at 10 % and 90 % of full-scale pressure.
