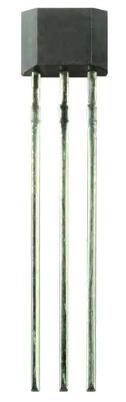

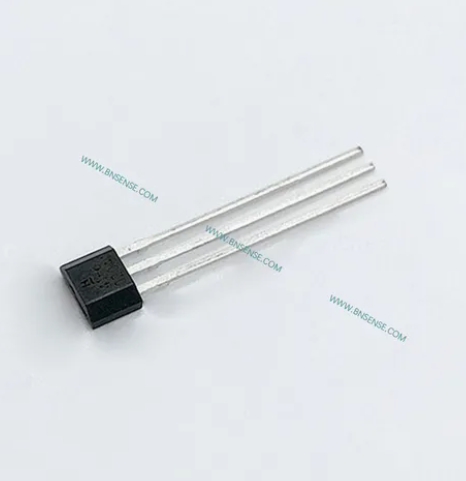

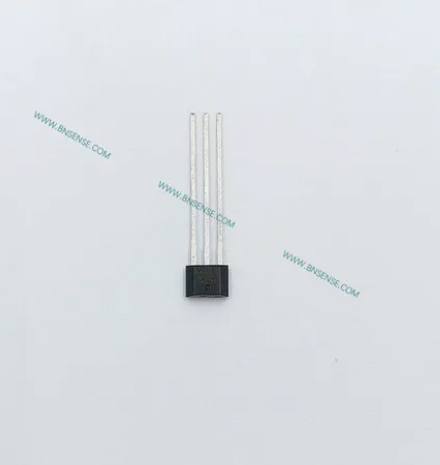

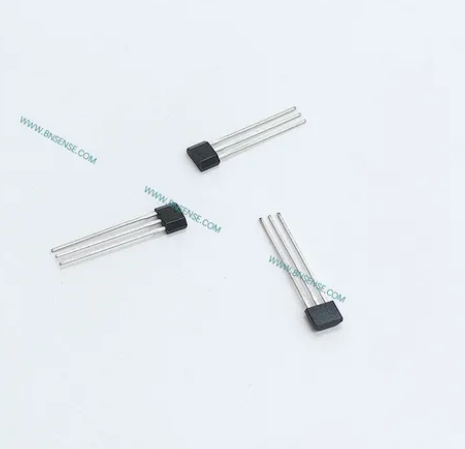

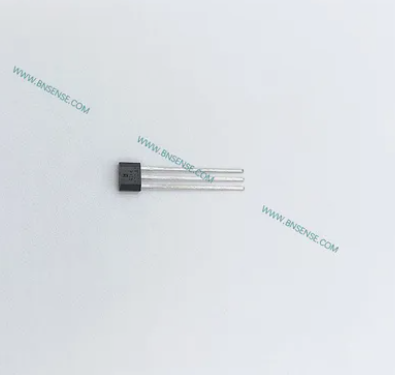

SS41
Inventory: 1000
$0.165Details
| Tech Specifications | |
| Description | Product Attribute |
| Manufacturer | Honeywell |
| Product Category | Board Mount Hall Effect / Magnetic Sensors |
| Type | Solid State |
| Operating Supply Current | 15 mA |
| Maximum Output Current | 20 mA |
| Operating Point Min/Max | 150 G |
| Release Point Min/Max (Brp) | - 140 G |
| Operating Supply Voltage | 12 V |
| Minimum Operating Temperature | - 55 C |
| Maximum Operating Temperature | + 150 C |
| Mounting Style | Through Hole |

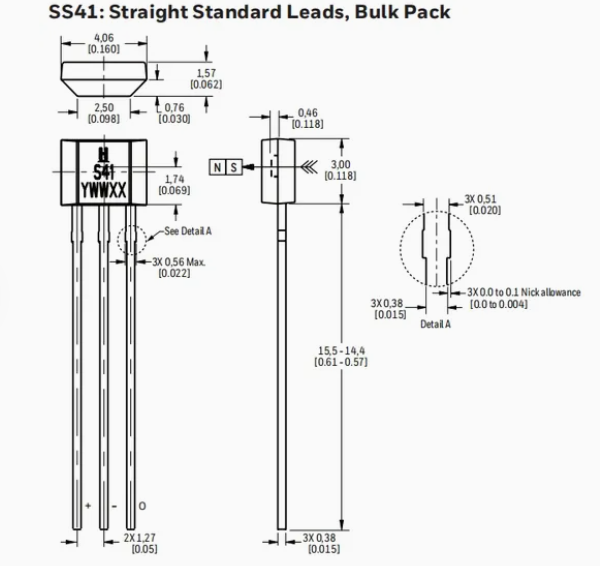

| Package / Case | TO-92-Flat-3 |
| Packaging | Bulk |
| Product Type | Board Mount Hall Effect / Magnetic Sensors |
| Subcategory | Sensors |
| Supply Voltage - Max | 24 V |
| Supply Voltage - Min | 4.5 V |
