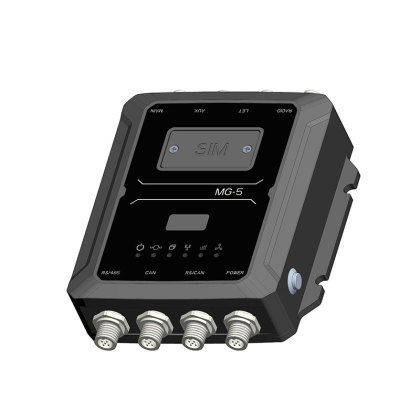

MG-5 information high-precision positioning and orientation host
Details
MG-5 is a new generation of multi-function high-precision positioning and orientation host launched for the fields of digital construction informatization, mechanical control and intelligent driving. It has multiple ports, reduces system accessories, and simplifies system solutions. It is suitable for various application scenarios.
MG-5 contains a full-system multi-frequency high-precision orientation board, which can simultaneously track BDS B1/B2 + GPS L1/L2 + GLONASS L1/L2 +Galileo E1/E5b + SBAS/QSZZ and other multi-frequency points to ensure accurate positioning and orientation. High precision.
Rugged and reliable, the MG-5 has extreme moisture and dust protection, as well as stringent drop and vibration requirements, to withstand harsh field conditions.
Features:
- Powerful communication link support, strengthen network communication, support 4G/Wi-Fi/Lora/radio
- Good stability, professional waterproof and dustproof design, optimized for vehicle high-intensity vibration environment, more suitable for low temperature design in outdoor environment
- Port forms are multiplexed, support RS232/RS485/CAN communication forms, and have flexible and diverse collocation settings
- With independent DTU data transmission port, realize transparent transmission of custom format data
- Convenient and diverse Web function configuration, wireless WIFI connection settings
- Magnetic base, easy and fast installation, stable and reliable
- High dynamic data update rate for ultra-low speed measurements
Performance：
| Supply voltage | 7~42VDC |
| Supply current | 600mA @ 12VDC typical 4A max (with load) |
| output power | Output voltage: supply voltage Output current: 3A max (sensor/peripheral) |
| port | 1 circuit power input Dedicated port battery/key battery 1 circuit RS232 /RS485 Multiplexed port 1 circuit CAN J1939/CANOPEN Dedicated port 50Kbps to Mbps 1 circuit CANOPEN/RS232 Multiplexed port 50Kbps to Mbps |
| Operating temperature | -30°C to +70°C |
| Protection class | IP-67 |
| Impact test | 25G 11ms 1/2 sine wave in both directions per axis |
| Salt spray test | Based on ASTM B117-03 |
| Vibration test | Random durability, 10-2000Hz, 7.7GRMS, 8 hours per axis |
| shell | Coated cast aluminum 164*138*40(mm） |
| Connector | 1 circuit M12 4-pin male Power: 1、B+ 2、IGN 3、B- 4、B- 1 circuit M12 5-pin female Communication port: 2、V+ 3、GND 4、COM1_B(TXD1/485B) 5、COM1_A(TXD1/485A) 1 circuit CAN J1939/CANOPEN Communication port: 2、V+ 3、GND 4、CAN1H 5、CAN1L 1 circuit CANOPEN/RS232 Communication port: 2、V+ 3、GND 4、COM2_B(CAN2H/TXD2) 5、COM2_A(CAN2L/RXD2) |
| LED | 1 circuit System status Red light 1 circuit satellite status blue light 1 circuit Differential Status Green Light 1 circuit network status yellow light 1 circuit link status green light 1 circuit Peripheral status yellow light |
| weight | 1.6KG |
