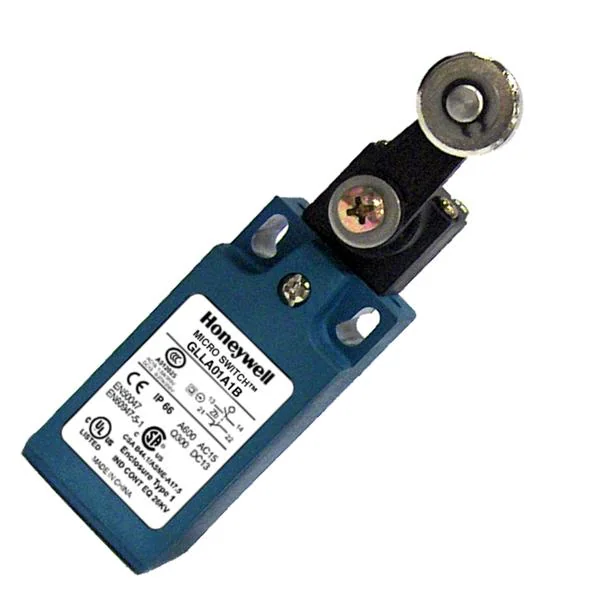

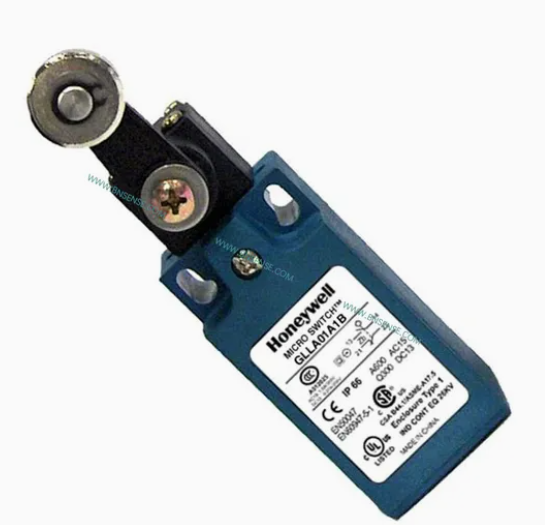

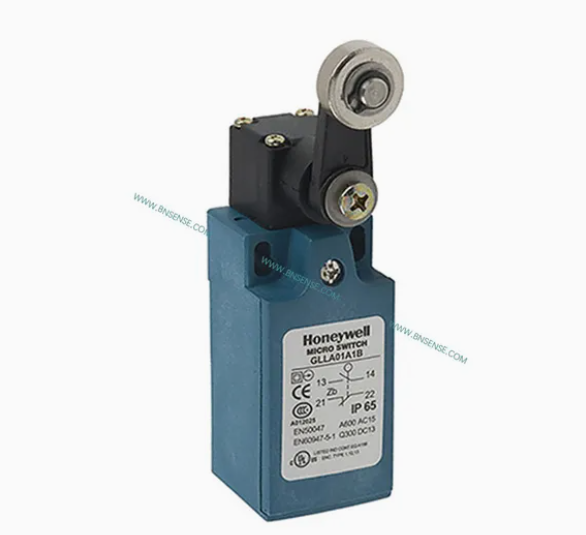

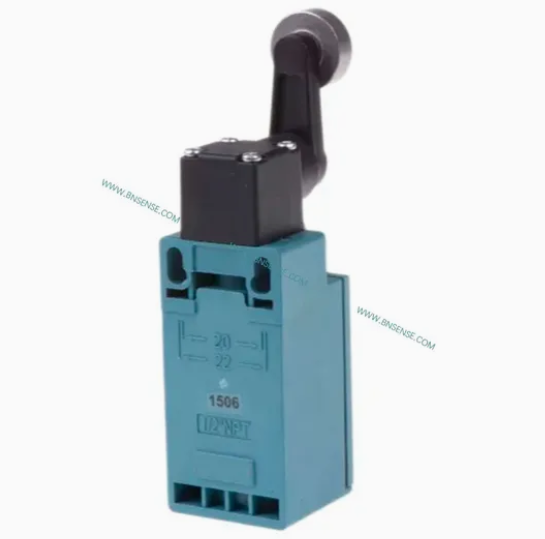

GLLA01A1B

Tech Specifications

Product Description

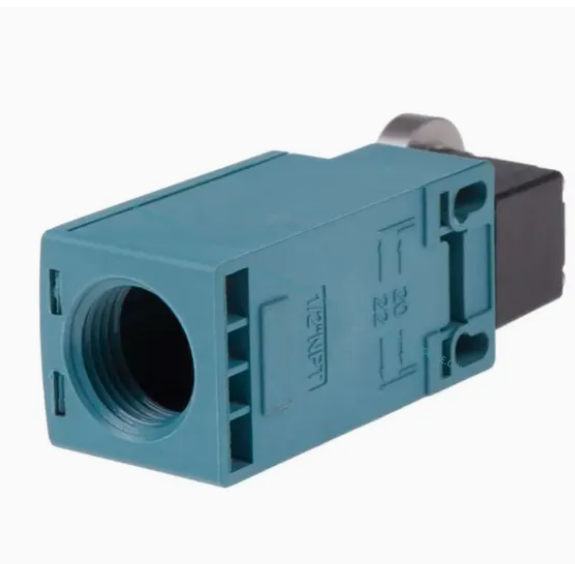

Honeywell provides a wide selection of industrial limit switches for machinery and equipment on indoor and outdoor applications. When the solution for the application is a small global limit switch, Honeywell offers the GLL Series miniature industrial limit switch. The GLL Series switches are designed with global certifications for worldwide use. With an integral contact block, the design also provides a double-insulated

thermoplastic housing and conforms to the EN50047 mounting pattern with IP and NEMA environmental sealing. A  wide variety of linear and rotary actuators is available as well as contact block options to satisfy many applications. All normally closed contacts are positive opening.

VALUE TO CUSTOMERS

• Designed to EN50047 standards

• AC15, A600 and DC13, Q300 control circuit electrical ratings for world-wide acceptance

• Wide range of actuators and circuitry options in same package

• CCC, CE, CSA, and cULus certifications for global acceptance

DIFFERENTIATION

• Double insulated thermoplastic limit switch with integral contact block

• Cost effective EN50047 type limit switch with world-wide availability

FEATURES

• Ten different actuator heads, five different contact options, and two different conduits

• Designed to EN50047 standard

• Double insulated plastic housing

• Integral threaded conduit of 0.5 NPT or 20 mm

• Positive opening normally closed contacts to IEC 60947-5-1-3

• Certified for global applications; CE, cULus, CSA, CCC

• Galvanically isolated poles or throws [Zb] within contact block

• Double break snap action or slow action contacts

• Hinge cover with single fastener for easy wiring access

• IP66 environmental sealing for indoor or outdoor applications

• ROHS compliant

POTENTIAL APPLICATIONS

• Aerial platforms/Lifts

• Elevators/Escalators

• Industrial Doors/Gates

• Packaging equipment

MICRO SWITCH Miniature Industrial Limit Switch, GLL SeriesSpecifications

* All normally closed (NC) contacts are positive opening.

Table 2. Electrical Specifications

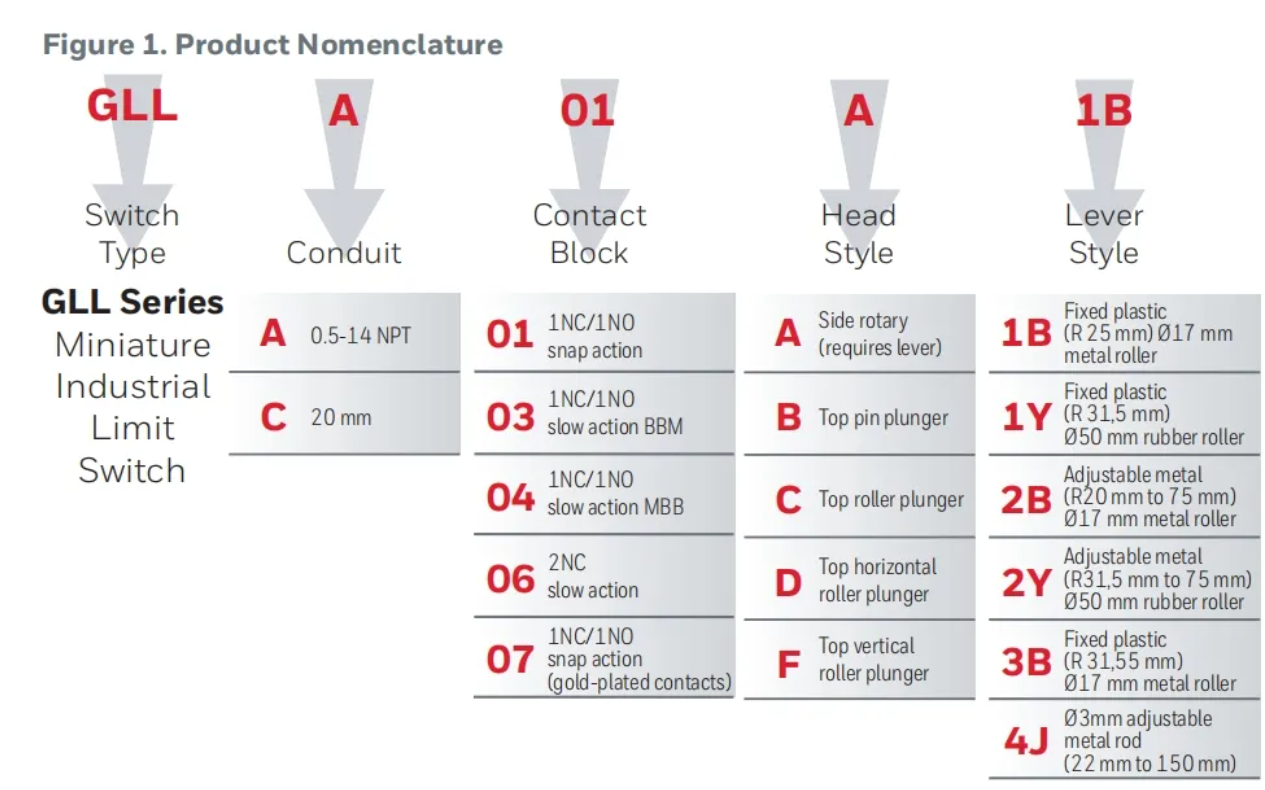

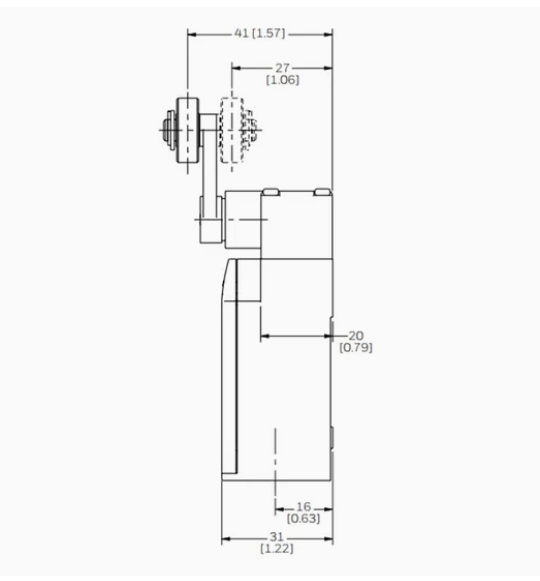

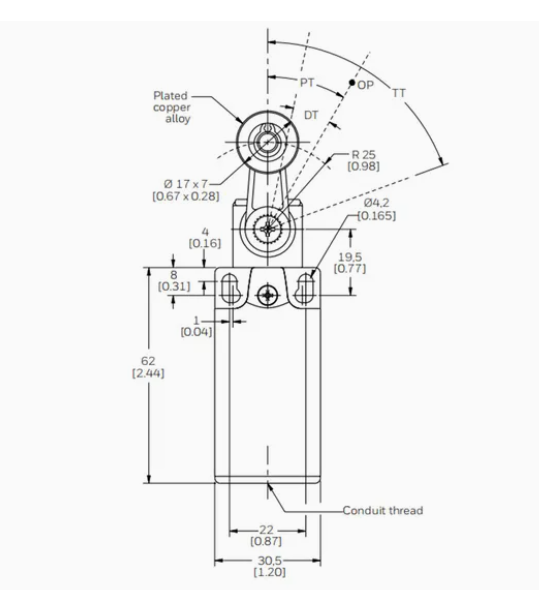

MICRO SWITCH Miniature Industrial Limit Switch, GLL SeriesSide Rotary 25 mm lever with Ø17 mm metal roller Ordering Guide

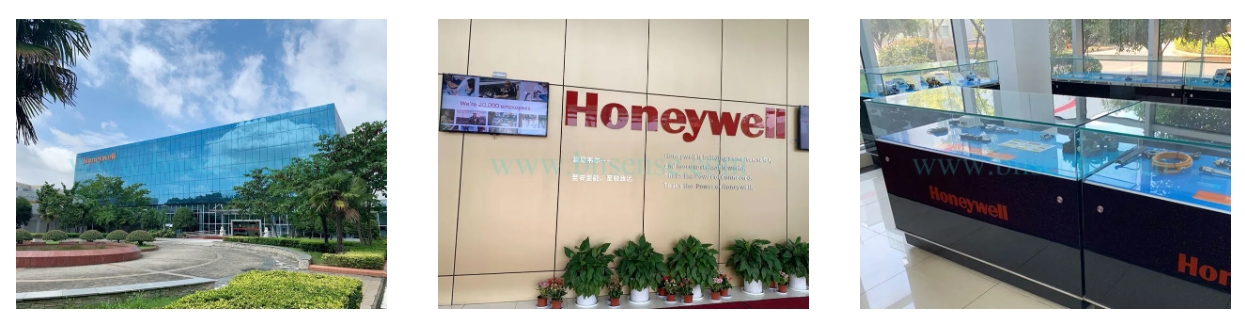

BNSENS (Nanjing) Sensor Technology Co., Ltd. is located in Nanjing, China. It is a high-tech enterprise specializing in the development, manufacturing and trade of sensor products. The company has brought together a group of outstanding technical experts in various fields such as automation, electronics, machinery and computers. All employees of the company have college degrees or above. It adopts the world-class management and operation model and 6 sigma quality system. At present, the company's main products are pressure, liquid level, flow, current, switches, etc. The company's users are all over the country, and some products have been exported to Japan, South Korea and Southeast Asia.
