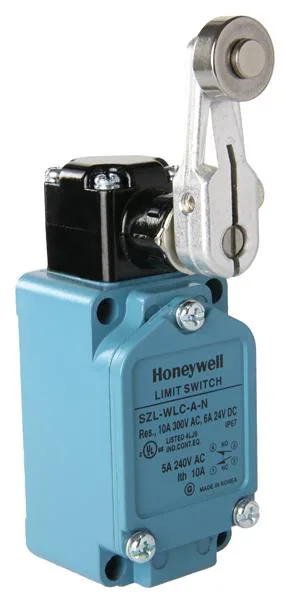

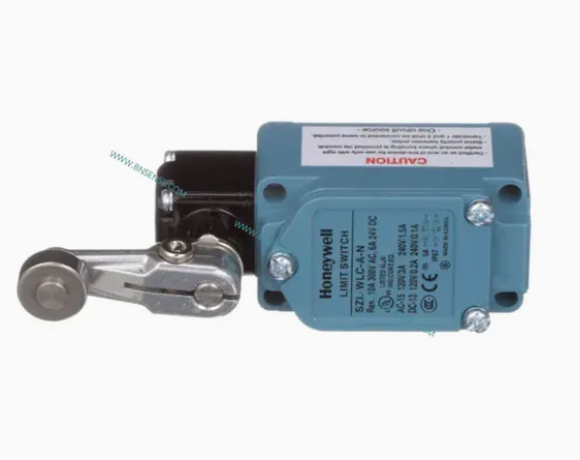

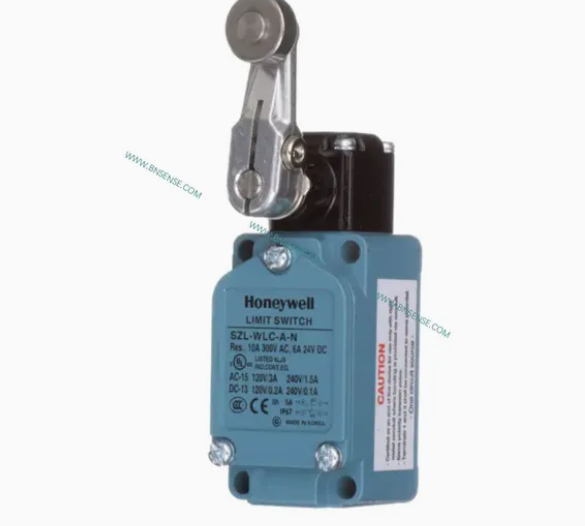

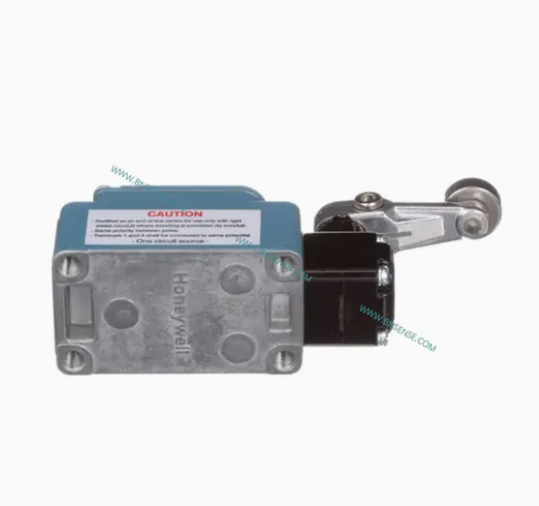

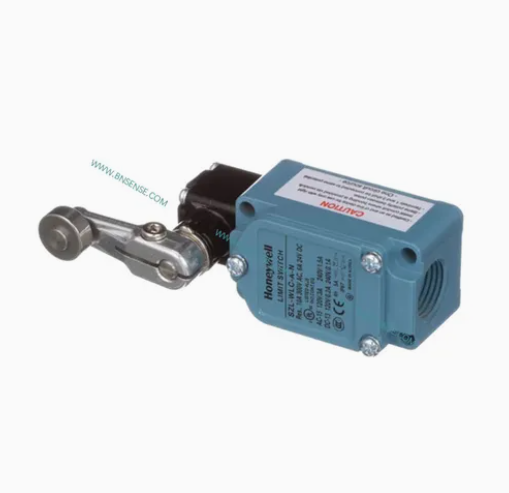

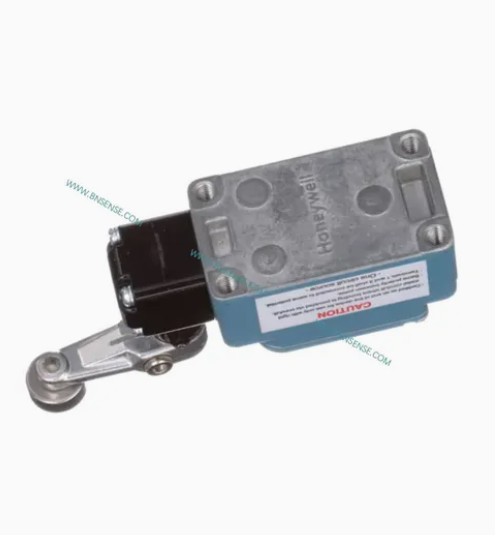

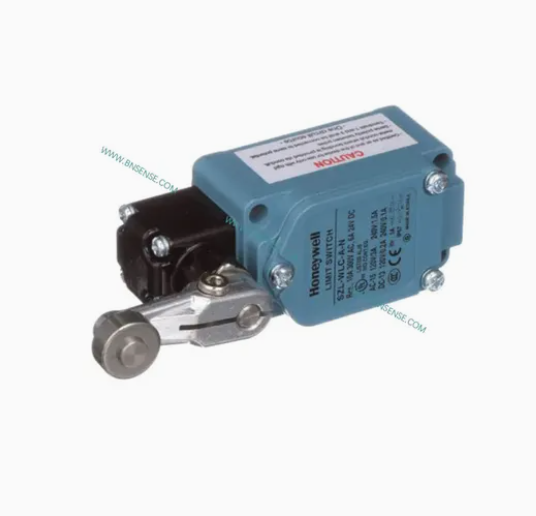

SZL-WLC-A-N

Product Description

MICRO SWITCH™ SZL-WL Series general purpose limit switches are cost effective switches that may be used in a wide range of applications from general purpose conveyors to heavy-duty machinery. Rugged and reliable, the SZL-WL Series switches are specially designed for world-wide use and supported by Honeywell's vast experience in serving industries around the globe. High quality product offerings combined with Honeywell's global sales and service resources makes the SZL-WL Series the smart choice for industries whose goal is to minimize plant downtime and reduce overall maintenance costs.

FEATURES

• Industrial global design
The SZL-WL Series is designed to the EN50041 mounting standard which promotes interchangability between other brands of limit switches.

• Two circuit double break contacts

The SZL-WL Series promotes reliable switching under industrial 10 amp current loads and typically allows end users the ability to control two circuits within one switch.

• Oil tight, water tight, dust tight

Honeywell's SZL-WL Series offers side rotary, top and side plunger, and wobble stick style actuators that makes the switch reasonably adaptable to numerous types of applications.

APPLICATIONS

INDUSTRIAL

• Counting and position sensing on conveyors and assembly lines

• Fixture and tooling position sensing on automated metal removing machines

• Position indication on electric valves on pipelines

• Position indication on dampers, fume hoods, and HVAC/R equipment

• Truck ramp position and elevator car position/leveling control
