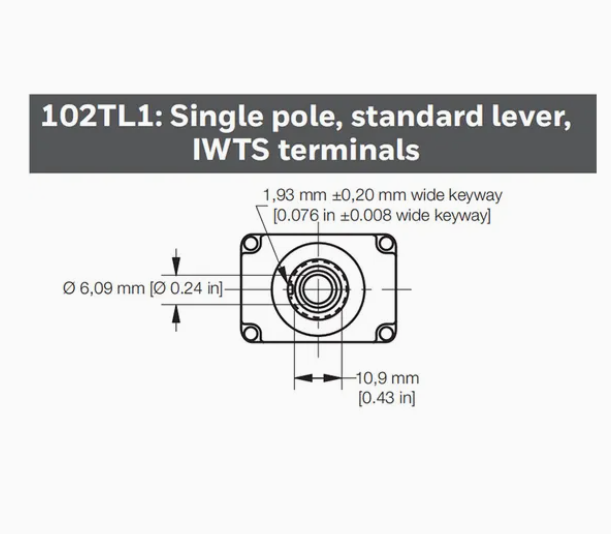

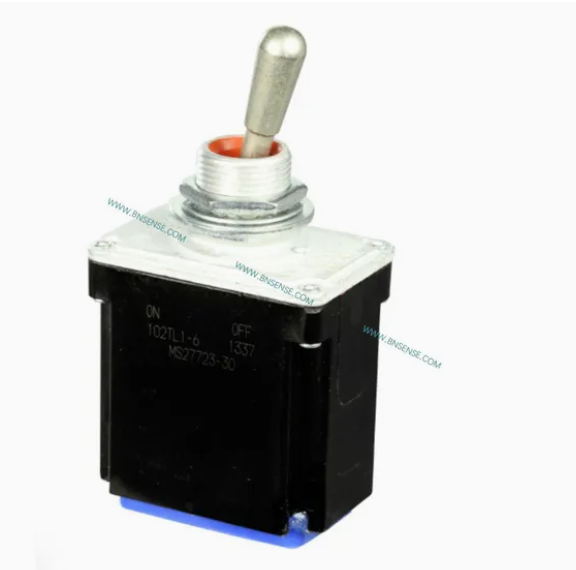

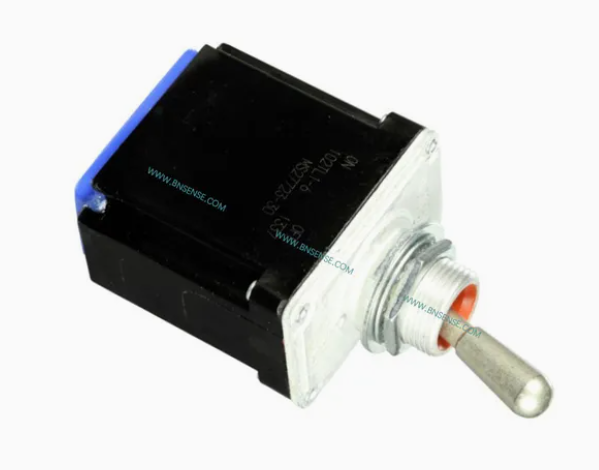

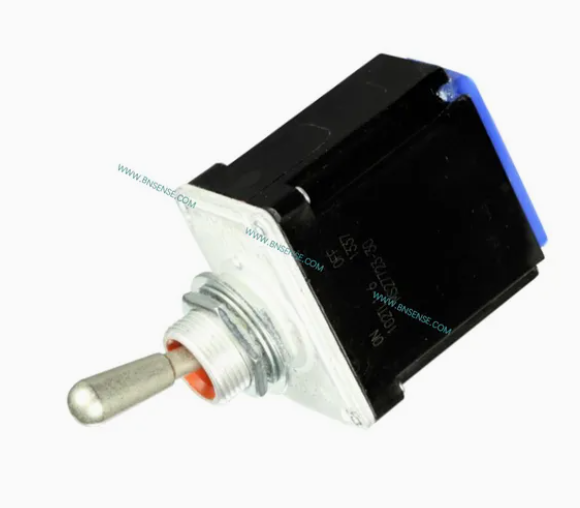

102TL1-6

Product Description

Honeywell MICRO SWITCH TL Series toggle switches are MT qualified to MIL-DTL-3950, specifications for sealed toggle switches. Quality construction features include a bonded seal between the toggle lever and bushing, and between the cover and case.

The robust design of the TL Series toggle is well-suited for many MT, aerospace and other demanding applications where reliability is essential. These applications include environments where the panels are subjected to mechanical shock, vibration, and temperature extremes as well as environments with dust, splashing or hose-directed water.

TL Series toggle switches offer a variety of circuitry and pole options to easily integrate into a number of applications. A longhistory in MT and aerospace applications has shown the TL Series toggle switches provide reliable performance with long operating life under the toughest conditions.

FEATURES

• MIL-DTL-3950 qualified

• 1-, 2-, and 4-pole options

• 2- and 3-position, maintained and momentary

• Wide temperature range: -65 °C to 71 °C [-85 °F to 160 °F]

• UL recognized, CSA certified, and CE and UKCA approved

• Optional leverlocks

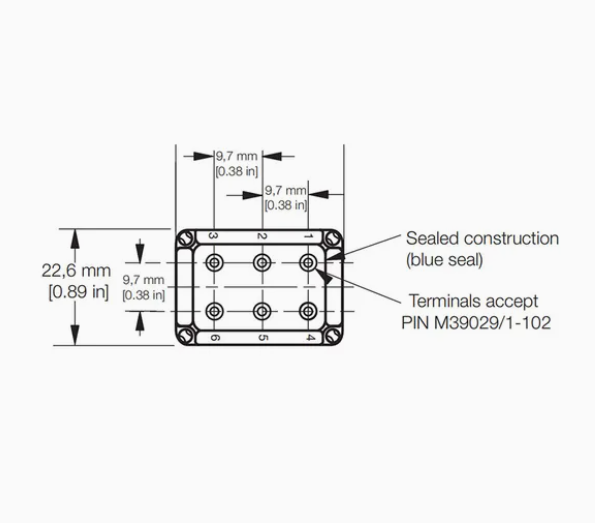

• Three termination options: screw, solder lugs, IWTS (Integrated Wire Termination System)

• Silver alloy or gold-plated contact options

• Engineered step-design case provides added space between terminals to prevent electrical shorting

POTENTIAL APPLICATIONS

• Miliitary and commercial aircraft: fixed wing aircraft and helicopter flight decks

• Aviation ground support equipment: pumps, lights, and lift platforms

• MT land vehicles (track and wheeled vehicles): lights, pumps, arming equipment, and lifts/ramps, etc.

• Construction equipment: road milling, road pavers, trenchers, and stump cutters

VALUE TO CUSTOMERS

• MIL-DTL-3950 qualified switches available to meet MT specifications

• Environmental sealing enables switches to withstand many demanding indoor and outdoor applications

• 1-, 2-, and 4-pole options for a variety of circuitry requirements

• 2- and 3-position, maintained and momentary toggle action to meet circuit and actuator requirements

• UL recognized, CSA certified, CE and UKCA approved for global use

DIFFERENTIATION

• Robust construction: Built from MT-grade components to achieve MIL-DTL-3950 requirements

• Locking levers reduce unintended actuation

MICRO SWITCH MT GRADE TOGGLE SWITCHES, TL SERIES
