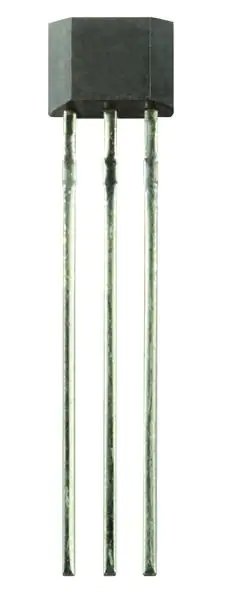

SS461A

Product Description

The SS400 Series and SS500 Series are small and versatile digital Hall-effect devices that are operated by the magnetic field from a permanent magnet or an electromagnet, and are designed to respond to alternating North and South poles, or to a South pole only. They are available in bipolar, latching or unipolar magnetics. On-board regulation provides stable operation over a 3.8 Vdc to 30 Vdc supply voltage range. These sensors are capable of continuous 20 mA sinking output and may be cycled as high as 50 mA max.

The 3.8 V capability allows for use in many potential low voltage applications. The digital, open collector sinking-type output is easily interfaced with a wide variety of electronic circuits. To provide reliable products and consistent quality, the SS400 Series products are tested at both 25°C [75°F] and 125°C [257°F]. All catalog listings are qualified for operation up to 150°C [302°F]. For design flexibility, these product are available in the following package styles:

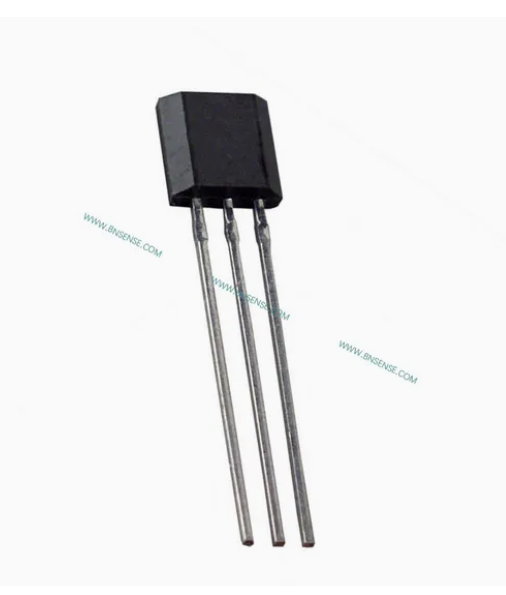

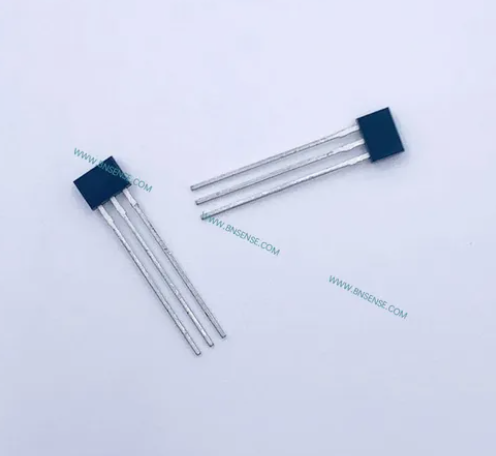

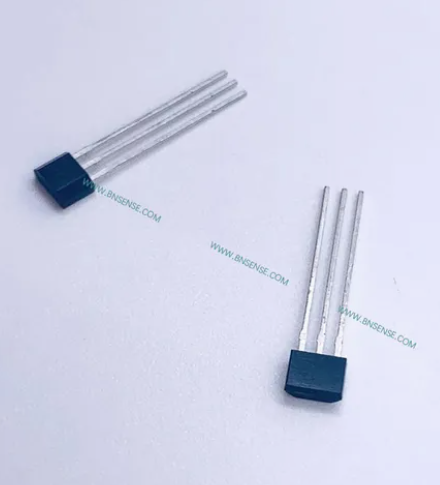

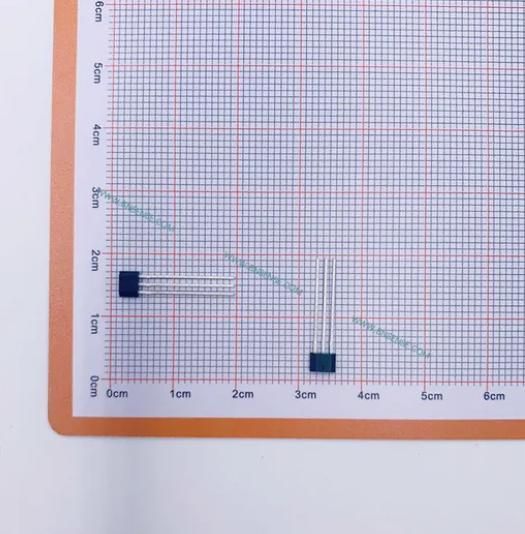

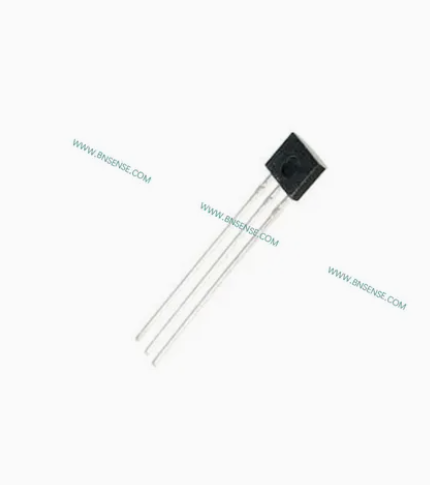

• SS400 Series: Flat TO-92-style:

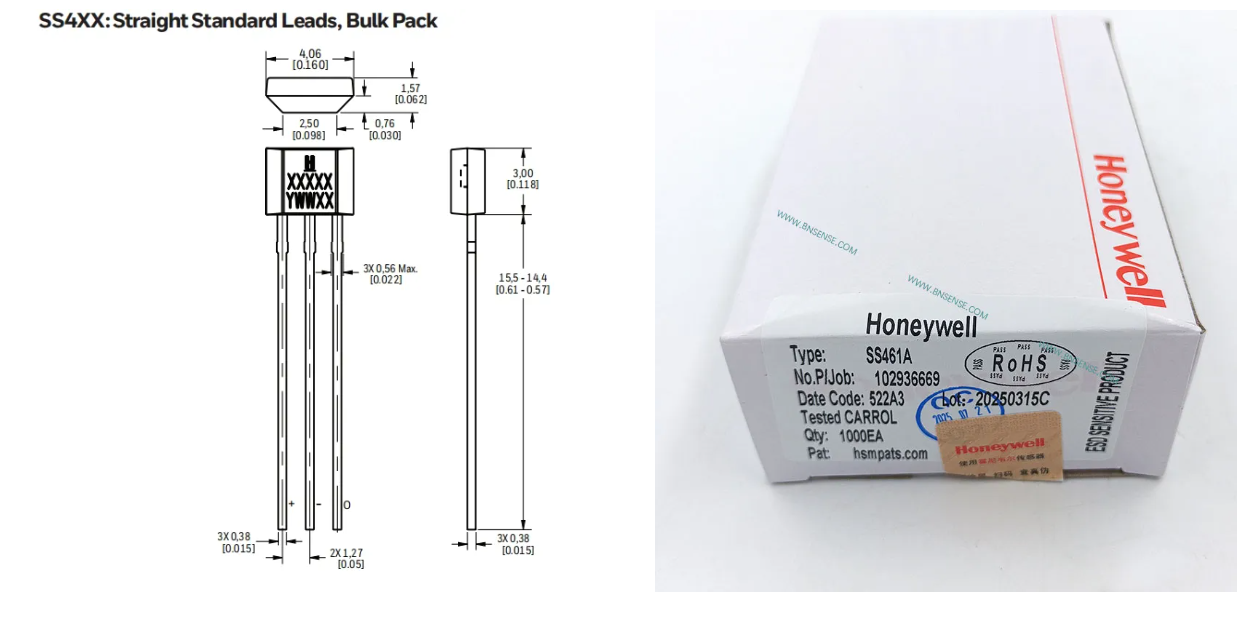

- SS4XX: Straight standard leads, bulk pack

- SS4XX-L: Straight long leads, bulk pack

- SS4XX-T2: Formed leads, ammopack tape-in-box

- SS4XX-T3: Straight standard leads, ammopack tape-in-box

- SS4XX-S: Surface mount, bulk pack

- SS4XX-SP: Surface mount, pocket tape and reel

• SS500 Series: SOT-89B, pocket tape and reel

FEATURES

• Quad Hall IC design minimizes mechanical stress effects

• Temperature-compensated magnetics help provide stable operation over a wide temperature range of -40°C to 150°C [-40°F to 302°F]

• Broad, inclusive supply voltage capability from 3.8 Vdc to 30 Vdc for application flexibility

• Digital, open collector sinking output for easy interfacing with a variety of common electronic circuits

• High sensitivity versions available for potential applications requiring high accuracy or wide gaps

• Bipolar, latching or unipolar magnetics

POTENTIAL APPLICATIONS

• Industrial: Speed and RPM (revolutions per minute) sensing, tachometer, counter pickup, flow-rate sensing, brushless dc (direct current) motor commutation, motor and fan control, robotics control

• Transportation: Speed and RPM (revolutions per minute) sensing, tachometer, counter pickup, motor and fan control, electric window lift, convertible roof position

• Medical: Motor assemblies, medication dispensing control

PORTFOLIO

Other bipolar, latching and unipolar Hall effect digital sensor ICs include:

• SS360NT, SS360ST, SS360ST-10K, SS460S, SS460S-T2

• VF360NT, VF360ST, VF460S

• SS361RT, SS461R

• SS361CT, SS461C

• SS340RT, SS440R Series

• SS360PT, SS460P, SS460P-T2

• SS311PT, SS411P
Performance Specifications (Applies to both SS400 series and 500 Series, unless otherwise noted.)

^{1For supply voltages above 24 Vdc, a capacitor may be needed between the output and supply pins to ensure proper operation.}

NOTICE

These Hall-effect sensor ICs may have an initial output in either the ON or OFF state if powered up with an applied magnetic field in the differential zone (applied magnetic field >Brp and <Bop). Honeywell recommends allowing 10 us after supply voltage has reached 5 V for the output voltage to stabilize.

The magnetic field strength (Gauss) required to cause the switch to change state (operate and release) will be as specified in the magnetic characteristics. To test the switch against the specified limits, the switch must be placed in a uniform magnetic field.
Absolute Maximum Specifications

NOTICE

Absolute maximum ratings are the extreme limits the device will momentarily withstand without damage to the device. Electrical and mechanical characteristics are not guaranteed if the rated voltage and/ or currents are exceeded, nor will the device necessarily operate at absolute maximum ratings.Magnetic Specifications

Order Guide for the SS400 Series (Flat TO-92-Style)
