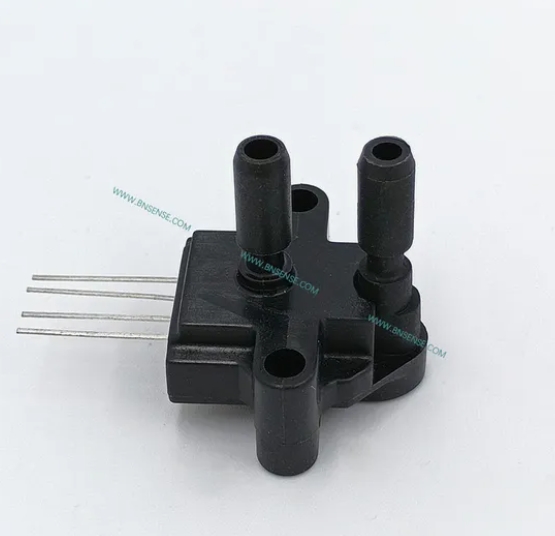

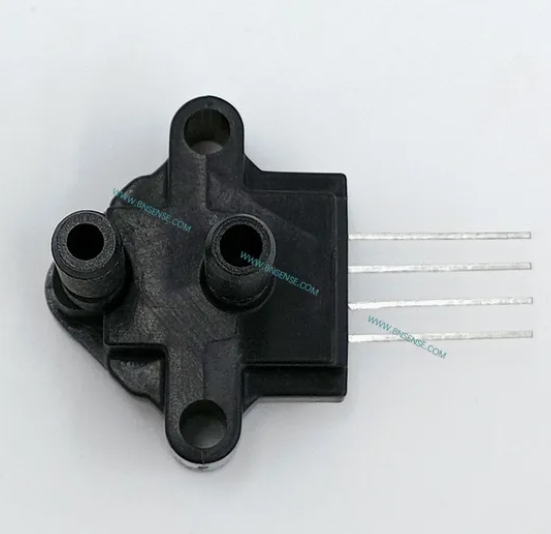

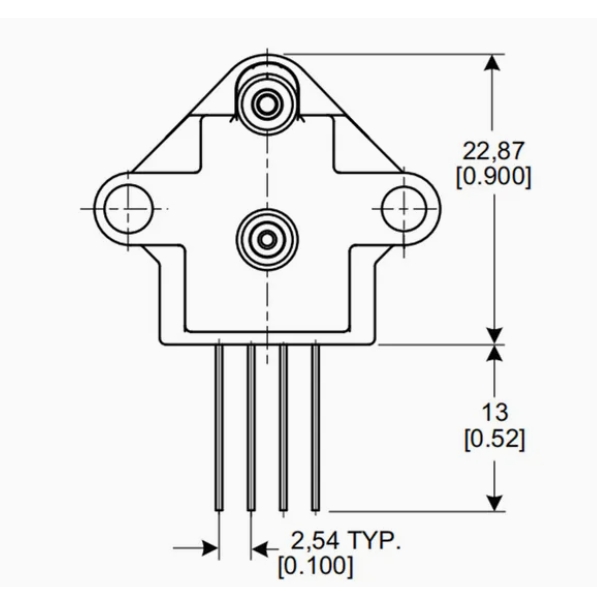

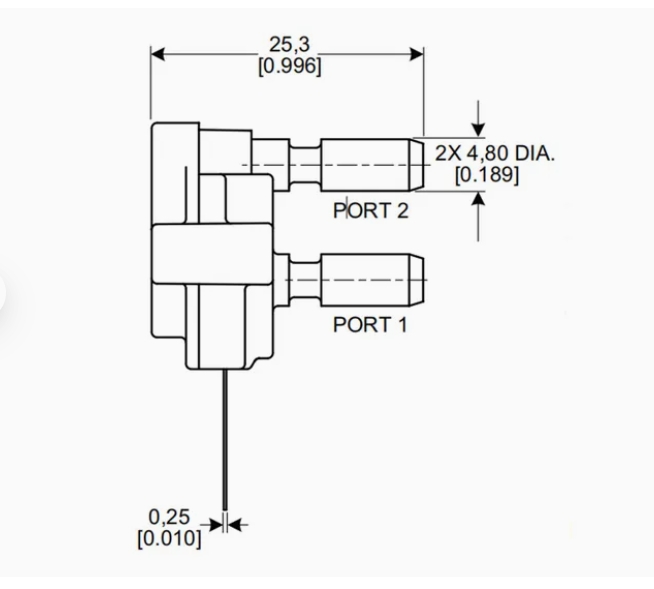

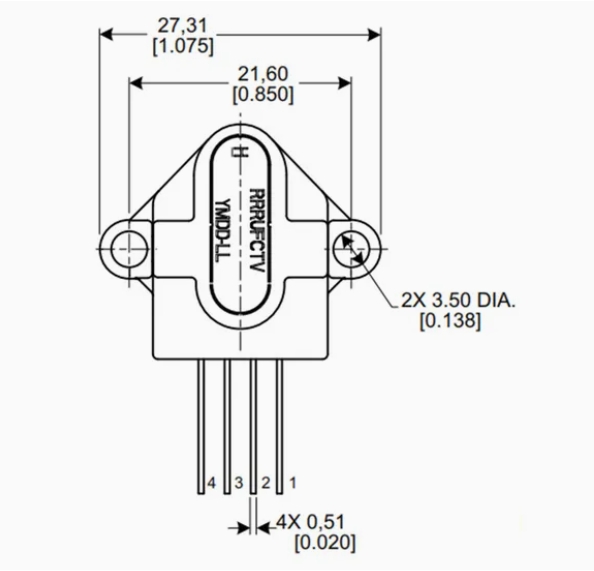

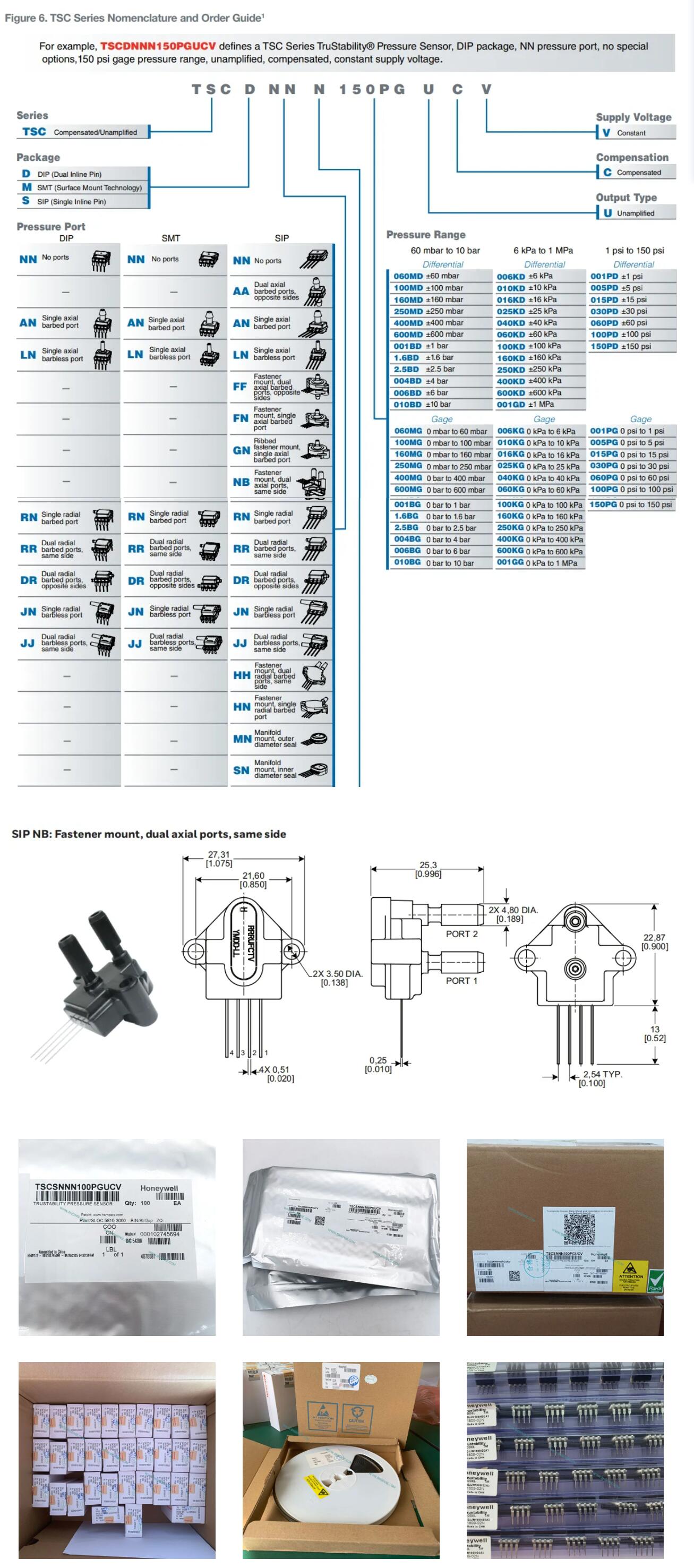

TSCSNBN001PDUCV

Product Description

Honeywell's TruStability® TSC Series and NSC Series are piezoresistive silicon pressure sensors offering a ratiometric analog output for reading pressure over the specified full scale pressure span and temperature range.

TSC Series:

• Temperature compensated and unamplified.

• Compensation makes it easier to integrate the sensor into a system by eliminating the need to calibrate the system over temperature and also offers reduced part-to-part variation.

• Compensated temperature range is 0 °C to 85 °C [-32 °F to 185 °F].

• Operating temperature range is -40 °C to 85 °C [-40 °F to 185 °F].

• Measures differential or gage pressures

The absolute versions have an internal vacuum reference and an output value proportional to absolute pressure. Differential versions allow measurement of pressure between two pressure ports. Gage versions are referenced to atmospheric pressure and provide an output proportional to pressure variations from atmosphere.

The TSC Series and NSC Series sensors are intended for use with non-corrosive, non-ionic gases, such as air. Port 1 can also be used for non-corrosive, non-ionic liquids on sensors rated above 60 mbar | 6 kPa | 1 psi.

The TSC and NSC Series offer numerous package styles and mounting options, making it easier for device manufacturers to integrate the product into their applications. These sensors offer infinite resolution on the pressure signal. Frequency response is also typically limited only by the end user's system. All products are designed and manufactured according to ISO 9001.

DIFFERENTIATION

Stability and reliability you can count on

• Industry-leading accuracy down to ±0.15 %FSS BFSL

• Port and housing options simplify integration

• Wide pressure range from

±2.5 mbar to ±10 bar,

±250 Pa to ±1 MPa,

±1 in H2O to ±150 psi

• Small package size

• Low power consumption

FEATURES

Industry-leading long-term stability

Even after long-term use and thermal extremes, these sensors perform substantially better relative to stability than any other pressure sensor available in the industry today:

• Minimizes system calibration and design needs and maximizes system performance

• Helps support system uptime by eliminating the need to service or replace the sensor during its application life

• Simplifies product integration

• Supports system uptime

Industry-leading accuracy

Extremely tight accuracy down to ±0.15 %FSS BFSL:

• Reduces software needed to correct system inaccuracies, minimizing system design time

• Supports system accuracy and warranty requirements

Industry-leading flexibility

• Modular, flexible design with numerous package styles, pressure ports, and options simplifies integration into the device manufacturer's application.

• Single side wet media allows the end customer to use one port of the sensor with condensing humidity or directly with non-corrosive liquid media

Insensitive to mounting orientationAllows flexibility of use within the application.

Small size

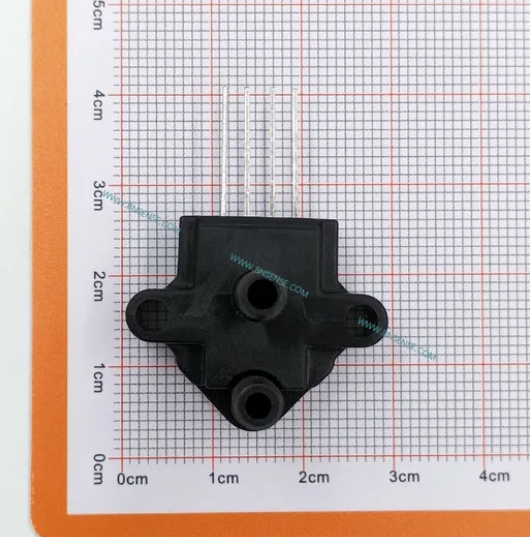

Miniature 10 mm x 10 mm [0.39 in x 0.39 in] package is very small when compared to most board mount pressure sensors:

• Occupies less area on the PCB

• Typically allows for easy placement on crowded PCBs or in small devices

Repeatability

Provides excellent repeatability, high accuracy and reliability under many demanding conditions

Supports lean manufacturing

• J-STD-020E MSL 2 with unlimited Storafe life when stored inside the moisture barrier bag

• System can be calibrated within one hour after reflow solder

• Compatible with modern lead-free and no-clean solder processes

Extremely low power consumption

• Operating supply voltage as low as 1.5 Vdc

• Reduces power consumption, provides extended battery life, and promotes energy efficiency

Absolute, differential and gage types

• Provides flexibility of use within the application

• Absolute type on NSC Series only

Pressure ranges from±2.5 Mbar to ±10 bar | ±250 Pa to ±1 MPa | ±1 inH2O to ±150 psi

Optimizes the customer's system performance by maximizing pressure resolution with more available pressure ranges

RoHS and ISO9001 compliance

APPLICATIONS

Medical

• Nebulizers

• Spirometers

• Patient monitoring equipment

• Therapeutic hospital beds

• Hospital gas supply

• Oxygen concentrators

• Blood analysis

• Gas chromatography

• Analytical instruments

Industrial

• Valves

• Pumps

• Actuators

• HVAC transmitters

• Automated pneumatic assembly Equipment

• Pneumatic operator control systems

• Industrial gas supply

• Barometry

• Gas chromatography

• Analytical instrument Sampling systems

Tech Specifications
