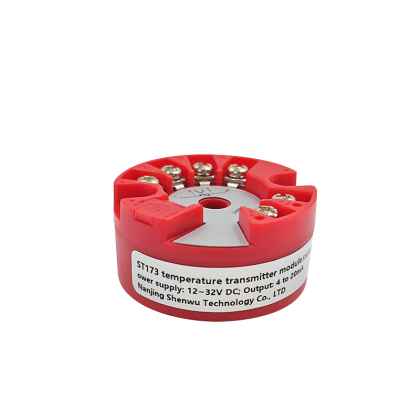

ST173 isolated temperature transmitter module
Details
1. Typical application:
Supports PT00/PT1000 resistors and 8 thermoelectric couplings
2. Main indicators:
Power supply voltage: 12~32VDC
Output type: 4 to 20mA
Collection stability: 0.01℃(RTD),0.1℃(E J K N T), 0.2℃(BRS)
Output accuracy: 0.1℃(RTD),0.5℃(E J K N T), 1℃(BRS)
Dimensions: Diameter 44mm, mounting hole spacing 33mm
