BNPS11 Pressure Sensor

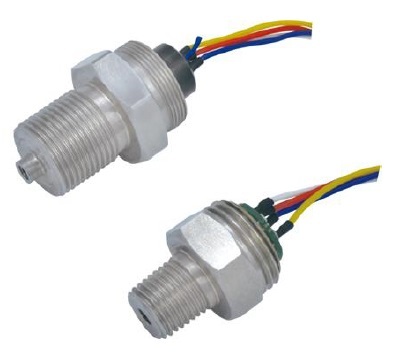

BNPS11 pressure sensor encapsulates the BNPC10 pressure core body in the workpiece with standard interface thread. Model 300 is installed on the 2088 standard shell through "300 turn 2088 connector", while model 400 can be directly installed on the 2088 standard shell for the convenience of the majority of users. The product is widely used in petroleum, chemical industry, metallurgy, aviation, aerospace, shipping, medical equipment, vehicles, refrigerator, compressor and other industries of process control and measurement.
Features:
1."O" ring seal
2.High performance, all solid state, corrosion resistance
3.High precision and stability
4.Strong anti-interference and long-term stability
5.Constant voltage source, constant current source power supply can be selected
6.Undertake special customized products
7.Warranty period: 1 year
Electrical parameters
| Scale range | -100kPa„0～10kPa„100MPa | ||||||
| Pressure type | Gauge pressure, absolute pressure, sealing pressure | ||||||
| Power supply | 1.5mA、10V | ||||||
| Zero output | ±2mV | ||||||
| Full output | 60～120mV（typical 100mV） | ||||||
| Input impedance | 2.5kΩ ～6kΩ | ||||||
| Compensated temperature range | -10℃～70℃（≥100kPa）；0℃～60℃（＜100kPa） | ||||||
| Operating temperature range | -40℃～125℃ | ||||||
| Storage temperature range | -40℃～125℃ | ||||||
| Zero temperature drift | ±1.5%FS（＠-10℃～70℃）；±1%FS（＠0℃～60℃） | ||||||
| Sensitivity drift | ±1.5%FS（＠-10℃～70℃）；±1%FS（＠0℃～60℃） | ||||||
| Pressure overload | 200%FS(Under 10MPa)；150%FS（Under 25MPa） | ||||||
| Mechanical vibration | 20g（20～5000HZ) | ||||||
| Impact | 100g（11ms） | ||||||
| Perfusion liquid | Silicone oil | ||||||
| Insulation resistance | 200MΩ /250VDC | ||||||
| Response time | ≤1ms（Rise to 90%FS） | ||||||
| Long-term stability | ±0.2%FS/year | ||||||
| Material | Shell stainless steel;Isolation diaphragm 316L | ||||||
| Medium compatible | Liquid and gas compatible with the diaphragm | ||||||
