2106B1201
Product Description

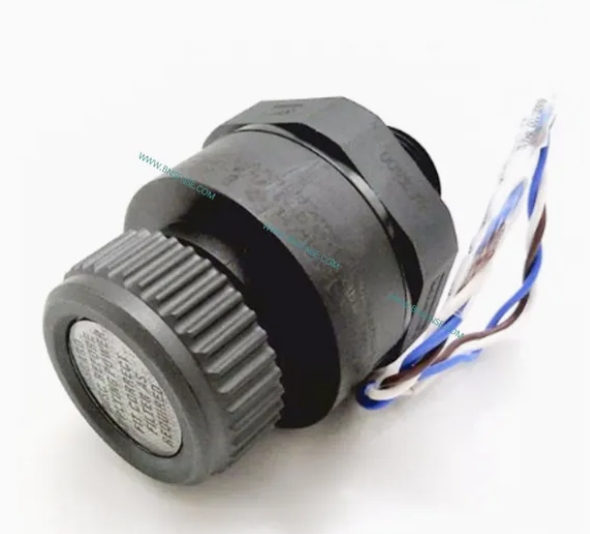

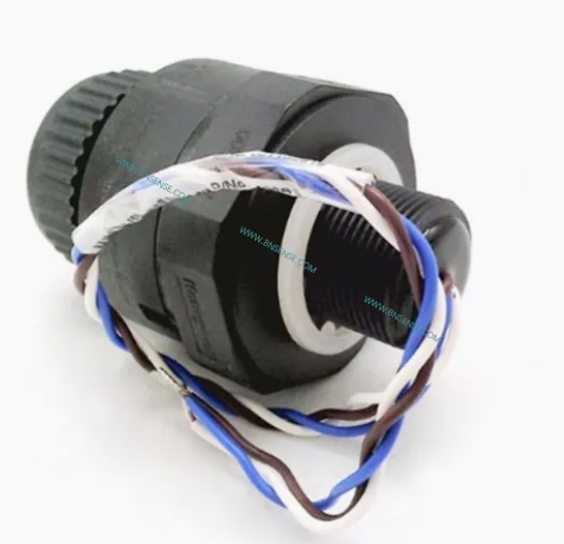

Sensepoint Gas DetectorThe Sensepoint range of Flammable, Toxic and Oxygen Gas Detectors offer users a high quality, low cost solution to their industrial gas monitoring needs.The Sensepoint range of Flammable, Toxic and Oxygen Gas Detectors offer users a high quality, low cost solution to their industrial gas monitoring needs. Installation in potentially explosive atmospheres is made by the use of a suitable Ex d or Ex e approved junction box. The industry standard outputs from Sensepoint are connected to either a choice of Honeywell Analytics controllers or 3rd party DCS/ PLC systems. Both flammable and toxic versions are certified to the latest ATEX/ IECEx safety and performance standards.
The flammable detector is available in either % LEL or PPM detection range versions and provides an industry standard mV bridge output. Typical life expectancy is greater than 5 years, after which the detector is simply replaced with a new one. The toxic detectors are supplied pre calibrated for easy installation and provide an industry standard 2 wire 4-20mA loop output. User connections are Ex d, while front end Intrinsic Safety (IS) design allows for easy exchange of the replaceable sensor while powered. IS design also removes the need for a sinter enabling very fast speed of response and detection of 'sticky' gases such as Chlorine and Ammonia.
Fit For Purpose
• Flammable, toxic and Oxygen versions available
• High performance, low cost
• Suitable for new and retro fit applications
Proven Sensor Technology
• SurecellTM electrochemical sensors
• Poison resistant catalytic bead
• Fast and reliable
• Typical 2 to 5 years operational life
ATEX/IECEx Certified
• Complies with the latest standards
• Hazardous area approval and performance
• IP65/67 for use in harsh environments
Easy to Use
• Factory set operation
• Simple to replace
• Minimal training required
Range of Accessories
• Weatherproof cap
• Flow adaptor
• Duct mounting kit
• Collecting cone
| Gas & Range | Flammable0-100% LEL | FlammablePPM (Typically0-10% LEL) | HydrogenSulphide (H2S)20/50/100ppm | CarbonMonoxide (CO)100/200/500ppm | Ammonia(NH3)50/1000ppm | Chlorine(Cl2)5/15ppm | Oxygen(O2)25% V / V | Hydrogen(H2)1000/10000ppm | Sulfur Dioxide(SO2)15/50ppm | Nitric Oxide(NO)100ppm | NitrogenDioxide (NO2)10ppm |
| Operating Temp | -40 to +80˚C1 | -30 to +65˚C | -25 to +50˚C | -20 to +50˚C | -20 to +40˚C | -20 to +50˚C | -15 to +40˚C | ||||
| Operating Humidity | Continuous: 20 to 90% RH (non-condensing). Intermittent: 10 to 99% RH (non-condensing) | ||||||||||
| Storage Conditions | 0 to 25˚C; 30 to 70% RH | 0 to 25˚C; 30 to 70% RH | |||||||||
| Operating Pressure | 90 to 110kPa | ||||||||||
| Warm-up Time | < 10 minutes | < 20 minutes | < 3 minutes | < 5 minutes | < 3 minutes | 12 hours | 1 hour | ||||
| Response Time | |||||||||||
| T20 | < 6 secs | < 5 secs | - | < 10 secs | < 3 secs | - | - | < 3 secs | < 15 secs | ||
| T50 | < 5 secs | < 15 secs | < 12 secs | < 10 secs | < 20 secs | < 5 secs | < 10 secs | < 10 secs | < 5 secs | < 30 secs | |
| T90 | < 10 secs | < 40 secs | < 30 secs | < 65 secs | < 105 secs | < 10 secs | < 45 secs | < 90 secs | < 30 secs | < 60 secs | |
| Supply | 200mA; 0.7W maximum | 18 to 30VDC; 0.9W maximum | |||||||||
| Signal Output | mV bridge | Loop powered 4-20mA | |||||||||
| Linearity | < 5% fsd or ±10% of reading | < 5% fsd | |||||||||
| Operating Life | 5 years (typical) | 2 years (typical) | 18 months (typical) | 1 year (typical) | 18 months (typical) | ||||||
| Storage Life | Typically, over 5 years when inoriginal sealed packaging | 6 months. | |||||||||
| Stability (zero) | |||||||||||
| with time* | < ±3% fsd / yr | < ±2% fsd / yr | |||||||||
| with temperature** | < ±1% fsd2 | < ±3% fsd | < ±5% fsd | < ±6% fsd | < ±2% fsd | < ±2% fsd | < ±5% fsd | ||||
| with humidity | < ±1% fsd | < ±10% fsd | < ±2% fsd | < ±10% fsd | < ±2% fsd | < ±2% fsd | < ±10% fsd | ||||
| Stability (span) | |||||||||||
| with time* | < ±3% fsd / yr | < ±2% fsd / yr | < ±4% fsd / yr | < ±20% fsd / yr | < 10% fsd / yr | < ±20% fsd / yr | < ±2% fsd / yr | ||||
| with temperature*** | < ±3% fsd | < ±8% fsd | < ±25% fsd | < ±20% fsd | < ±20% fsd | < 40% fsd | < ±10% fsd | < ±60% fsd | < ±15% fsd | < ±25% fsd | |
| with humidity | < ±2% fsd | < ±10% fsd | < ±2% fsd | < ±10% fsd | < ±2% fsd | < ±1% fsd | < ±2% fsd | < ±10% fsd | |||
| Weight | 190g | 185g | 205g | 185g | |||||||
| Construc. Materials | Polyphenylene Sulphide (PPS) | ||||||||||
| I.P. (NEMA) Rating | IP65 (standard), IP67 (with weather protection fitted) | ||||||||||
| Certification Details(ATEX/ IECEx) | II 2 GD Ex d IIC Gb T85ºCTamb -40ºC to +55ºC II 2 GD Ex d IIC Gb T100ºCTamb -40ºC to +70ºC II 2 GD Ex d IIC Gb T135ºCTamb -40ºC to +80ºC tb IIIC A21 Db IP67Baseefa08ATEX0265XIECEx BAS08.0068X | II 2 GD Ex d ia IIC T4 Gb Tamb -40ºC to +65ºC tb IIIC A21 IP67 T135ºC DbBaseefa08ATEX0263XIECEx BAS08.0070X | |||||||||
| Other Certifications | Russian: GOST | ||||||||||
| ApplicableStandards | This product complies with the relevant CE standards including: EMC to EN50270, Flammable sensor to EN60079-29-1 | ||||||||||
NOTES
1 High temp range version available -55 to +150˚C - See separate datasheet DS0303
2 Over temp range -20 to +55˚C
* = % of range (fsd) per year
** Over operating temperature range
*** = % of applied concentration
Ordering Information
| Accessories |
| 00780-A-0100 Term Hsg - Bartec DE1155 With Continuity Plate 1 x 25mm - 3 x 20mm Entries - ATEX Approved |
| 00780-A-0160 Right Angle Mounting Bracket For Ceiling Mounting |
| 02000-A-1635 Series 2000 Weather Housing Use With Toxic Sensor |
| 02000-A-1640 Series 2000 Weather Housing use With Flammable Sensor |
| 02000-A-1642 Series 2000 Collecting Cone Use With Flammable Sensor |
| 02000-A-1645 Series 2000 Calibration Flow Housing Assembly (Flam and Toxic) |
| 02000-A-3120 Series 2000 Flow Housing Assembly Plastic |
| 2106B1110 Catalytic Bridge To 4-20mA Converter |
| 2106B2114 Toxic Calibration Kit including Calibration Cover, Removal Tool, Potentiometer Adjustment Tool |
| 2106D2055 M36 / M40 Thread Adaptor |
| 225-262-138 Cable Gland And Caps, 20mm, Nylon |
| Spares |
| 2106B1545 O2 Electrochemical Cell Exchange Kit |
| 2106B1546 SO2 Electrochemical Cell Exchange Kit |
| 2106B1547 Cl2 Electrochemical Cell Exchange Kit |
| 2106B1548 CO Electrochemical Cell Exchange Kit |
| 2106B1549 H2S Electrochemical Cell Exchange Kit |
| 2106B1594 NO Electrochemical Cell Exchange Kit |
| 2106B1595 NH3 0-1000ppm Electrochemical Cell Exchange Kit |
| 2106B1596 NH3 0-50ppm Electrochemical Cell Exchange Kit |
| 2106B1597 H2 0-1000ppm Electrochemical Cell Exchange Kit |
| 2106B1598 H2 0-10000ppm Electrochemical Exchange Kit |
| 2106B1599 NO2 0-10ppm Electrochemical Exchange Kit |
| Calibration Equipment |
| Contact your local Honeywell Analytics representativefor details of suitable calibration equipment |
| Sensepoint Combustible |
| 2106B1200 Sensepoint 0-100% LEL Flammable Sensor M20 |
| 2106B1201 Sensepoint 0-100% LEL Flammable Sensor M25 |
| 2106B1202 Sensepoint 0-100% LEL Flammable Sensor M26 |
| 2106B1203 Sensepoint 0-100% LEL Flammable Sensor M26 (VQ1AB pellistor) |
| 2106B1204 Sensepoint 0-100% LEL Flammable Sensor ¾"NPT |
| 2106B1205 Sensepoint ppm (0-10% LEL) Flammable Sensor M20 |
| 2106B1209 Sensepoint ppm (0-10% LEL) Flammable Sensor ¾"NPT |
| Sensepoint Toxic |
| 2106B1400 Sensepoint H2S 0-20 ppm Toxic Sensor M20 |
| 2106B1401 Sensepoint H2S 0-50 ppm Toxic Sensor M20 |
| 2106B1402 Sensepoint H2S 0-100 ppm Toxic Sensor M20 |
| 2106B1500 Sensepoint H2S 0-20 ppm Toxic Sensor M25 |
| 2106B1501 Sensepoint H2S 0-50 ppm Toxic Sensor M25 |
| 2106B1502 Sensepoint H2S 0-100 ppm Toxic Sensor M25 |
| 2106B1700 Sensepoint H2S 0-20 ppm Toxic Sensor ¾"NPT |
| 2106B1701 Sensepoint H2S 0-50 ppm Toxic Sensor ¾"NPT |
| 2106B1702 Sensepoint H2S 0-100 ppm Toxic Sensor ¾"NPT |
| 2106B1405 Sensepoint CO 0-100 ppm Toxic Sensor M20 |
| 2106B1406 Sensepoint CO 0-200 ppm Toxic Sensor M20 |
| 2106B1407 Sensepoint CO 0-500 ppm Toxic Sensor M20 |
| 2106B1505 Sensepoint CO 0-100 ppm Toxic Sensor M25 |
| 2106B1506 Sensepoint CO 0-200 ppm Toxic Sensor M25 |
| 2106B1507 Sensepoint CO 0-500 ppm Toxic Sensor M25 |
| 2106B1705 Sensepoint CO 0-100 ppm Toxic Sensor ¾"NPT |
| 2106B1706 Sensepoint CO 0-200 ppm Toxic Sensor ¾"NPT |
| 2106B1707 Sensepoint CO 0-500 ppm Toxic Sensor ¾"NPT |
| 2106B1410 Sensepoint Cl2 0-5 ppm Toxic Sensor M20 |
| 2106B1411 Sensepoint Cl2 0-15 ppm Toxic Sensor M20 |
| 2106B1510 Sensepoint Cl2 0-5 ppm Toxic Sensor M25 |
| 2106B1511 Sensepoint Cl2 0-15 ppm Toxic Sensor M25 |
| 2106B1711 Sensepoint Cl2 0-15 ppm Toxic Sensor ¾"NPT |
| 2106B1413 Sensepoint NH3 0-50 ppm Toxic Sensor M20 |
| 2106B1414 Sensepoint NH3 0-1000 ppm Toxic Sensor M20 |
| 2106B1415 Sensepoint NH3 0-100 ppm Toxic Sensor M20 |
| 2106B1513 Sensepoint NH3 0-50 ppm Toxic Sensor M25 |
| 2106B1514 Sensepoint NH3 0-1000 ppm Toxic Sensor M25 |
| 2106B1515 Sensepoint NH3 0-100 ppm Toxic Sensor M25 |
| 2106B1713 Sensepoint NH3 0-50 ppm Toxic Sensor ¾"NPT |
| 2106B1714 Sensepoint NH3 0-1000 ppm Toxic Sensor ¾"NPT |
| 2106B1715 Sensepoint NH3 0-100 ppm Toxic Sensor ¾"NPT |
| 2106B1416 Sensepoint H2 0-1000 ppm Toxic Sensor M20 |
| 2106B1417 Sensepoint H2 0-10000 ppm Toxic Sensor M20 |
| 2106B1516 Sensepoint H2 0-1000 ppm Toxic Sensor M25 |
| 2106B1517 Sensepoint H2 0-10000 ppm Toxic Sensor M25 |
| 2106B1716 Sensepoint H2 0-1000 ppm Toxic Sensor ¾"NPT |
| 2106B1717 Sensepoint H2 0-10000 ppm Toxic Sensor ¾"NPT |
| 2106B1418 Sensepoint NO 0-100 ppm Toxic Sensor M20 |
| 2106B1518 Sensepoint NO 0-100 ppm Toxic Sensor M25 |
| 2106B1718 Sensepoint NO 0-100 ppm Toxic Sensor ¾"NPT |
| 2106B1420 Sensepoint SO2 0-15 ppm Toxic Sensor M20 |
| 2106B1421 Sensepoint SO2 0-50 ppm Toxic Sensor M20 |
| 2106B1520 Sensepoint SO2 0-15 ppm Toxic Sensor M25 |
| 2106B1521 Sensepoint SO2 0-50 ppm Toxic Sensor M25 |
| 2106B1720 Sensepoint SO2 0-15 ppm Toxic Sensor ¾"NPT |
| 2106B1721 Sensepoint SO2 0-50 ppm Toxic Sensor ¾"NPT |
| 2106B1422 Sensepoint NO2 0-10 ppm Toxic Sensor M20 |
| 2106B1522 Sensepoint NO2 0-10 ppm Toxic Sensor M25 |
| 2106B1722 Sensepoint NO2 0-10 ppm Toxic Sensor ¾"NPT |
| 2106B1430 Sensepoint O2 25% V/V Toxic Sensor M20 |
| 2106B1530 Sensepoint O2 25% V/V Toxic Sensor M25 |
| 2106B1730 Sensepoint O2 25% V/V Toxic Sensor ¾"NPT |
